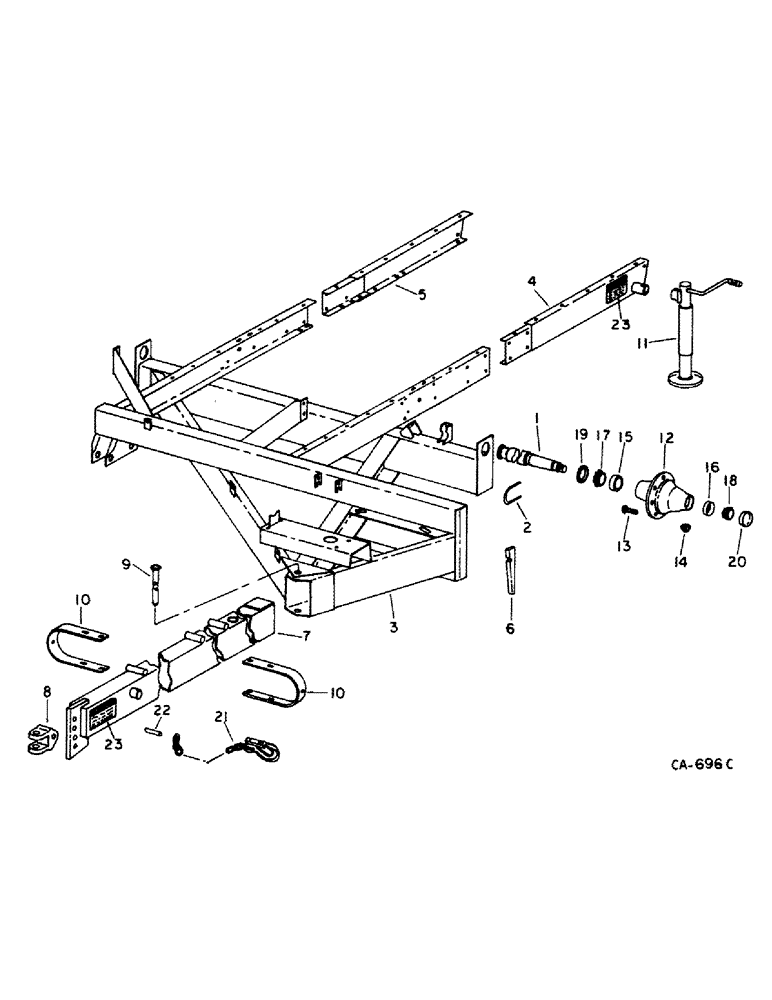

Запчасти Case IH 914 (09-1) - FRAME, MAIN FRAME, AXLE, TONGUE HITCH AND HOIST (12) - FRAME

1

169583C1

SPINDLE, main axle

2шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14ns slt hex

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1.030 x 2.24 x 1/4

1шт.

2

169584C1

BOLT

spindle support

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

179808C2

FRAME ASSY, main

1шт.

4

184557C91

CHANNEL ASSY, main sill rear left, inlcudes ref. no. 23

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

5

169577C1

CHANNEL ASSY, main sill rear right

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

169582C1

WEDGE, tongue locating

1шт.

517843R1

COTTER PIN

PIN, 3/16 qa cot

1шт.

7

184558C91

TOW BAR

TONGUE ASSY, hitch, includes ref. no. 23

1шт.

8

169594C1

CLEVIS

hitch

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

24581R1

PIN

1 x 3-1/2 std-hd

1шт.

9

169595C11

PIN ASSY, tongue pivot

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

10

155525C1

CHANNEL, wheel stop

2шт.

15386R1

BOLT, 1/2 x 8-1/2 sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

11

174830C1

JACK

HOIST ASSY, lifting jack

1шт.

12

169596C91

HUB ASSY, main wheel, includes ref. nos. 13 thru 16

2шт.

13

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

main wheel hub

16шт.

14

554480R1

WHEEL NUT

5/8-18NF - wheel bolt

16шт.

15

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP, main wheel hub inner bearing

2шт.

16

663558R1

BEARING CUP

CUP, main wheel hub outer

2шт.

17

659458R91

ROLLER BEARING

CONE, main wheel hub inner

2шт.

18

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, main wheel outer

2шт.

19

358922C91

OIL SEAL

main wheel hub inner brg oil

2шт.

20

560950R1

HUB CAP

CAP, main wheel hub

2шт.

21

63506C2

CHAIN (CE)

CHAIN ASSY, safety

1шт.

22

608028R1

SPACER, 1-1/4 x 13/16 x stg pipe

1шт.

21613R1

BOLT,Hex, 1" - 8 x 3 3/4", Gr 5

1 x 3-3/4 hex-hd

1шт.

9849633

NUT,1"-8, G5

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

27759R1

WASHER

1.03 x 3 x .22

1шт.

23

184544C1

PRODUCT GRAPHIC

combine instruction

2шт.
