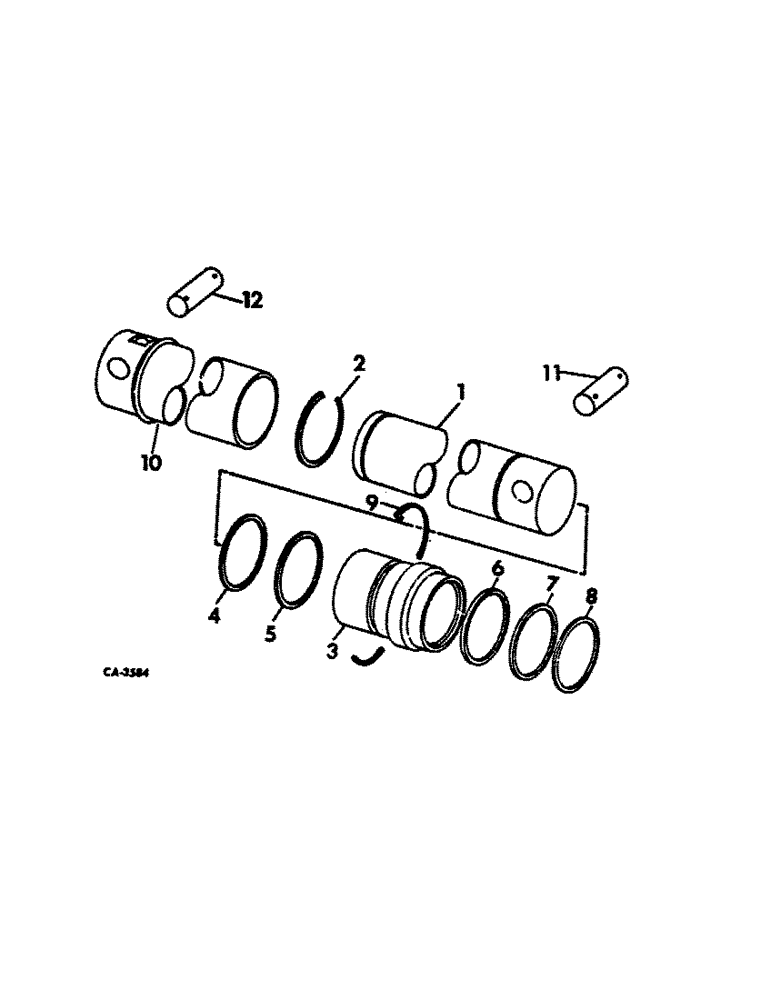

Запчасти Case IH 914 (10-2) - HYDRAULICS, HEADER LIFT CYLINDER, OPTIONAL FOR 160417C91 CYLINDER (07) - HYDRAULICS

545705R91

NO LONGER SERVICED

CYLINDER ASSY, header lift, optional for 160417C91 cylinder, includes ref. nos. 1 thru 10

1шт.

1

545709R1

ROD

poston

1шт.

2

545710R1

STOP

poston rod

1шт.

3

545711R1

HEAD

front

1шт.

4

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 x 3/32

1шт.

5

545712R1

WASHER

back-up static

1шт.

6

381082R1

O-RING,2.225" ID x 0.21" Width

2-1/4 x 2-5/8 x 3/16

1шт.

7

381083R2

BACK-UP RING

WASHER, o-ring back-up

1шт.

8

545713R1

WIPER SEAL

WIPER, piston rod

1шт.

9

545714R1

RETAINING WIRE

retaining

1шт.

10

545706R1

SPARE PART

BODY ASSY

1шт.

11

574322R1

PIN, lift cylinder front, serial no. 19000 and below

1шт.

137308

DRIVEN PULLEY,1/4" x 2 1/2"

Split (Cotter), 1/4" x 2 1/2"

1шт.

12

164533C1

PIN

lift cylinder, 1 for serial no. 19000 and below, 2 for serial no. 19001 and above

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

545715R91

KIT

ASSY, repair, consists of

1шт.

381082R1

O-RING,2.225" ID x 0.21" Width

2-1/4 x 2-5/8 x 3/16

1шт.

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 x 3/32

1шт.

545714R1

RETAINING WIRE

retaining

1шт.

545710R1

STOP

piston rod

1шт.

381083R2

BACK-UP RING

WASHER, backup

1шт.

545712R1

WASHER

backup

1шт.

545713R1

WIPER SEAL

WIPER, piston rod

1шт.
