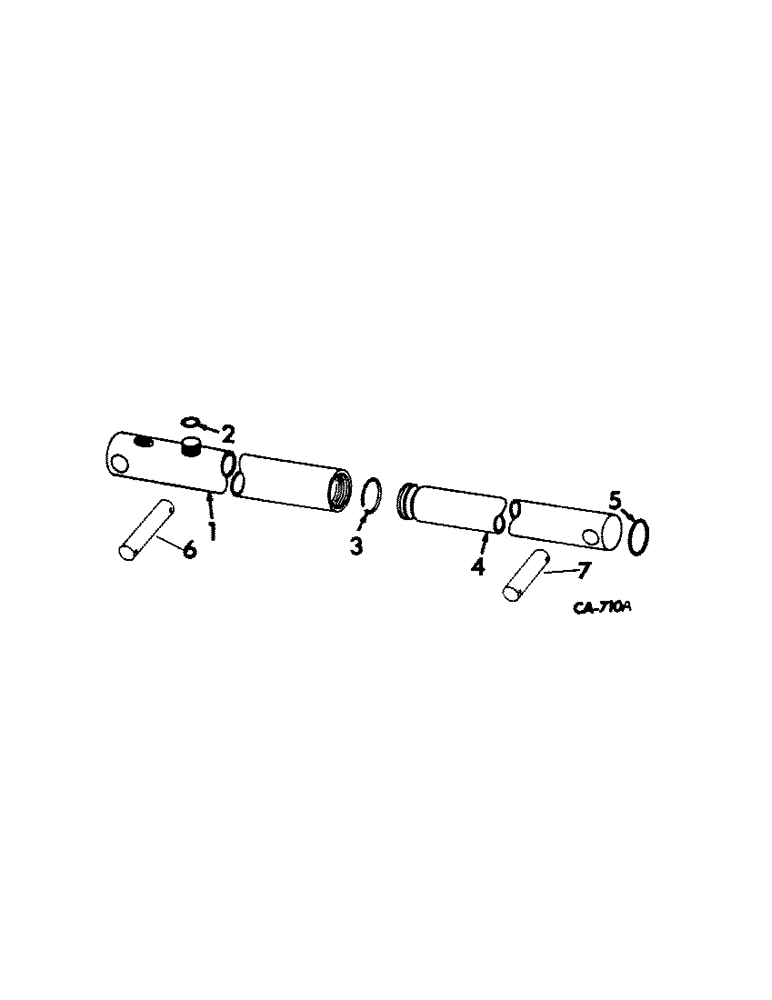

Запчасти Case IH 914 (10-2[1]) - HYDRAULICS, OPTIONAL FOR 545705R91 (07) - HYDRAULICS

160417C91

CYLINDER

ASSY, header lift, optional for 545705R91 cylinder, includes ref. nos. 1 thru 5

1шт.

1

168041C1

TUBE ASSY.

BARREL ASSY

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/32 x 41/64 ID

1шт.

3

631621R1

RING

.118 x 1.976 ID

1шт.

4

168042C1

ROD, piston

1шт.

5

21597R1

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

3/16 x 2-1/4 ID

1шт.

6

164533C1

PIN

lift cylinder, 1 for serial no. 19000 and below, 2 for serial no. 19001 above

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

7

574322R1

PIN, lift cylinder front, serial no. 19000 and below

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Split (Cotter), 1/4" x 2 1/2"

1шт.

167884C91

SEAL KIT

seal repair, consists of

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/32 x 41/64 ID

1шт.

21597R1

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

3/16 x 2-1/4 ID ring, locking, seal, washer, backup

1шт.
