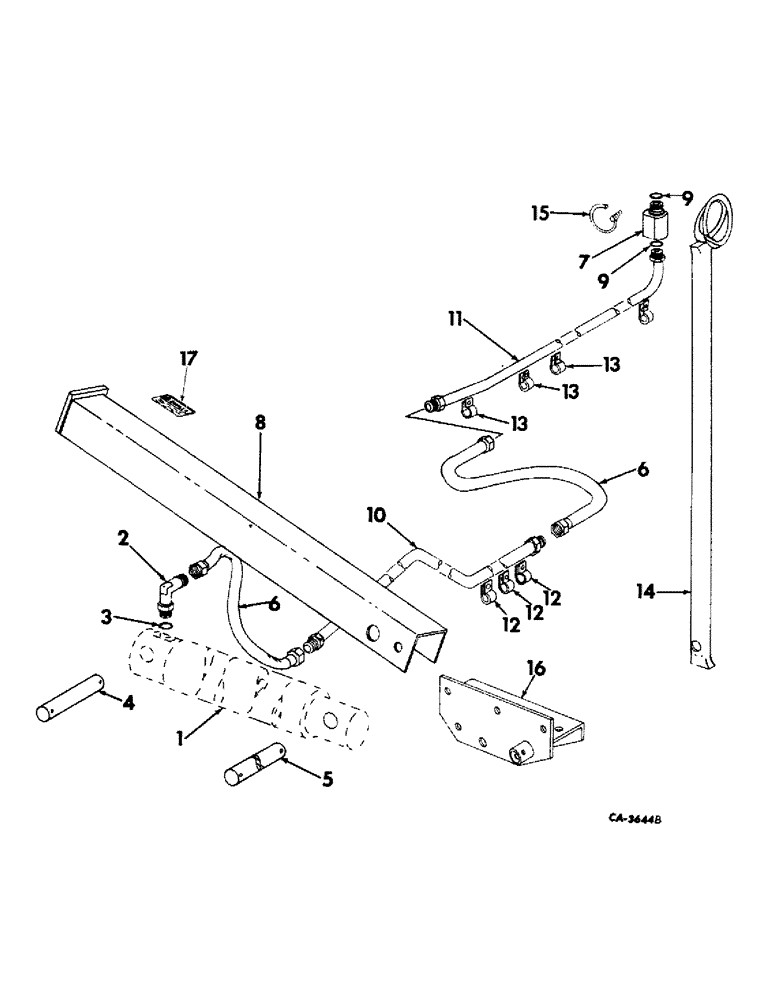

Запчасти Case IH 914 (10-1) - HYDRAULICS, HEADER HYDRAULIC LIFT (07) - HYDRAULICS

1

CYLINDER ASSY, header lift, refer to this group under header lift cylinders

1шт.

2

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd flared tube

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

lift cyl elbow

1шт.

4

164533C1

PIN

lift cylinder, 1 for serial no. 19000 and below, 2 for serial no. 19001 and above

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

5

574322R1

PIN, lift cyl front, serial no. 19000 and below

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Split (Cotter), 1/4" x 2 1/2"

2шт.

6

150885C91

HOSE,0.38" ID x 25.00", SAE 100R1

Hydraulic Lift, 25 in. 0.38" ID x 25.00", SAE 100R1

2шт.

7

175756C1

VALVE

ASSY, restrictor

1шт.

8

180565C91

CHANNEL ASSY, lift cylinder locking, includes ref. no.17

1шт.

22808R1

HEADED PIN,1/2" x 4 1/4"

PIN, 1/2 x 4-1/4 C-Z std-hd

1шт.

520175R1

CLIP

PIN, quick attachable cot

1шт.

9

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

restrictor valve

2шт.

10

169518C1

TUBE ASSY, lift cross

1шт.

11

169519C1

TUBE ASSY, lift

1шт.

12

587501R2

CLAMP

hyd tube

3шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

315411R1

CLIP

CLAMP, hyd tube

5шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

169521C1

BAR ASSY, hyd hose support

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

15

702093C1

CABLE TIE

TIE, hyd hose self locking

2шт.

16

179848C1

CLEVIS ASSY, lift bracket

1шт.

17

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

170714C1

DECAL

PRODUCT GRAPHIC, safety lock instr.

1шт.
