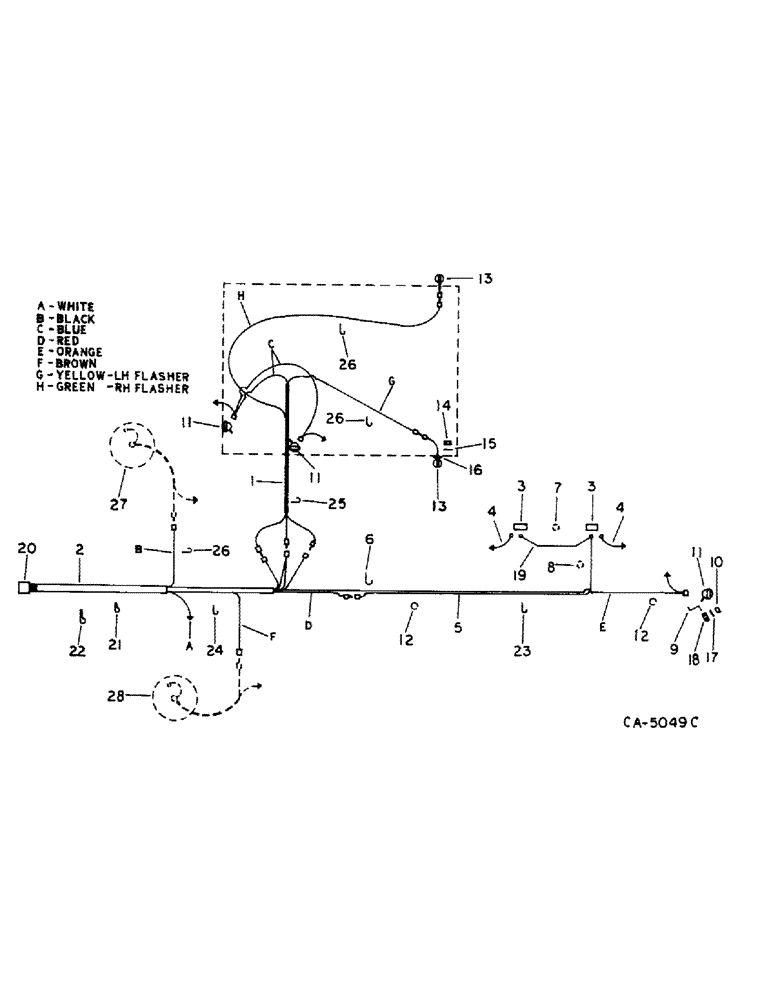

Запчасти Case IH 914 (08-5) - ELECTRICAL, WIRING DIAGRAM, SEPARATOR PARTS, SERIAL NUMBER 19001 AND ABOVE (06) - ELECTRICAL

1

189017C1

HARNESS ASSY, grain tank

1шт.

2

189018C91

HARNESS ASSY, main, includes ref. no 20

1шт.

3

SWITCH, warning horn, refer to group 20 under straw chopper

2шт.

4

167580C91

CABLE, micro switch to ground, 2.5 in., serial no. 30000 and below

2шт.

4

175008C1

CABLE ASSY.

CABLE, micro switch to ground, 4.0 in, serial no. 30001 and above

2шт.

5

174497C1

CABLE

engine to straw chopper micro switch, 168 in.

1шт.

6

365584R1

CLIP

straw chopper, Serial Range: front-rear

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

7

GROMMET, no. 4 diagonal cut, refer to group 20 under straw chopper

2шт.

8

GROMMET, no.3 diagonal cut, refer to group 20 under separator hood

3шт.

9

561915R1

BRACKET

light mounting

3шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

178556

WASHER,Ext-Int Tooth, 7/16"

3/8 znd ext-int lock

1шт.

10

49069D

SPACER

light mounting

3шт.

11

391005R91

HEADLIGHT

LIGHT ASSY, grain tank and tail

3шт.

12

117973

GROMMET,5/16" ID x 1 3/8" x .062", Diag Cut

5/16 dia. cut-rubber

2шт.

13

67538C92

HEADLIGHT

LIGHT ASSY, warning

2шт.

14

120371

NUT,1/2"-20, G5

2шт.

15

178591

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, 1/2 int-ext tooth lock

2шт.

16

394262R1

WASHER

lamp

2шт.

17

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

18

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

19

174495C2

CABLE, straw chopper front to rear micro switch, 69 in.

1шт.

20

483509C1

PLUG

ASSY, 7 pole

1шт.

21

567895R2

CLIP, cable

2шт.

21

447266R91

CLIP, cable

2шт.

22

587503R1

CLIP. cable

1шт.

23

366460R1

CABLE CLIP

CLIP, cable

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

24

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP, cable

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

25

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable

1шт.

26

362127R1

CLIP

cable

14шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

27

CLUTCH, feeder, refer to group 33 under feeder drive and electric clutch

1шт.

28

CLUTCH, unloader auger drive, refer to group 26 under grain tank unloader auger drive

1шт.
