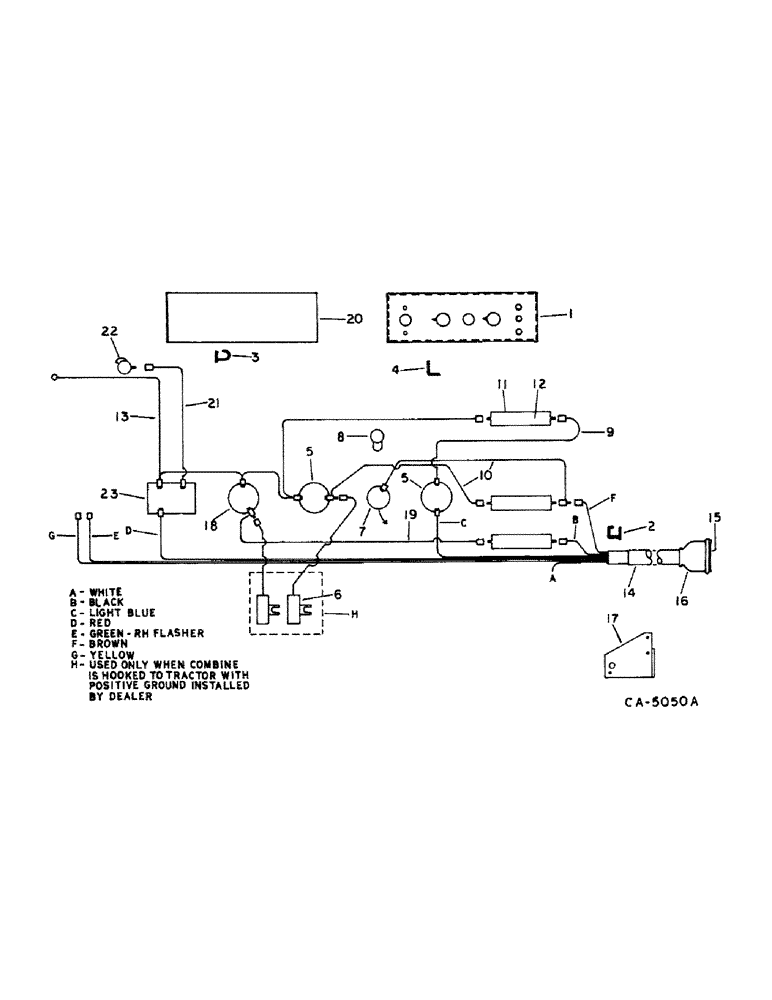

Запчасти Case IH 914 (08-3) - ELECTRICAL, WIRING DIAGRAM, FOR COMBINES WITH TRACTORS OTHER THAN 86 SERIES, S/N 19001 AND ABOVE (06) - ELECTRICAL

1

197566C2

BOX ASSY, switch

1шт.

2

169851C1

GROMMET

BUSHING, switch box rear reinforcement

1шт.

3

169852C1

BUSHING, switch box front reinforcement

1шт.

4

164056C1

SUPPORT, switch box

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

5

394771R92

SWITCH

ASSY, unloader control and light

2шт.

6

164030C91

CONDENSOR, unloader clutch, used only when combine is hooked to a tractor with positive ground electrical system

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt pan hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

392441R91

LIGHT

warning

1шт.

19302R1

NUT

10-24 hex.

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

8

9412348

BULB,C2B, #257, 14V

warning light flasher

1шт.

9

164423C91

CABLE ASSY, light assy, light switch to fuse, 6 in.

1шт.

19302R1

NUT

10-24 znd hex

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

10

164051C91

CABLE, unloader switch

2шт.

11

376852R91

HOUSING

ASSY, fuse

3шт.

12

117142

FUSE,10 Amp, Type 3AG

10 amp.

3шт.

13

197573C2

CABLE ASSY, main power

1шт.

14

197563C91

HARNESS ASSY, socket to box, includes Ref. nos. 15 and 16

1шт.

15

103366R92

SOCKET, 7 pole

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 znp slt-truss-hd

1шт.

16

760995C1

BOOT

CAP, socket

1шт.

17

197564C1

SUPPORT

ASSY, socket

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

165466R91

SWITCH

ASSY, feeder clutch control

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z pan hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

164044C91

CABLE, feeder switch to fuse, 8 in.

1шт.

20

169849C2

DOOR, switch box

1шт.

24231R1

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1/2"

SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2"

1шт.

21

169991C1

CABLE

ASSY, relay to horn, 76 in.

1шт.

22

166166R91

HORN

ASSY, straw chopper warning

1шт.

23

241120R91

RELAY

ASSY, straw chopper warning horn

1шт.
