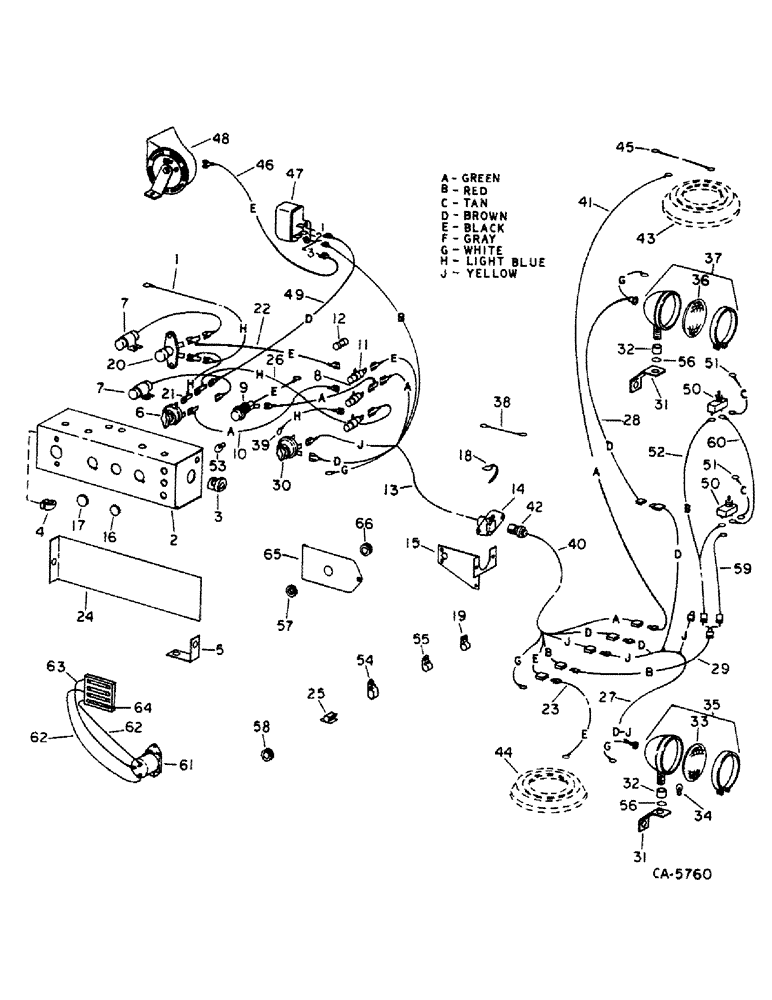

Запчасти Case IH 914 (08-01) - ELECTRICAL, WIRING DIAGRAM, SERIAL NUMBER 19000 AND BELOW (06) - ELECTRICAL

180487C92

CONTROL

PANEL, electrical, parts accessory, for 86 series tractor includes ref. nos. 1 thru 7, 9 thru 17, 20, 21, 22, 24, 30, 47, 48, 49, 53 and 61 thru 68

1шт.

1

164045C91

CABLE, ign switch to feeder clutch control switch

1шт.

2

169843C1

BOX ASSY, switch

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

3

169851C1

GROMMET

BUSHING, switch box rear reinforcement

1шт.

4

169852C1

BUSHING, switch box front reinforcement

1шт.

5

164056C1

SUPPORT, switch box

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

6

394771R92

SWITCH

ASSY, unloader control

1шт.

7

164030C91

CONDENSOR, unloader clutch, used only when combine is hooked to a tractor with positive ground electrical system

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt pan hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

164050C91

CABLE, unloader, Serial Range: switch-light

1шт.

9

392441R91

LIGHT

warning

1шт.

19302R1

NUT

10-24 hex

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

10

164051C91

CABLE, unloader, Serial Range: switch-fuse

2шт.

11

376852R91

HOUSING

ASSY, fuse

3шт.

12

148369

FUSE,6 Amp, Type 3AG

6 amp

2шт.

12

117142

FUSE,10 Amp, Type 3AG

10 amp

3шт.

13

169845C92

CABLE ASSY, Serial Range: fuse-socket

1шт.

14

103654R91

SOCKET

6 pole

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 znp p/hds mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

164053C91

SUPPORT ASSY, socket

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

1шт.

16

142016

PLUG

.500 dia-button-switch box

2шт.

17

454163

HOLE PLUG BUTTON,25/32"

PLUG, .781 dia-button-switch box

1шт.

18

702093C1

CABLE TIE

TIE, self locking cable

6шт.

19

589980R2

CLIP

CLAMP, control wire, 3/8 in. dia.

7шт.

19

587501R2

CLAMP

control wire, 1/2 in. dia.

7шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

1/4 x 1/2 C-Z slt pan hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

165466R91

SWITCH

ASSY, feeder clutch control

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z pan hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

164032C91

CABLE, feeder to unloader clutch, 6 in.

1шт.

22

164044C91

CABLE, feeder switch to fuse, 8 in.

1шт.

23

169848C91

CABLE, feeder clutch to frame, 85 in.

1шт.

24

169849C2

DOOR, switch box

1шт.

24213R1

SCREW, no. 8 x 1/2 slt pan-hd mach

1шт.

25

167572C1

CLIP, cable, 3/16 in. dia.

6шт.

25

169850C1

CLIP

cable, adhesive back, 5/8 in. dia

11шт.

26

164422C91

CABLE

unloader to light fuse, 6 in.

1шт.

27

169993C91

CABLE, frame to tail light

1шт.

28

169994C91

CABLE, grain tank light

1шт.

29

169990C1

CABLE ASSY, straw chopper

1шт.

30

169995C91

SWITCH

ASSY, light

1шт.

31

561915R1

BRACKET

light mounting

3шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

178556

WASHER,Ext-Int Tooth, 7/16"

3/8 znd ext-int lock

2шт.

32

49069D

SPACER

light mounting

3шт.

33

371461R91

LENS

UNIT ASSY, sealed beam tail light

1шт.

34

455490

BULB,C-6, #1003, 12V, .94W

light

1шт.

35

387729R91

LIGHT

ASSY, tail

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

36

371443R91

LAMP BASE

UNIT ASSY, sealed beam

2шт.

37

391005R91

HEADLIGHT

LIGHT ASSY, grain tank

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

38

165004C91

CABLE, grain tank to ext ground, 6 in.

1шт.

39

169996C1

CABLE

ASSY, fuse to light switch, 6 in.

1шт.

40

169846C91

CABLE, plug to frame, 300 in.

1шт.

41

179801C1

CABLE, frame to unloader, 26 in.

1шт.

42

171698C1

PLUG

ASSY, 6 pole

1шт.

43

FIELD ASSY, unloader clutch, refer to group 26 under grain tank unloader auger drive

1шт.

44

FIELD ASSY, feeder drive clutch, refer to group 33 under feeder drive

1шт.

45

173842C91

CABLE ASSY, Serial Range: clutch-ground

1шт.

46

169991C1

CABLE

ASSY, relay to horn, 76 in.

1шт.

47

241120R91

RELAY

ASSY, horn

1шт.

48

166166R91

HORN

ASSY, warning

1шт.

49

164423C91

CABLE ASSY, unloader switch to relay, 6 in.

1шт.

50

574649R91

SWITCH

ASSY, warning horn

2шт.

51

167580C91

CABLE ASSY, micro, Serial Range: switch-ground

2шт.

52

162474C91

CABLE ASSY, micro, Serial Range: switch-horn

1шт.

53

9412348

BULB,C2B, #257, 14V

warning light flasher

1шт.

54

400505R1

CLAMP

CLIP, plug to frame cable

1шт.

55

362127R1

CLIP

cable, 7/32 in. dia.

2шт.

55

366460R1

CABLE CLIP

CLIP, wire, 1/4 in. dia.

1шт.

56

936476R1

SQ HOLE WASHER

lamp spacer

2шт.

57

167955C2

SEAL

PAD, wire tube seal

1шт.

58

117973

GROMMET,5/16" ID x 1 3/8" x .062", Diag Cut

5/16 dia cut rubber

2шт.

59

174497C1

CABLE

ASSY, relay to straw chopper micro switch, 192 in.

1шт.

60

174495C1

CABLE, straw chopper front to rear micro switch, 69 in.

1шт.

61

107655C1

SOLENOID SWITCH

SWITCH ASSY, magnetic solenoid, for 86 series tractors

1шт.

62

111322C1

CABLE

ASSEMBLY, for 86 series tractors

1шт.

63

111323C1

CABLE

ASSEMBLY, for 86 series tractors

1шт.

64

223-31

FUSE,10 Amp, Type 3AG

30 amp, for 86 series tractors

1шт.

65

185572C1

SUPPORT, inner trim cover, for 86 series tractors

1шт.

66

127979

GROMMET,3/4" ID x 1 3/8" x .062", Diag Cut

GROMMER, rubber, for 86 series tractors

1шт.
