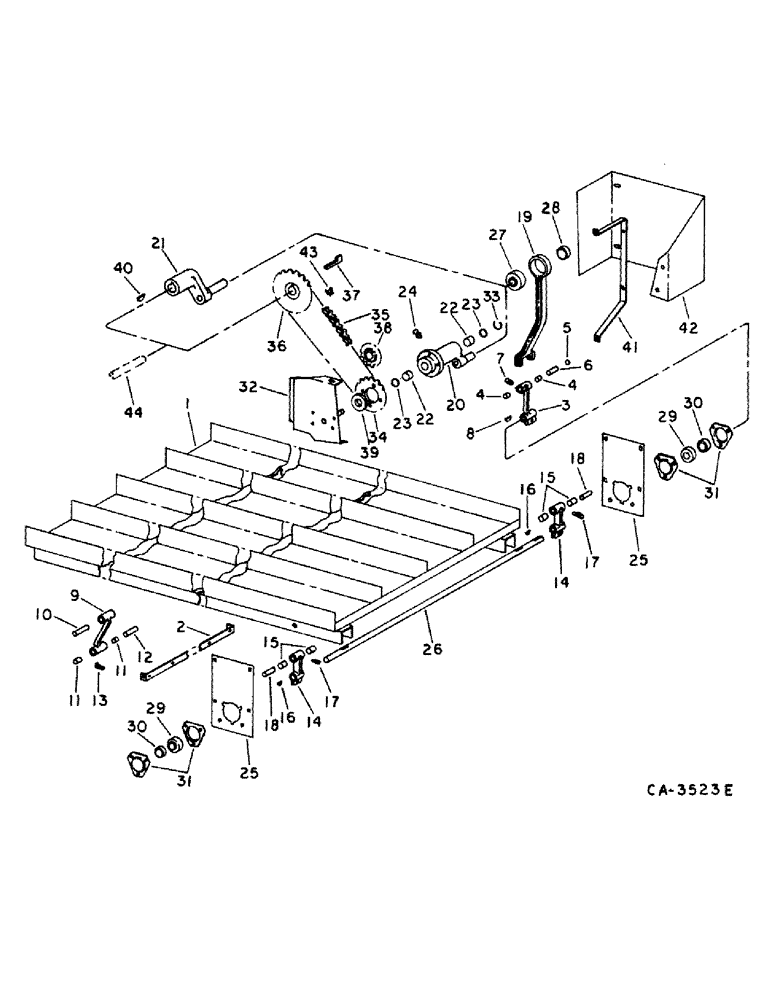

Запчасти Case IH 914 (22-3) - STRAW WALKER, STRAW WALKER RETURN PAN AND DRIVE Straw Walkers
№
Артикул
Название
Примечание
Количество
1
177269C1
PAN
ASSY, straw walker return
1шт.
2
179119C1
BAR, return pan tie reinforcement
1шт.
174856C1
BOLT,Hex Serr, 5/16" - 18 x 1/2"
5/16 x 1/2 hex-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 znd flange lock
1шт.
3
160048C11
LEVER
ARM ASSY, straw walker return pan crank, includes ref. nos. 4 and 5
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
SCREW, 3/8 x 1-1/4 C-Z hex-hd cap
1шт.
180190
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
SCREW, 1/2 x 3 hex-hd cap
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
4
276574R91
NEEDLE BEARING
ASSY, straw walker return pan crank arm
2шт.
5
459035R91
SEAL
SEAL, straw walker return pan crank arm oil
2шт.
6
160047C1
BUSHING
SLEEVE, straw walker return pan crank arm
1шт.
7
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4-28 str lub
1шт.
8
88907
WOODRUFF KEY,#B, 5/16" x 1", HT
5/16 x 1 Woodruff
1шт.
9
160040C11
ARM
ASSY, straw walker return pan front hanger, includes ref. nos 10 and 11
2шт.
180190
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
BOLT, 1/2 x 3 hex-hd
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
SCREW, 1/2 x 3-1/4 hex-hd cap
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
178374R1
WASHER
17/32 x 1-1/4 x 16 ga
1шт.
10
160041C1
COMPOSITE RING
BUSHING, straw walker return pan front hanger arm
2шт.
11
BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L
straw walker return pan front hanger arm
4шт.
12
160047C1
BUSHING
SLEEVE, straw walker return pan front hanger arm
2шт.
13
16964R91
FITTING
1/4-28 90 deg angle lub
2шт.
14
160049C11
ARM
ASSY, straw walker return pan rear hanger, includes ref. no. 15
2шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
SCREW, 3/8 x 1-1/4 hex-hd cap
1шт.
180190
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
SCREW, 1/2 x 3 C-Z hex-hd cap
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
16
124554
O-RING
5/16 x 1 Woodruff
2шт.
17
16964R91
FITTING
1/4-28 90 deg angle lub
2шт.
18
160047C1
BUSHING
SLEEVE, straw walker return pan rear hanger arm
2шт.
19
197783C1
ARM
straw walker return pan dr pitman, serial no. 19001 and above
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
180192
BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5
SCREW, 1/2 x 3-1/2 C-Z hex-hd cap
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
19
160050C1
ARM
straw rack return pan drive pitman, serial no. 8001 thru 19000
1шт.
20
177276C91
CRANK
ASSY, straw rack return pan hub, serial no. 8001 thru 19000
1шт.
21
197780C91
ARM
CRANK ASSY, straw walker return pan hub, serial no. 19001 and above, includes ref. nos. 21 and 22
1шт.
124824
NUT,Hex, 5/16" - 18
5/16 hex jam
1шт.
576517R1
LOCK PIN,1/4" x 1 1/2", Slotted
Pin, 1/4" x 1 1/2", Slotted
1шт.
178758
SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt
SCREW, 5/16 x 3/4 sq-hd
1шт.
22
453129R91
NEEDLE BEARING
BEARING ASSY, return pan drive, serial no. 19000 and below
2шт.
23
564808R91
WIPER
SEAL, return pan crank oil, serial no. 19000 and below
2шт.
24
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4-28NS str lub, serial no. 19000 and below
1шт.
25
177275C1
SUPPORT, straw walker return pan brg
2шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 sq-nk crg
1шт.
18684R1
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 sq-nk crg
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
26
177274C1
SHAFT, straw rack return pan, serial no. 8001 thru 19000
1шт.
26
197608C1
SHAFT, straw walker return pan, serial no. 19001 and above
1шт.
27
455959R92
BEARING ASSY,28.57mm ID x 62mm OD x 18mm W
ASSY, straw walker return pan drive pitman
1шт.
28
557115R11
COLLAR
COLLAR W/SET SCREW, lkg
1шт.
29
160055C91
BALL BEARING,1.127" ID x 2.441" OD x 1.013"
BEARING ASSY, straw walker return pan crankshaft
2шт.
30
572224R11
COLLAR
W/SET SCREW, lkg
2шт.
31
571425R1
FLANGED BEARING
straw walker return pan crankshaft bearing
4шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
32
177278C1
SUPPORT ASSY.
SUPPORT ASSY, return pan drive pivot, serial no. 19000 and below
1шт.
33
454319R1
RING
1.125 shaft ext. retaining return pan drive pivot shaft, serial no. 19000 and below
1шт.
34
177285C1
SPROCKET ASSY.
SPROCKET, return pan driven, 18 T, serial no. 19000 and below
1шт.
34
196204C1
SPROCKET ASSY.
SPROCKET, return pan driven, 20 T, fast speed, parts accessory, serial nos. 8000 thru 19000
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 znd hex-hd mach
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
23041R1
WASHER
1.16 x 1.50 x .06 znd
1шт.
21716R1
WASHER
1.16 x 1.75 x .06 znd
1шт.
35
CHAIN ASSY, return pan drive, serial no. 19000 and below, use 61 links from a 10 ft roll marked 1791D and 1 connecting link 1310D
1шт.
36
177284C1
SPROCKET ASSY.
SPROCKET ASSY, return pan driver, 28 T, serial no. 19000 and below
1шт.
37
Q81
KEY,Gib, 3/8" Sq x 1 3/4"
3/8 x 1-3/4 gib, serial no. 19000 and below
1шт.
38
631905R91
SPROCKET
return pan dr chain idler, 17 T, serial no. 19000 and below
1шт.
18722R1
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2
BOLT, 5/8 x 2-1/2 znd sq-nk crg
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
22858R1
SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole
21/32 x 1-1/4 x 12 ga znd
1шт.
608701R1
WASHER
21/32 x 1-1/4 x 16 ga znd
1шт.
39
179999C1
SPACER
return pan dr hub, serial no. 19000 and below
1шт.
40
117991
WOODRUFF KEY,#D, 5/16" x 1 1/4", HT
1шт.
41
196365C1
SUPPORT, return pan drive
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt-truss-hd
1шт.
42
196395C1
SHIELD, straw walker return
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt-truss-hd
1шт.
43
1315D
LINK
offset, fast speed, parts accessory, serial nos. 8000 thru 19000
1шт.
44
CRANKSHAFT, straw walker rear, refer to this group under straw walker and drive
1шт.
Выбрано товаров: 93
