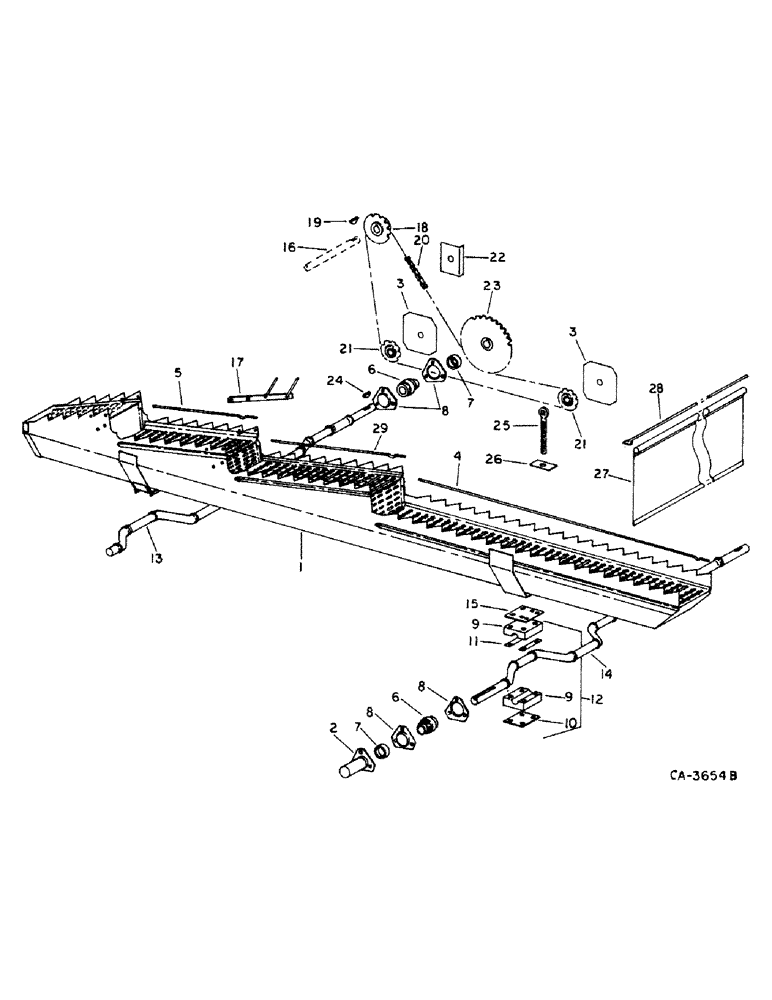

Запчасти Case IH 914 (22-1) - STRAW WALKER, STRAW WALKER AND DRIVE Straw Walkers

1

177204C91

STRAW WALKER

WALKER ASSY, straw, includes ref. nos. 4 thru 5 and 29

5шт.

2

196301C1

SHIELD ASSY, crankshaft

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

3

187247C1

SHIELD, idler

2шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8 x 2-1/2 hex-hd

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 crg type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

.656 x 1.250 x .090

1шт.

608701R1

WASHER

.656 x 1.250 x .054

1шт.

4

157976C1

ELECTRICAL WIRE

WIRE, straw walker riser rear

25шт.

5

937300R1

ELECTRICAL WIRE

WIRE, straw walker riser frt ctr

25шт.

6

611583R91

BALL BEARING

BEARING ASSY, straw walker crankshaft

4шт.

7

517645R11

COLLAR

W/SET SCREW, locking

4шт.

8

180955C1

FLANGED BEARING,0.375"

FLANGE, straw walker crankshaft brg

8шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

BLOCK, straw walker crankshaft bearing, not serviced separately order 166067C91 package

1шт.

10

189735C1

BAR

PLATE, straw walker bearing block

1шт.

11

168494C1

SHIM

straw walker .020 thick

20шт.

11

607065R1

GASKET

SHIM, straw walker .052 thick

6шт.

12

166067C91

STRIPPER PACKAGE

PACKAGE, straw walker crankshaft brg, includes ref. nos. 9, 10 and 11

1шт.

126667

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3 1/4", Gr 2

BOLT, 5/16 x 3-1/4 crg type 1

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad P/T lock type 5

1шт.

13

177202C1

CRANKSHAFT

straw walker front

1шт.

14

197854C1

CRANKSHAFT

straw walker rear, serial no. 19001 and above

1шт.

14

177203C1

CRANKSHAFT

straw walker rear, serial no. 8001 thru 19000

1шт.

15

160004C1

BAR

PLATE, straw walker rear saddle

5шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

16

JACKSHAFT, elevator drive, refer to group 25 under grain elevator drive

1шт.

17

160029C91

RISER ASSY, straw walker

20шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

170426C2

SPROCKET ASSY.

SPROCKET ASSY, straw walker drive, 23T

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2-1/4 C-Z std hd

1шт.

19

124554

O-RING

5/16 x 1 Woodruff, hardened

1шт.

20

CHAIN ASSY, straw walker drive, use 227 links from a 10 ft roll marked 1791D and 1 connecting link 1310D

1шт.

21

631905R91

SPROCKET

ASSY, straw walker drive idler, 17T

2шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 C-Z hex-hd mach

1шт.

18723R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2

BOLT, 5/8 x 2-3/4 C-Z sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

22

179283C1

ANGLE, chain shield, serial no. 19000 and below

1шт.

23

177862C1

SPROCKET ASSY.

SPROCKET ASSY, straw walker driven, 66 T

1шт.

23

180405C1

SPROCKET ASSY.

SPROCKET ASSY, straw walker driven, 57 T, fast speed, parts accessory, serial no. 19001 and above

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16 C-Z hex jam

1шт.

22339R1

SCREW, 5/16 x 1-1/4 znd sq-hd cup-pt

1шт.

24

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

25

578609R1

BOLT,7/16" - 14 x 5"

straw walker dr chain tightener

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

26

935157R1

STRIP, straw walker drive chain tightener bolt

1шт.

27

173822C2

FLAP

separator front check

1шт.

28

157177C1

ROD

separator check flap

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

29

937301R1

ELECTRICAL WIRE

WIRE, straw walker riser center

25шт.

180404C91

DRIVE PACKAGE, straw walker, fast speed, parts accessory, serial nos. 8001 thru 19000, consists of the following

1шт.

180405C1

SPROCKET ASSY.

SPROCKET ASSY, straw walker driven

1шт.

196204C1

SPROCKET ASSY.

SPROCKET, return pan driven

1шт.

1315D

LINK

offset, refer to straw walker return pan and drive for 196204C1 and 1315D, refer nos. 42 and 33 respectively

1шт.
