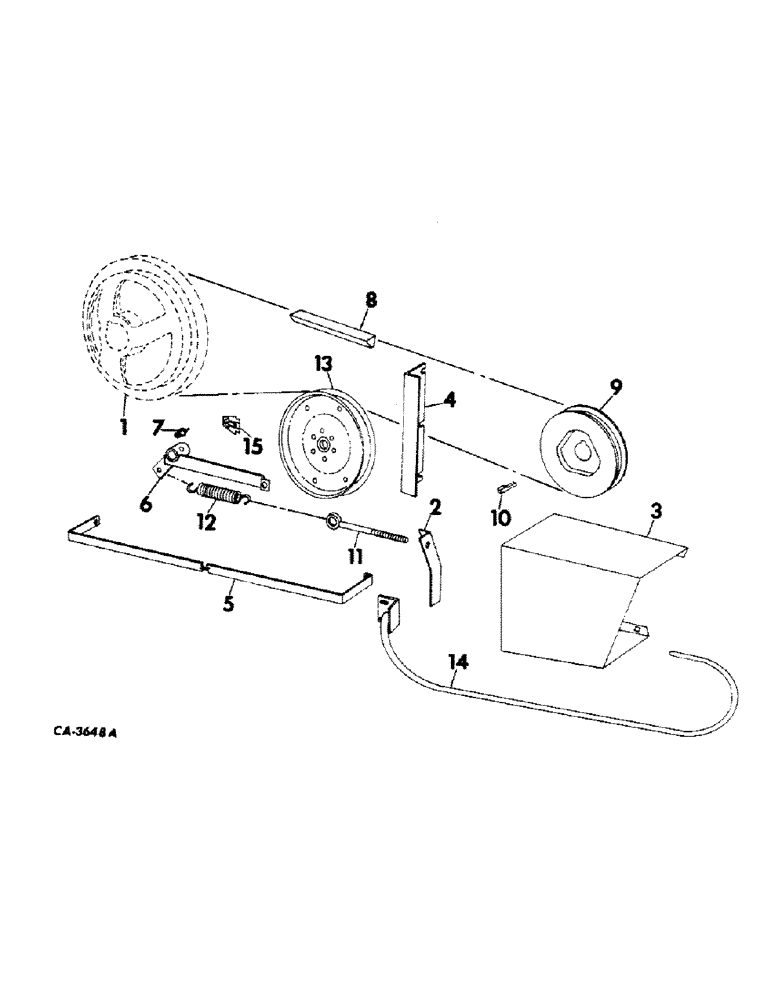

Запчасти Case IH 914 (20-12) - SEPARATOR, STRAW CHOPPER, DRIVE Separation

1

PULLEY, fan cross shaft driven, 14.16 and 16.75 in. OD, refer to group 24 under fan drive

1шт.

2

169888C1

ANGLE, rear bolt support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-tr-hd

1шт.

3

187287C1

SHIELD, rear drive

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

173593C1

GUIDE, straw chopper drive belt

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

5

173594C1

BAR, straw chopper drive belt

1шт.

6

175283C2

LEVER

ARM ASSY, chopper drive tightener

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

21761R1

WASHER

.91 x 1.50 x .06 znd

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 str lub

1шт.

8

174637C1

BELT,0.879" W x 305.97" L

V-BELT , Straw chopper drive 0.879" W x 305.97" L

1шт.

9

170495C2

PULLEY

driven, 7 in. OD

1шт.

10

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-3/4 gib

1шт.

11

629417R1

BOLT,3/8" - 16 x 7"

drive belt idler arm spring

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

619856R1

WASHER

.41 x 1.00 x .06 znd

1шт.

12

384296R2

VALVE SPRING

SPRING, drive belt idler arm

1шт.

13

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

ASSY, drive belt tightener, 8-3/4 in. OD

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 znd hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

.66 x 1.25 x .06 znd

1шт.

14

174634C1

SHIELD

ASSY, straw chopper hoop

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

15

179244C1

DECAL

PRODUCT GRAPHIC, lub - 100 hr

1шт.
