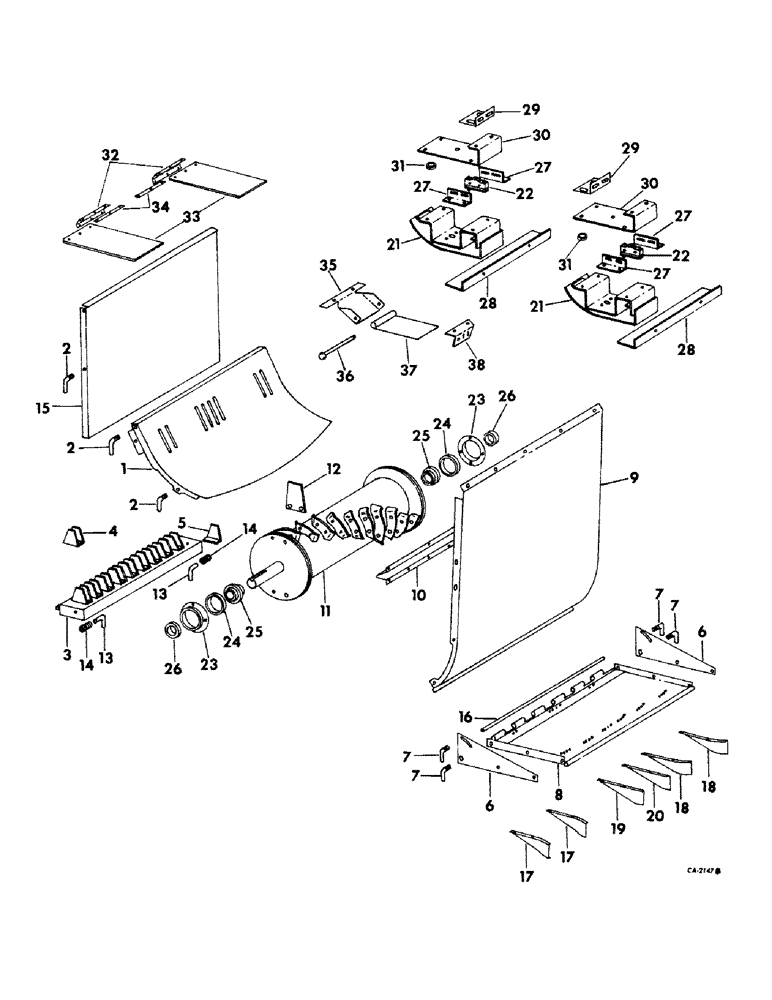

Запчасти Case IH 914 (20-09) - SEPARATOR, STRAW CHOPPER, CUTTING PARTS Separation

1

174675C1

DEFLECTOR

ASSY, straw chopper lower front

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

174685C1

BOLT,Adj, 3/8" - 16 x 2.10", 2.50"

straw chopper lower frt deflector adjust

6шт.

174688C1

NUT

3/8 C-Z flange lock

1шт.

3

174678C91

BAR

ASSY, straw chopper concave, includes ref. nos. 4 and 5

1шт.

4

174680C1

BLADE

straw chopper concave

12шт.

104235

RIVET,FH, 3/16" x 1/2"

3/16 x 1/2 round hd

1шт.

5

174681C1

BLADE

straw chopper concave end

1шт.

104235

RIVET,FH, 3/16" x 1/2"

3/16 x 1/2 round hd

1шт.

6

172514C1

SUPPORT

straw chopper rear deflector

2шт.

7

174971C1

BOLT,Adj, 5/16" - 18 x 1.60", 2"

straw chopper rear deflector support adjustment

4шт.

161946C1

NUT

5/16 C-Z flange lock

1шт.

564266R1

NUT

5/16 tab

1шт.

8

175082C2

EXTENSION ASSY, rear deflector

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-tr-hd

1шт.

9

174668C1

DEFLECTOR, separator hood rear

1шт.

541310R1

SPRING NUT

5/16-18 Tinnerman

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

1шт.

10

174669C1

DEFLECTOR, separator hood rear air

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

11

174640C91

ROTOR ASSY, straw chopper, includes ref. no. 12

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

12

197124C1

PACKAGE

SERVICE PKGE, straw chopper rotor blade, consists of 2 blades

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z flange lock

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

13

174689C1

PIN

stationary knife adj

2шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

23408R1

WASHER

15/32 x 3/4 x 16 ga znd

1шт.

14

352105R1

SPRING

stationary knife adj pin

2шт.

15

177497C1

DEFLECTOR

ASSY, front upper

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

16

175931C1

ROD

rear deflector support hinge

1шт.

17

174671C1

DEFLECTOR

straw chopper left, standard spread

2шт.

17

187244C1

DEFLECTOR

ASSY, straw chopper LH, wide spread, parts accessory

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

18

174672C1

DEFLECTOR

straw chopper right, standard spread

2шт.

18

187245C1

DEFLECTOR

ASSY, straw chopper RH, wide spread, parts accessory

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

19

174673C1

DEFLECTOR

straw chopper left center, standard spread

1шт.

19

187242C1

SUPPORT

center LH, wide spread, parts accessory

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

20

174674C1

DEFLECTOR

straw chopper right center, standard spread

1шт.

20

187243C1

SUPPORT, center RH, wide spread, parts accessory

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

21

BRACKET ASSY, straw chopper warning horn switch, not serviced separately, order package 180781C

2шт.

22

574649R91

SWITCH

straw chopper warning horn micro

2шт.

134530

NUT,Hex, #6 - 32

1шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 C-Z slt-pan-hd

1шт.

492-11006

LOCK WASHER,#6

Lock, #6

1шт.

495-31016

WASHER,#6

.156 x .375 x .036

1шт.

23

936130R1

FLANGE

straw chopper rotor shaft brg

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

24

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

straw chopper rotor shaft brg

2шт.

25

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSY, straw chopper rotor shaft

2шт.

26

455112R11

COLLAR

W/SET SCREW, lkg

2шт.

27

166225C2

SUPPORT

BRACKET, straw chopper warning horn switch, serial no. 30000 and below

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

1шт.

28

173861C2

RETAINER, straw chopper wire

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT, 1/4 x 1/2 C-Z slt-truss-hd

1шт.

564791R1

SPRING NUT

1/4 Tinnerman speed

1шт.

29

168905C1

SUPPORT, warning horn switch

2шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 sq-nk crg

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

161704C1

SUPPORT, warning horn switch

2шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-tr-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

1шт.

31

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

no. 4 rubber diagonal cut

1шт.

32

174693C1

SUPPORT

straw walker flap, straw walker end flap

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

33

174694C1

FLAP

straw walker

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

34

174695C1

STRIP, straw walker flap support

5шт.

35

188742C1

SUPPORT, warning horn switch, serial no. 30001 and above

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

36

28051R1

HEADED PIN,3/8" x 3 3/4"

PIN, warning horn switch support, serial no. 30001 and above

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

37

188743C1

HINGE, warning switch, serial no. 30001 and above

2шт.

38

188744C1

SUPPORT, warning horn switch, serial no. 30001 and above

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

180781C91

PACKAGE

SERVICE PACKAGE, warning horn switch mounting support, consists of

1шт.

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

no. 4

1шт.

188743C1

HINGE

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

4шт.

28051R1

HEADED PIN,3/8" x 3 3/4"

PIN

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

4шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

2шт.

188742C1

SUPPORT

1шт.

188744C1

SUPPORT

1шт.

495-31016

WASHER,#6

2шт.

175008C1

CABLE ASSY.

WIRE

1шт.

180697C91

STRAW, chopper wide spread deflector attachment, includes ref. nos. 17 thru 20

1шт.
