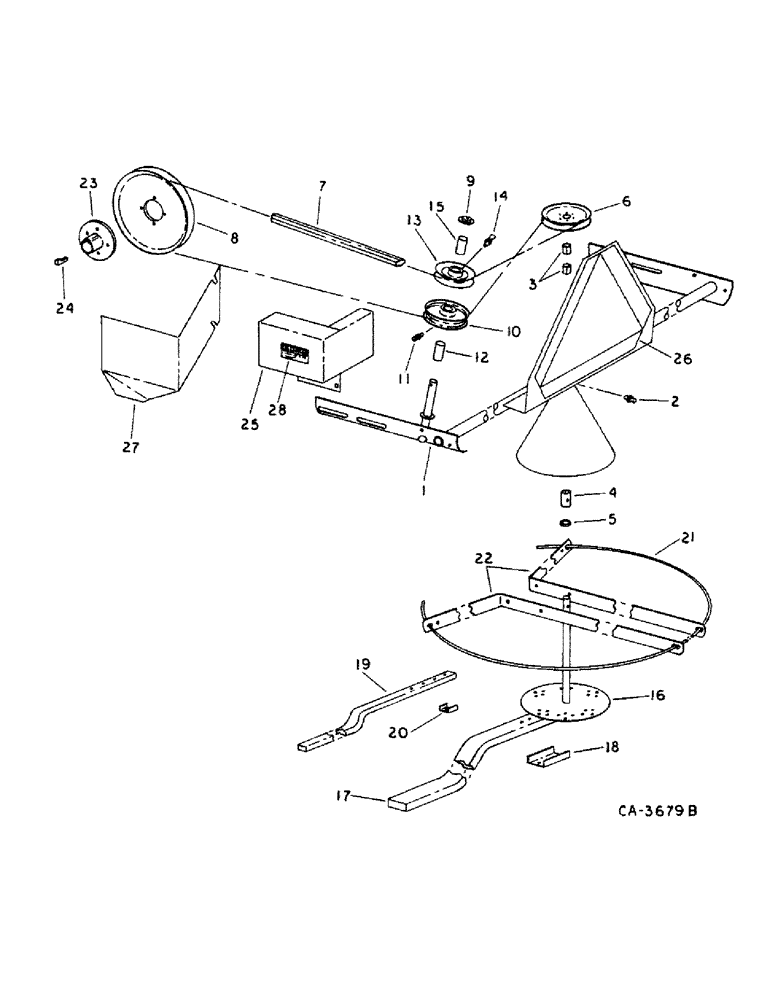

Запчасти Case IH 914 (20-07) - SEPARATOR, STRAW SPREADER Separation

1

179845C1

SUPPORT

ASSY, straw spreader, includes ref. nos. 3, 4 and 26

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

3

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

straw spreader shaft upper

2шт.

4

589813R1

BUSHING

straw spreader shaft lower

1шт.

5

615499C91

OIL SEAL

straw spreader shaft oil

1шт.

6

21712K

PULLEY ASSY.

PULLEY, straw spreader driven, 5-3/4 in. OD

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21941R1

PIN, 5/16 x 1-7/8 C-Z std-hd

1шт.

7

196371C1

BELT,0.630" W x 222.59" L

V-BELT , Straw spreader drive, OC 0.630" W x 222.59" L

1шт.

8

584967R11

PULLEY

ASSY, straw spreader drive, 9.81 in. OD

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

20362K

COLLAR

straw spreader shaft

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

10

17876K

PULLEY ASSY.

PULLEY ASSY, straw spreader drive belt idler, 5-1/8 in. OD, includes ref. no. 12

1шт.

11

557159R91

LUBE NIPPLE,1/4" x .78" lg, Drive

FITTING, 1/4 drive type str-lub

1шт.

12

18523K

BUSHING

spreader drive belt idler

1шт.

13

48252K

PULLEY ASSY.

PULLEY, straw spreader drive belt tightener, 4-3/4 in. OD, includes ref. no. 15

1шт.

14

557159R91

LUBE NIPPLE,1/4" x .78" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

15

18523K

BUSHING

spreader drive belt tightener

1шт.

16

568191R91

ROD

SHAFT ASSY, straw spreader

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

1шт.

22480R1

WASHER

29/32 x 1-1/2 x 22 ga C-Z

1шт.

17

582809R2

STRIP

BAT, straw spreader heavy

3шт.

18

566475R1

CHANNEL

CLIP, straw spreader bat

3шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

582810R2

BAT

straw spreader light

3шт.

20

565871R1

CHANNEL

CLIP, straw spreader bat

6шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

628636R1

GUARD, straw spreader

1шт.

22

158978C1

SUPPORT, straw spreader guard

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

477589R1

WASHER

.406 x 1.500 x 105

1шт.

23

177940C1

HUB

straw spreader drive

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

1шт.

24

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 x 1-3/4 gib

1шт.

25

177936C1

SHIELD ASSY, straw spreader drive, includes ref. no. 28

1шт.

20893R1

WASHER

.34 x 1.00 x .12 znd

1шт.

26

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

SMV emblem

1шт.

27

196307C1

SHIELD, straw spreader

1шт.

28

2754446R1

PRODUCT GRAPHIC

be careful

1шт.
