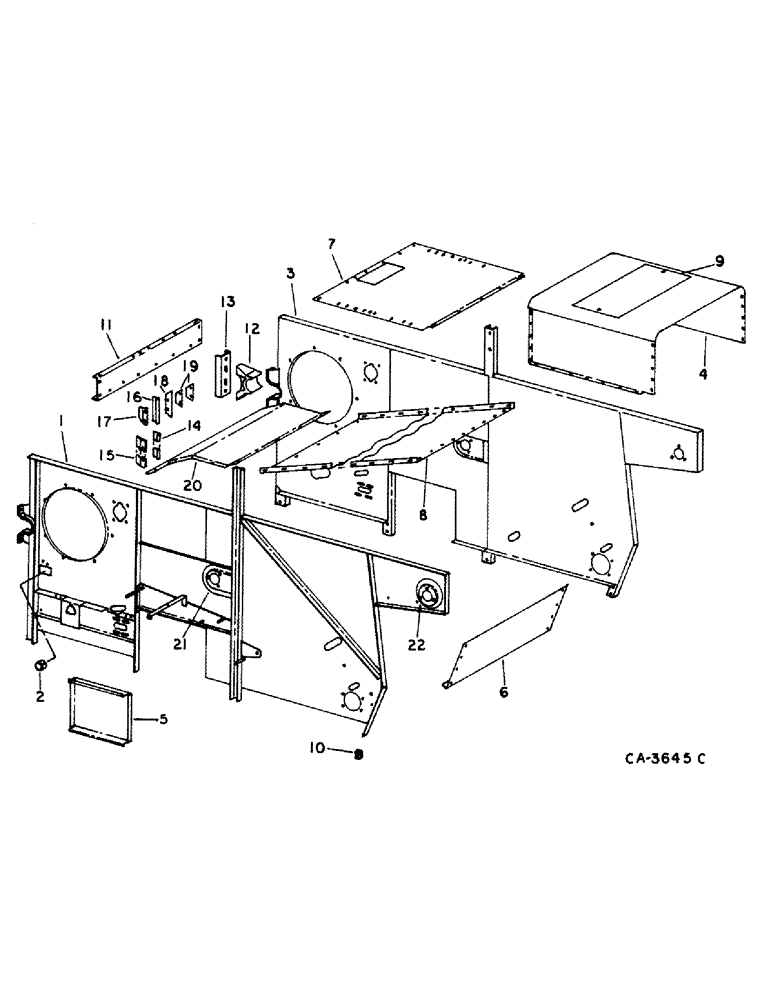

Запчасти Case IH 914 (20-01) - SEPARATOR Separation
№
Артикул
Название
Примечание
Количество
1
179813C1
SIDE ASSY, separator left, serial no. 23000 and below
1шт.
1
187083C2
SIDE ASSY, separator LH, serial no. 23001 and above, includes ref. nos. 21 and 22
1шт.
60365H
BOLT,Hex, 3/8" - 16 x 1", Gr 8
3/8 x 1 hex-hd type 8
1шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 hex-hd
1шт.
427566
BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd
1/2 x 1-1/2 hex-hd type 8
1шт.
432695R1
BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8
5/8 x 1-3/4 hex-hd type 8
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
120376
NUT,5/16"-18, G5
1шт.
21333R1
NUT,3/8"-16, G8
3/8 hex type 8
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
21330R1
NUT,1/2"-13, G8
1/2 hex type 8
1шт.
21434R1
NUT,5/8"-11, G8
5/8 hex type 8
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt-truss-hd
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
366862C1
LOCK WASHER,3/8"
3/8"
1шт.
366864C1
LOCK WASHER,1/2"
1/2"
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
131165
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
138557
WASHER,Int Tooth, 5/8"
5/8 int lock
1шт.
2
157560C1
BUSHING
concave cross shaft
2шт.
3
179817C1
SIDE ASSY, separator right, serial no. 23000 and below
1шт.
3
187084C2
SIDE ASSY, separator RH, serial no. 23001 and above, includes ref. nos. 2, 21 and 22
1шт.
60365H
BOLT,Hex, 3/8" - 16 x 1", Gr 8
3/8 x 1 hex-hd type 8
1шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 hex-hd
1шт.
427566
BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd
1/2 x 1-1/2 hex-hd type 8
1шт.
432695R1
BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8
5/8 x 1-3/4 hex-hd type 8
1шт.
120376
NUT,5/16"-18, G5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
21333R1
NUT,3/8"-16, G8
3/8 hex type 8
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
21330R1
NUT,1/2"-13, G8
1/2 hex type 8
1шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 hex
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt-truss-hd
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
366862C1
LOCK WASHER,3/8"
WASHER, 3/8"
1шт.
366864C1
LOCK WASHER,1/2"
1/2"
1шт.
131165
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
138557
WASHER,Int Tooth, 5/8"
5/8 int lock
1шт.
4
169598C1
TOP ASSY, separator
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 sq-nk crg
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
5
169608C1
DOOR, straw walker inspection
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 znd hex-hd mach
1шт.
935736R1
NUT, WING
NUT, 5/16 C-Z wing
1шт.
6
169609C1
PLATE, separator rear
1шт.
17452R1
BOLT,Hex, 1/2"-13 x 1 1/4", G2
1/2 x 1-1/4 C-Z hex-hd mach
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
180179
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
SCREW, 1/2 x 1-3/4 znd hex-hd cap
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
7
179889C1
TOP ASSY, separator front
1шт.
63227R1
SCREW
BOLT, 5/16 x 3/4 slt-truss-hd
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
1шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
SCREW, 5/16 x 3/4 flange lock
1шт.
8
179812C1
TOP, separator rear
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 sq-nk crg
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd
1шт.
9
170439C1
DOOR, separator top
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt-truss-hd
1шт.
10
166705C1
NUT
5/16-18 speed grip
2шт.
11
169610C1
CHANNEL, front cross
1шт.
18707R1
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 znd sq-nk crg
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
607895R1
WASHER
17/32 x 1 x 11 ga C-Z
1шт.
12
177549C1
CLAMP
feeder pivot
2шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 znd hex-hd mach
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
13
177548C1
CHANNEL, feeder pivot clamp
2шт.
25740R1
BOLT,Hex, 7/8" - 9 x 2 3/4", Gr 8
7/8 x 2-3/4 PHC hex-hd type 8
1шт.
131168
LOCK WASHER,7/8"
7/8"
1шт.
24772R1
WASHER, 7/8 znd ribbed lock
1шт.
14
177552C1
SEAL
feeder pivot lower
2шт.
15
177554C1
RETAINER
feeder pivot lower seal
2шт.
231-4144
NUT,1/4"-20, GB
NUT, 1/4 prevailing torque hex
1шт.
133781
SCREW,Sl Flat Hd, 1/4" - 20 x 1 1/4"
1/4 x 1-1/4 znd slt-hd mach
1шт.
16
177550C1
SEAL
feeder pivot upper LH
1шт.
16
177551C1
SEAL
feeder pivot upper RH
1шт.
17
177553C1
RETAINER
feeder pivot upper seal
2шт.
231-4144
NUT,1/4"-20, GB
NUT, 1/4 prevailing torque hex
1шт.
133781
SCREW,Sl Flat Hd, 1/4" - 20 x 1 1/4"
1/4 x 1-1/4 znd slt-f-hd mach
1шт.
18
177556C1
STRIP
feeder upper seal backing
2шт.
19
177555C1
SPACER
feeder upper seal
4шт.
20
180225C1
DEFLECTOR ASSY, cylinder beater
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
1шт.
21
160256C1
FLANGE, straw walker front bearing
2шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
22
158380C1
RETAINER
FLANGE, straw walker rear bearing
2шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
Выбрано товаров: 103
