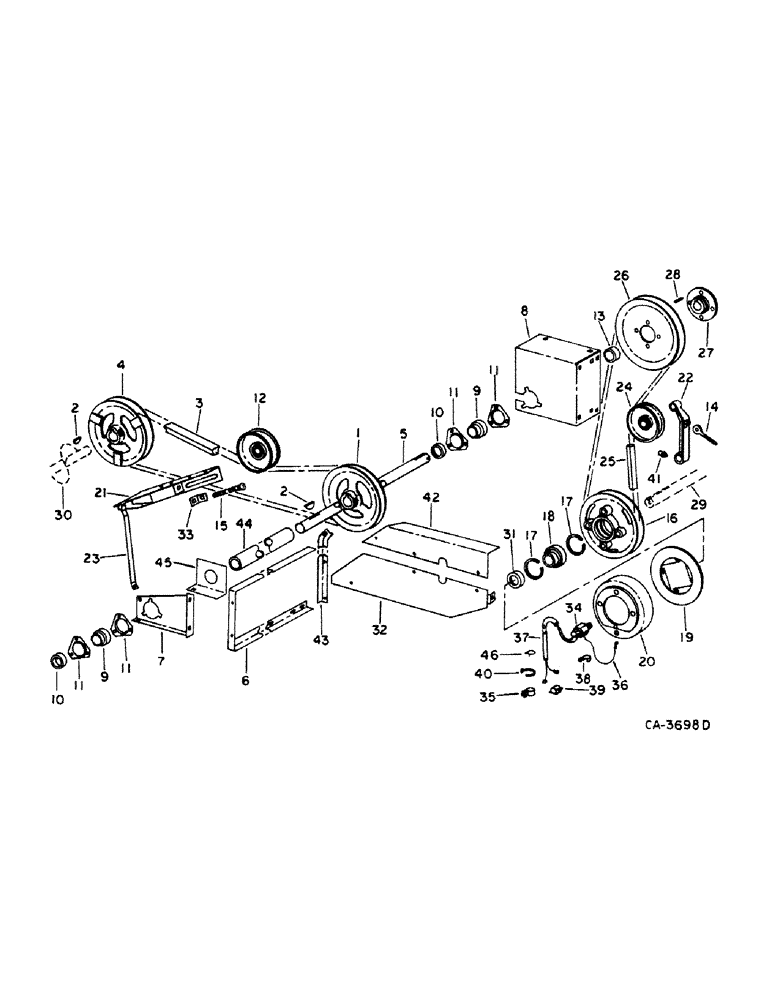

Запчасти Case IH 914 (26-8) - GRAIN TANK, GRAIN TANK UNLOADER AUGER DRIVE Grain Tank

1

169806C1

PULLEY, unloader auger drive, 10.50 in. OD

1шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex jam

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 1 C-Z sq-hd cup PT

1шт.

2

124554

O-RING

5/16 x 1 Woodruff, hard

2шт.

3

569692R1

V-BELT,0.88" W

Unloader auger drive, OC 0.88" W

1шт.

4

626769R3

PULLEY, unloader auger driven, 10.50 in. OD

1шт.

5

169807C1

SHAFT

JACKSHAFT, unloader drive upper

1шт.

6

169808C1

ANGLE, unloader upper jackshaft support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

169809C1

BRACKET, unloader upper jackshaft left brg

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk-crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

169811C1

BRACKET, unloader upper shaft brg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

617684R91

BEARING

ASSY, unloader upper jackshaft

2шт.

10

617685R11

COLLAR

W/SET SCREW, locking

2шт.

11

571425R1

FLANGED BEARING

unloader upper jackshaft brg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

564745R91

PULLEY

unloader auger drive belt tightener, 6.25 in. OD

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 znd sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

150180C1

SPACER, unloader upper jackshaft driven pulley

1шт.

14

169882C1

BOLT

unloader tightener eye

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21955R1

HEADED PIN,1/2" x 1 5/8"

PIN, 1/2 x 1-5/8 znd hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

15

457369R1

BOLT, unloader drive belt tightener

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

16

179859C1

PULLEY

unloader upper jackshaft dr, 10.38 in. OD

1шт.

17

512889R1

RING

unloader upper jackshaft drive pulley bearing snap

2шт.

18

628904R91

BEARING ASSY,1.3755" ID x 72 mm OD x 2.015625"

BEARING, unloader upper jackshaft drive pulley

1шт.

19

179860C91

DISC

ASSY, unloader electric clutch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20

179861C92

MAGNET

FIELD ASSY, unloader electric clutch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

436696

SCREW,Slotted Pan Hd, #8-32 x 5/8"

8-32 x 1/2 slt-pan-hd mach

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER, 3/8 int-ext tooth lock

1шт.

21

169815C1

BRACKET ASSY, unloader drive belt tightener pulley

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-tr-hd

1шт.

22

169818C1

ARM, unloader upper jackshaft belt tightener

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

178375R1

WASHER

.781 x 1.250 x .054

1шт.

23

169820C1

ANGLE, unloader upper jackshaft outer brg support

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

170146C1

PULLEY

jackshaft drive belt tightener, 5, 3/4 in. OD

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

25

169827C1

V-BELT,0.88" W x 97.49" L

Unloader Jackshaft Drive 0.88" W x 97.49" L

1шт.

26

155718C11

PULLEY

ASSY, unloader jackshaft driven, 13 in. OD

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

164193C2

HUB, unloader upper jackshaft pulley

1шт.

28

Q1482

KEY,5/16" Sq x 1", Par

5/16 x 1 sq, parallel

1шт.

29

SHAFT, fan drive cross, refer to group 24 under fan drive

1шт.

30

AUGER ASSY, unloader lower, refer to this group under grain tank unloader

1шт.

31

517645R11

COLLAR

ASSY, locking w/set screw

1шт.

32

171865C1

SHIELD ASSY, unloader drive pulley, serial no. 23000 and below

1шт.

32

187158C1

SHIELD ASSY, unloader drive pulley, serial no. 23001 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

33

173811C1

ANGLE, unloader drive belt tightener draw bolt

1шт.

34

122177C1

HARNESS

W/BRUSH HOLDER, includes ref. nos. 36 and 37

1шт.

35

132112H1

CLAMP,9/16", 3/8" Bolt

brush holder

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

1шт.

36

179650C1

ELECTRICAL WIRE

WIRE ASSY

1шт.

37

179651C1

CABLE

ASSY

1шт.

38

366460R1

CABLE CLIP

CLIP, cable, short

1шт.

39

702093C1

CABLE TIE

CLIP, cable

1шт.

40

702093C1

CABLE TIE

TIE, self locking cable

1шт.

41

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

42

187160C1

SUPPORT, unloader drive upper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

43

187162C1

SUPPORT, unloader drive front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

44

187280C1

SHIELD, jackshaft tube

1шт.

45

187289C1

ANGLE, cross auger drive support

1шт.

46

317683R1

HOSE CLAMP,#10, 5/8", Spring

CLAMP, brush holder cable

1шт.

46

180667C91

PACKAGE, unloader electric clutch, serial no. 8000 and below consists of

1шт.

179862C1

SHAFT, fan drive cross

1шт.

180698C91

PACKAGE, electric clutch

1шт.

180698C91

1шт.

PACKAGE, electric clutch, consists of bearing 628904R91, brush 122177C1, cable assy 179651C1, clamp 132112H1, clamp 317683R1 clip 366460R1, collar 517645R11, disc assy 179860C91, field assy 179861C92, key Q3952, nut 120377, pulley 179859C1, pulley 179864C1, ring 512889R1, screw 180124, screw 180126, washer 120382, washer 178551, washer 608085R1, wire assy 179650C1

1шт.
