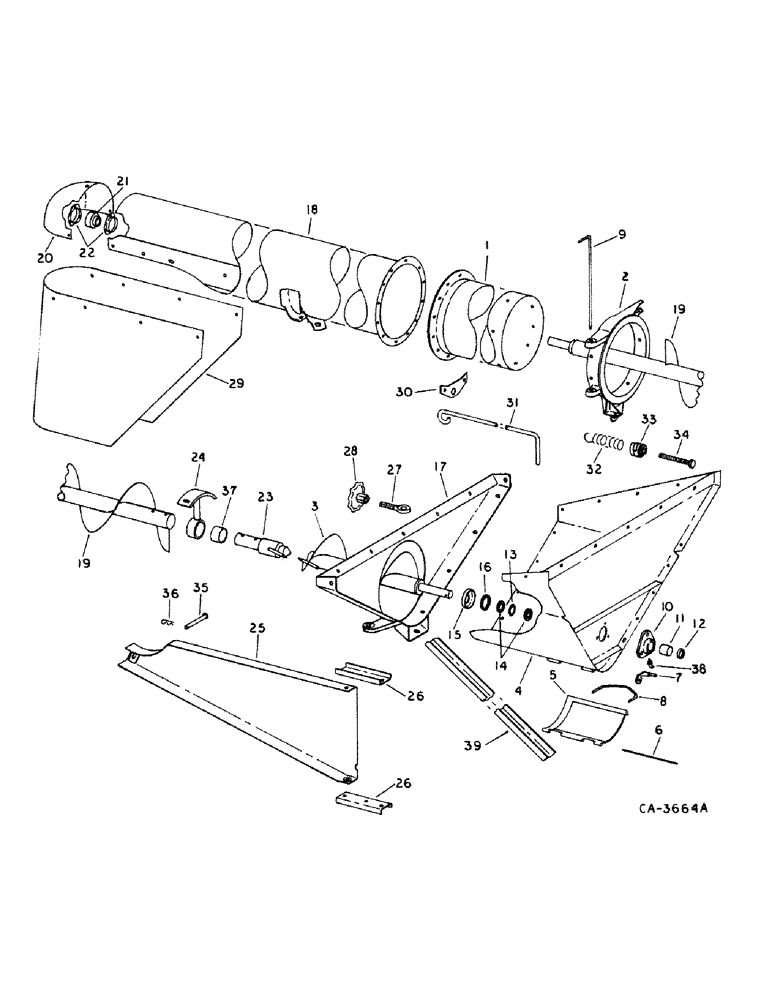

Запчасти Case IH 914 (26-6) - GRAIN TANK, GRAIN TANK UNLOADER Grain Tank

1

179920C1

TUBE ASSY, unloader lower auger, includes ref. no. 2

1шт.

2

169770C1

HINGE, unloader lower auger tube

1шт.

3

180534C1

AUGER

ASSY, unloader lower

1шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga znd

1шт.

4

169775C1

TROUGH ASSY, unloader lower auger

1шт.

20816R1

BOLT, 3/8 x 1/2 sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-tr-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

169780C1

DOOR ASSY, unloader auger trough

1шт.

6

54070D

ROD

PIN, unloader lower auger hinge

1шт.

7

155909C1

LATCH

unloader lower door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 std hd

1шт.

8

155900C1

BOLT,1/4" - 20 x 4.24" W x 1.12" L

U-BOLT, unloader lower auger door latch

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 znp nylon insert lock

1шт.

9

587686R1

ROD, unloader auger tube hinge

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

10

160114C91

HUB

ASSY, unloader lower auger brg, includes ref. nos. 11 and 12

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

466509R91

BEARING ASSY

ASSY, unloader lower aug hub

1шт.

12

697494R91

OIL SEAL

SEAL, unloader lower auger brg oil

1шт.

13

368372R91

THRUST BEARING

unloader lower auger thrust

1шт.

14

864982R1

THRUST WASHER,1.012" ID x 1.552" OD x 0.93"

unloader lower auger thrust

2шт.

15

U14764

WASHER

unloader lower auger brg cup

1шт.

16

21127R1

WASHER

unloader lower auger felt

1шт.

17

169783C1

HINGE, unloader tube inner

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

18

179918C2

UNLOADING TUBE

TUBE ASSY, unloader upper auger

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt-tr-hd

1шт.

19

179915C1

AUGER ASSY, unloader upper

1шт.

20

584267R1

SUPPORT

BRACKET, unloader auger upper brg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-tr-hd

1шт.

21

155264C91

BALL BEARING,25.43mm ID x 52.09mm OD x 16mm W

unloader auger upper ball

1шт.

22

571424R1

FLANGE

unloader auger upper brg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23

180533C1

STUD ASSY, unloader upper auger drive

1шт.

18785R1

BOLT,Hex, 3/8"-16 x 3", G2

3/8 x 3 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21750R1

WASHER

1-29/32 x 2-1/2 x 16 ga C-Z

1шт.

24

629478R92

BRACKET

SUPPORT ASSY, unloader upper auger lower brg, includes ref. no. 37

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25

169789C1

SUPPORT ASSY, unloader tube transport

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

22073R1

PIN, 1/2 x 7/8 C-Z std-hd 1/2" x 7/8"

1шт.

21903R1

WASHER

17/32 x 3/4 x 16 ga C-Z

1шт.

26

169792C1

ANGLE, unloader tube transport support upper

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

27

159355C1

BOLT,1/2" - 13 x 3"

unloader tube locking eye

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 C-Z std-hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

28

169794C1

NUT

unloader tube locking bolt hand

1шт.

29

170021C1

SPOUT, DISCHARGE

SPOUT, unloader tube

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-tr-hd

1шт.

30

169796C1

BRACKET, unloader tube rod

1шт.

31

179919C1

ROD, unloader tube

1шт.

32

PO181

SPRING, unloader swing

1шт.

33

PO2315

PLUG

unloader swing spring

1шт.

34

570640R1

BOLT (SPREADER),Adj, Hex, 1/2" - 13 x 4", Full Thd

BOLT, unloader swing spring

1шт.

35

171842C1

PIN, unloader tube transport

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .06 C-Z

1шт.

36

586591R1

COTTER PIN

PIN, QA

1шт.

37

629481R1

BEARING

BUSHING, unloader upper auger lower

1шт.

38

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg lub

1шт.

39

169801C1

CHANNEL, unloader trough support

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
