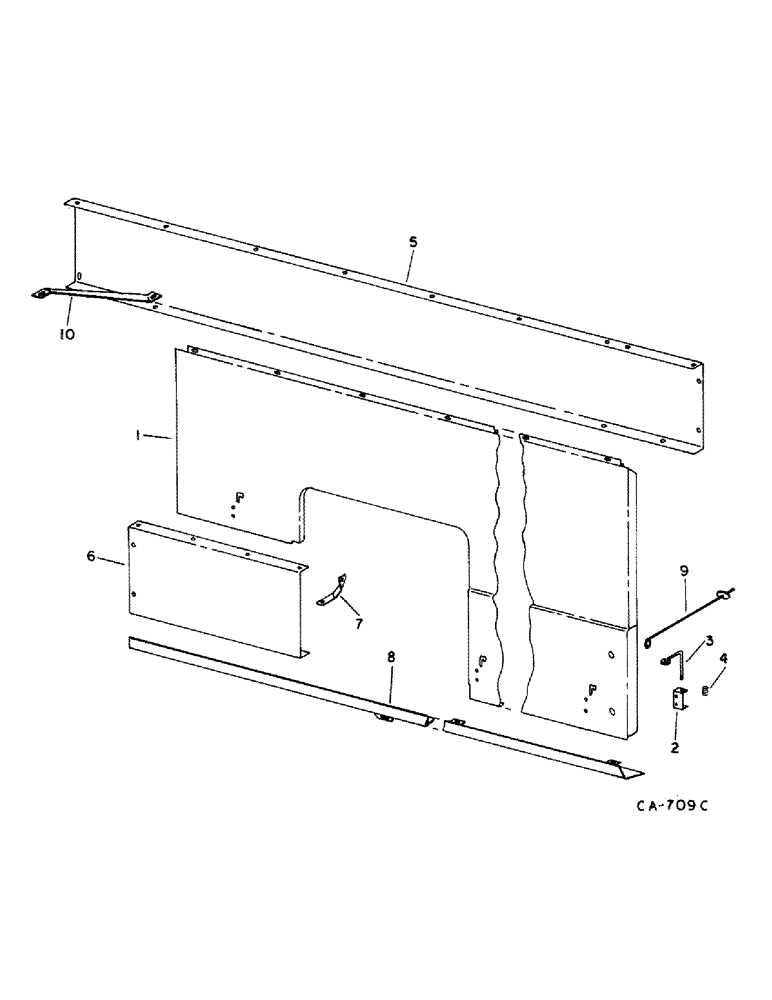

Запчасти Case IH 914 (26-5) - GRAIN TANK, GRAIN TANK SHIELDS Grain Tank

1

169830C1

SHIELD ASSY, grain tank auger drive chain LH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

1шт.

2

169655C1

BRACKET, locking pin

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

3

173920C1

PIN

locking

3шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

4

606245R1

SPRING

locking pin

3шт.

5

169838C1

TRIM, grain tank lower right

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

1шт.

6

169836C1

TRIM, grain tank lower left front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

1шт.

7

169837C1

SUPPORT, trim left front

1шт.

8

169839C1

ANGLE ASSY, left trim support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt-truss-hd

1шт.

9

169842C11

ROD ASSY, grain tank door support

1шт.

10

169972C2

SUPPORT, RH front shield

1шт.
