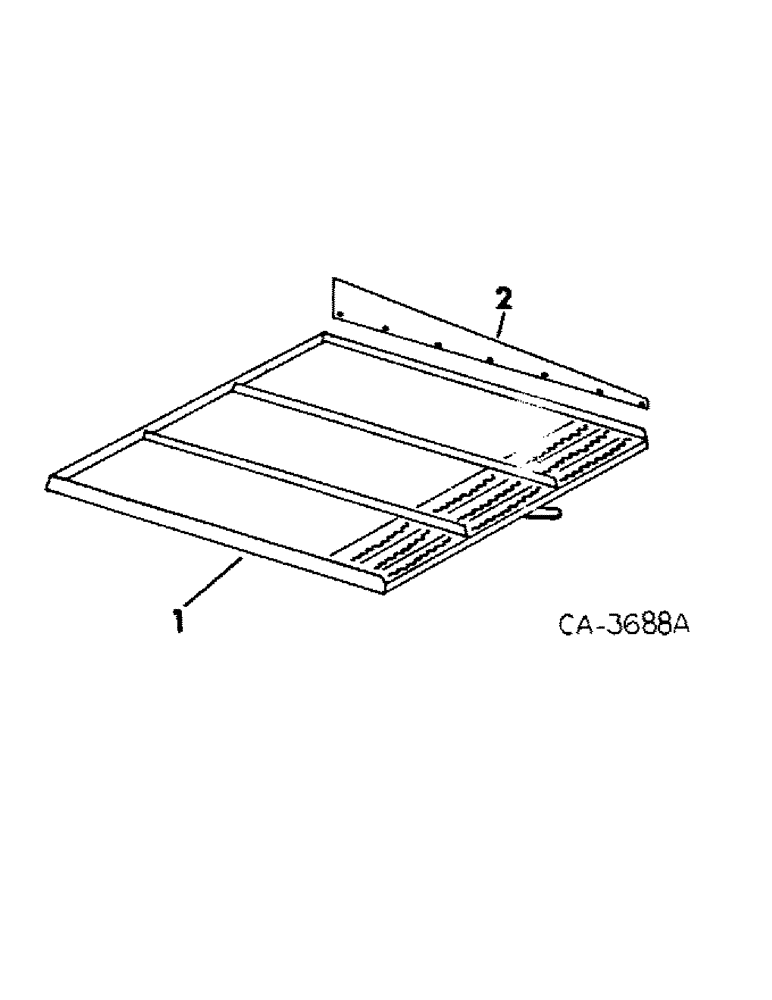

Запчасти Case IH 914 (23-4) - GRAIN PAN, SHOE AND SIEVE, CHAFFER SIEVE Grain Pan, Shoe & Shoe Sieve

1

172839C2

GRAIN SIEVE

SIEVE ASSY, chaffer 1-1/8 adjustable

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

175190C1

DIVIDER

CHAFFER, grain pan side hill

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

. 1/4 x 3/4 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
