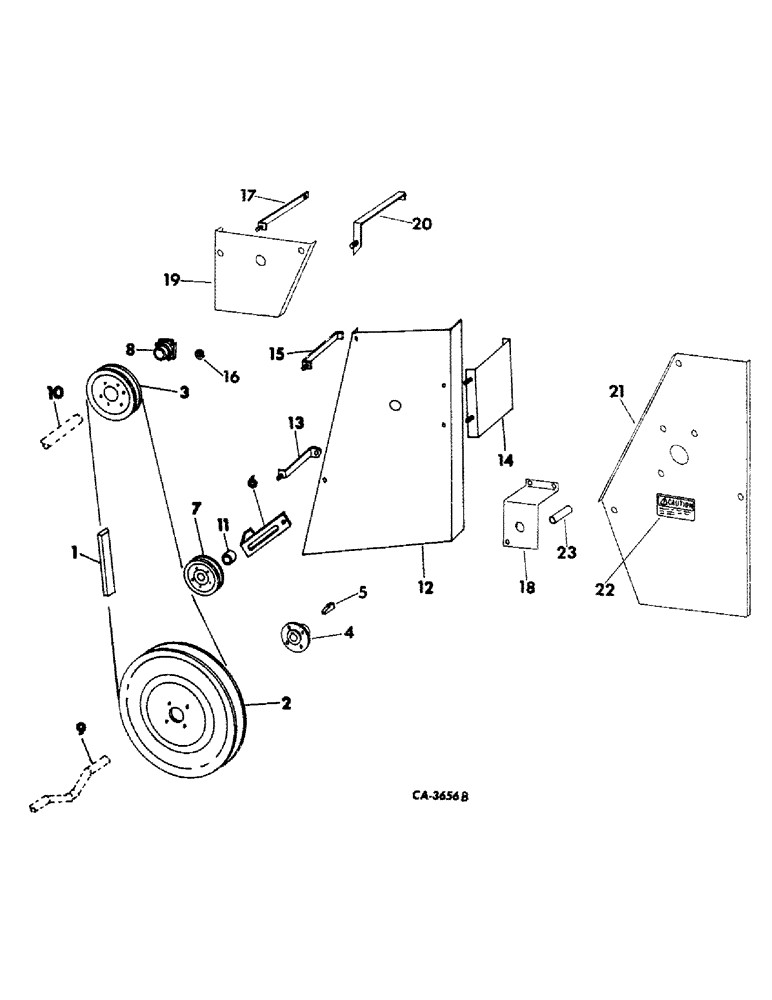

Запчасти Case IH 914 (23-3) - GRAIN PAN, SHOE AND SIEVE, SHAKER SHAFT DRIVE Grain Pan, Shoe & Shoe Sieve

1

632702R1

V-BELT,0.88" W

Shaker shaft drive 0.88" W

1шт.

1

564494R2

V-BELT,0.88" W

Slow speed shaker shaft drive, 265 rpm, Parts accessory 0.88" W

1шт.

2

167728C21

PULLEY

ASSY, shaker shaft driven,18.24 in. OD

1шт.

2

167727C21

PULLEY ASSY, shaker shaft driven, 19.19 in. OD, 265 RPM, slow speed, parts accessory

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

160446C12

ASSEMBLY

PULLEY ASSY, shaker shaft drive, 7.04 in. OD

1шт.

4

160757C2

HUB

shaker shaft driven pulley

1шт.

5

Q3928

KEY,Gib, 5/16" Sq x 1 1/4"

5/16 x 1-1/4 gib

1шт.

6

160753C2

BRACKET, shaker shaft drive belt tightener pulley

1шт.

7

570265R91

PULLEY

ASSY, shaker shaft drive belt tightener

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 C-Z sq-nk crg

1шт.

124847

COLLAR

5/8 C-Z hex jam

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z int-tooth lock

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11ga C-Z

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

25/32 x 1-1/4 x 12 ga sq

1шт.

8

172301C1

HUB

shaker shaft drive pulley

1шт.

18799R1

BOLT,Hex, 7/16"-14 x 2 1/4", G2

7/16 x 2-1/4 znd hex-hd mach

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 znd hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

9

SHAFT ASSY, shaker, refer to this group under grain pan and shaker shaft

1шт.

10

SHAFT ASSY, cylinder beater, refer to group 21 under cylinder beater and supports

1шт.

11

UA17298

SPACER,7/8" Tube x 1 1/16"

shaker shaft drive belt tightener bracket

1шт.

12

171790C1

SHIELD, shaker shaft drive

1шт.

159700C1

NUT

5/16 C-Z wing

1шт.

13

171792C11

SUPPORT ASSY, shaker shaft drive shield lower

1шт.

14

171791C11

SUPPORT ASSY, shaker shaft drive shield up front, serial no. 23000 and below

1шт.

14

187170C1

CHANNEL, front cylinder and shaker drive, serial no. 23001 and above

1шт.

15

171793C11

SUPPORT ASSY, shaker shaft drive shield top

1шт.

16

176701C1

WASHER, drive pulley hub bolt

1шт.

187173C1

SUPPORT, cylinder shield rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

18

187284C1

SUPPORT, cylinder shaft RH

1шт.

18669R1

BOLT,Hex, 1/4"-20 x 4-1/2", G2

1/4 x 4-1/2 hex-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

19

187169C1

SUPPORT, cylinder drive

1шт.

159700C1

NUT

5/16 wing

1шт.

20

187285C1

SUPPORT ASSY, beater shield front

1шт.

21

187219C91

SHIELD ASSY, cylinder and shaker, includes ref. no. 22

1шт.

159700C1

NUT

5/16 wing

1шт.

22

56630C1

PRODUCT GRAPHIC

caution instruction

1шт.

23

460556R1

SPACER, 1/4 x 3.688 std pipe

1шт.
