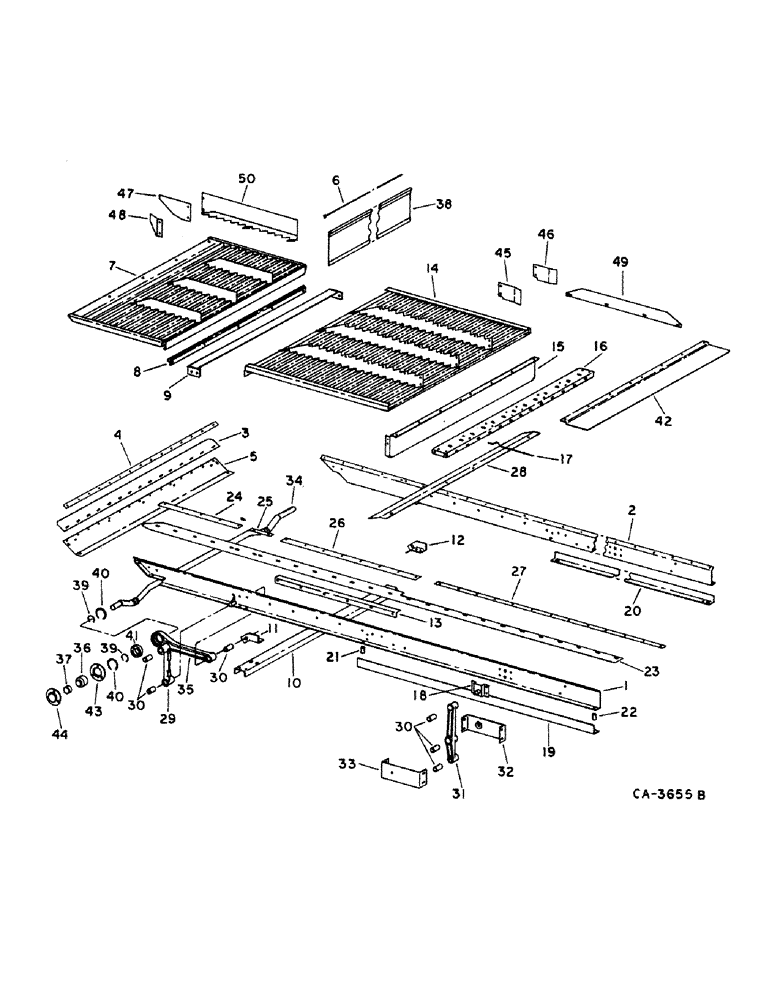

Запчасти Case IH 914 (23-1) - GRAIN PAN, SHOE AND SIEVE, GRAIN PAN AND SHAKER SHAFT Grain Pan, Shoe & Shoe Sieve

1

175060C1

RAIL

ASSY, grain pan LH side

1шт.

2

175061C1

RAIL

ASSY, grain pan RH side

1шт.

3

158069C1

SEAL

grain pan front

1шт.

4

158071C1

BAR

grain pan front seal

1шт.

445117

DIODE

1/4 PHC spring

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z pan-hd mach

1шт.

5

175067C1

SUPPORT, grain pan front

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

1шт.

6

157177C1

ROD

grain pan check flap

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

7

175078C1

DOOR ASSY.

DOOR ASSY, grain pan bottom

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

175095C1

RETAINER, grain pan bottom door

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

175099C1

SUPPORT ASSY, grain pan cross

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

172801C1

CHANNEL

grain pan support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

172793C1

ANGLE

grain pan pivot LH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

1шт.

12

172794C1

ANGLE

grain pan pivot RH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

1шт.

13

175101C1

ANGLE, grain pan bottom support

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

175107C1

BOTTOM

ASSY, grain pan

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 C-Z pan-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

175111C1

SUPPORT, grain pan finger front

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

175113C1

SUPPORT, grain pan finger

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

175114C1

FINGER,Formed, 1 Prong, 264mm L

grain pan

13шт.

18

172789C1

PIVOT

ASSY, grain pan rear

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

175116C1

SUPPORT

chaffer sieve LH

1шт.

20

175117C1

SUPPORT

chaffer sieve RH

1шт.

21

493933R1

SPACER,5/8" Tube x 1 7/16"

.407 x .625 x 1.4 tube

2шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 C-Z hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

1шт.

22

154397C1

SPACER,5/8" Tube x 1 1/4"

.407 x .625 x 1.25 tube

2шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

.406 x .734 x .056

1шт.

23

175125C1

SEAL

grain pan side rail

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 hex-hd

1шт.

24

175126C1

BAR

grain pan side rail seal front

2шт.

25

175127C1

BAR, grain pan side rail front center

1шт.

26

175128C1

BAR, grain pan side rail seal rear center

1шт.

27

175129C1

BAR, grain pan side rail seal rear

2шт.

28

175130C1

SEAL, grain pan face

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

29

175131C91

ARM ASSY.

ARM ASSY, grain pan front hanger, includes ref. no. 30

1шт.

223517

BOLT,Hex, 5/8" - 11 x 3", Gr 8

5/18 x 3 C-Z hex-hd type 8

1шт.

25390R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 8

5/8 x 6-1/2 C-Z hex-hd type 8

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, , Esna 5/8"-11, GB

1шт.

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

169256C1

DISC

WASHER, .641 x 1.25 x .125

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 int lock

1шт.

30

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

grain pan front hanger arm, 12

1шт.

31

175133C91

LEVER

ASSY, grain pan and shoe, includes ref. no. 30

2шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 C-Z hex-hd mach

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8 x 4-1/2 type 8

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

169256C1

DISC

WASHER, 21/32 x 1-1/4 x 11 ga znd

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 int lock

1шт.

32

175137C1

SUPPORT ASSY, grain pan pivot in

2шт.

33

175140C1

SUPPORT, grain pan pivot outer

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 znd hex

1шт.

123920

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

34

196277C1

CRANKSHAFT

SHAFT ASSY, shaker

1шт.

35

175183C91

PITMAN W/BUSHING, shaker shaft, includes ref. no. 30

2шт.

36

939475R91

BEARING

ASSY, shaker shaft ball

2шт.

37

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

2шт.

38

582606R21

FLAP

ASSY, grain pan check

1шт.

39

359894R1

RING, SNAP

RING, shaker shaft pitman brg ext, snap

4шт.

40

UA20551

RING

shaker shaft pitman brg int-snap

4шт.

41

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

shaker shaft pitman ball

2шт.

42

172818C1

COVER

grain pan finger, parts accessory

1шт.

43

470746R1

FLANGE

shaker shaft brg grooved

2шт.

44

470745R91

FLANGED BEARING

FLANGE W/STR LUB FITTING, shaker shaft bearing

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

45

175188C1

SHIELD

chaffer divider LH, grain pan side hill

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

46

175189C1

SHIELD, chaffer divider RH, grain pan side hill

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

47

175187C1

DEFLECTOR, rubber, grain pan side hill, serial no. 1440 thru 8000

2шт.

48

175186C1

DEFLECTOR, grain side hill, serial no. 1440 thru 8000

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

49

175192C1

EXTENSION, grain pan divider, grain pan side hill, serial no. 1440 thru 8000

3шт.

934016R1

NUT

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

50

175193C1

RISER ASSY, grain pan side hill, serial no. 1440 thru 8000

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 slt-pan-hd

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.
