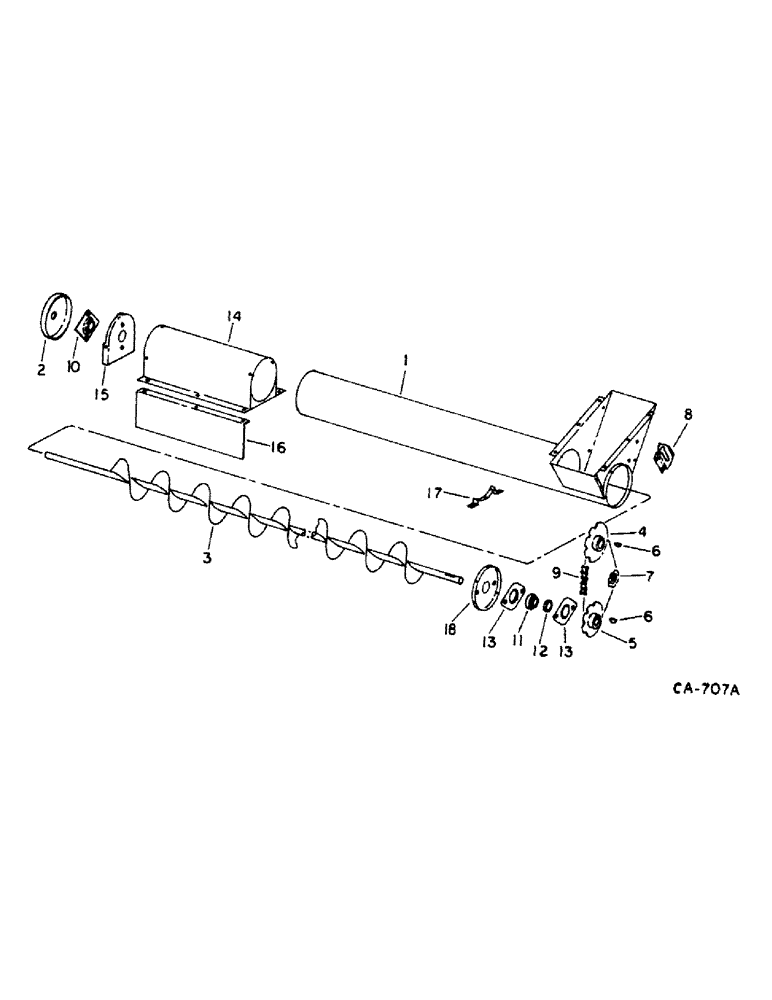

Запчасти Case IH 914 (25-9) - ELEVATORS, TAILINGS DELIVERY AUGER AND DRIVE Elevators

1

164457C91

SPOUT, DISCHARGE

SPOUT ASSY, tailings delivery

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

2

169742C1

PLATE

auger indicator

1шт.

3

169743C1

AUGER

ASSY, tailings delivery

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

668752R1

WASHER

29/32 x 1-1/4 x 16 ga C-Z

1шт.

4

168689C1

SPROCKET ASSY.

SPROCKET, tailings delivery auger drive, 9 T

1шт.

5

160445C1

SPROCKET ASSY.

SPROCKET, tailings delivery auger driven, 8 T

1шт.

6

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1/4 x 7/8 Woodruff-hard

2шт.

7

565442R91

SPROCKET

tailings delivery auger drive chain tightener, 17 T

1шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq x 1-1/4 x 11 ga C-Z

1шт.

8

160449C1

SUPPORT

tailings delivery auger drive chain tightener sprocket

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

1шт.

9

CHAIN ASSY, tailings delivery auger drive, use 21 links from 10 ft roll marked 569089R91, one connecting link 587372R91 and one offset link 456929R91

1шт.

10

631527R91

BALL BEARING

ASSY, tailings delivery auger left

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

564991R92

BEARING, BALL,22.23mm ID x 52mm OD x 15mm W

BEARING ASSY, tailings delivery auger right

1шт.

12

658006R11

COLLAR

W/SET SCREW, lkg

1шт.

13

612031R1

FLANGED BEARING

tailings delivery auger RH bearing

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

169745C1

HOUSING

ASSY, tailings top

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

15

169748C1

SHEET, tailings housing left

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5016 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

16

169749C1

BAFFLE, tailings auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/1L x 3/4 slt-truss-dh

1шт.

17

165764C1

SADDLE, tailings delivery auger tube

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/1L C-Z flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

18

160675C1

WASHER

SUPPORT, tailing delivery auger right

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.
