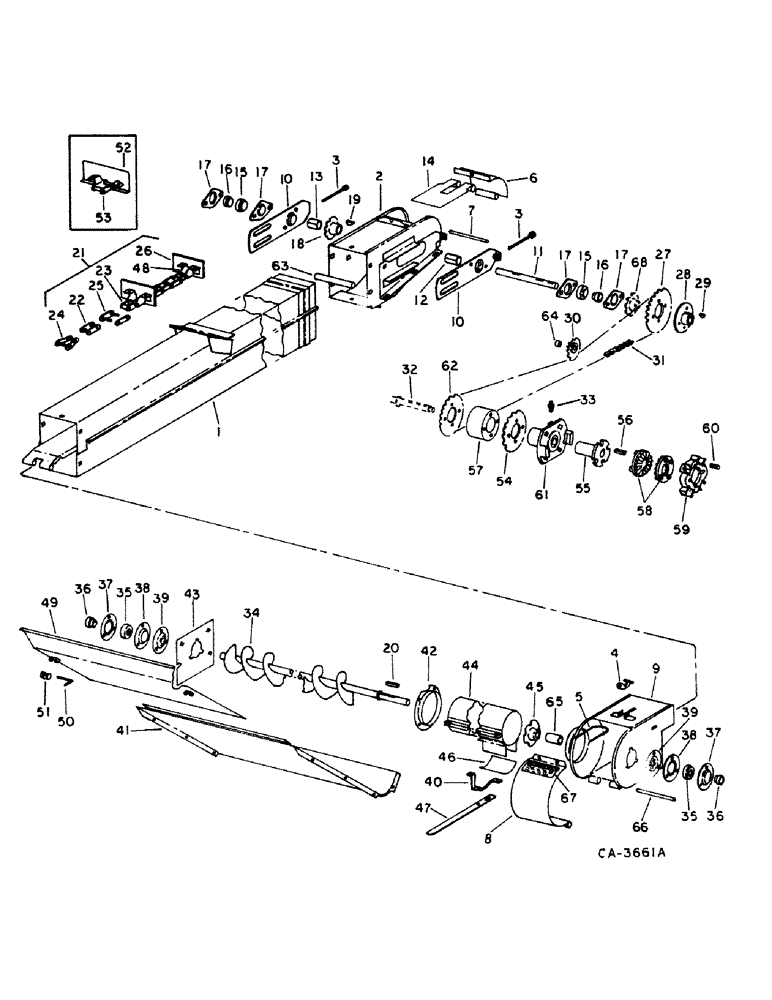

Запчасти Case IH 914 (25-6) - ELEVATORS, TAILINGS ELEVATOR Elevators

174192C91

ATTACHMENT

PERFORATED SCREENS AND DOOR, service package, includes ref. nos. 8 and 44, parts accessory

1шт.

1

169397C1

HOUSING

ASSY, tailings elevator

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

607891R1

WASHER

13/32 x 1 x 16 ga

1шт.

2

196230C1

HEAD ASSY.

HEAD ASSY, tailings elevator

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 sq-nk crg

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 sq-nk crg

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

tailings elevator conveyor bracket

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

4

155909C1

LATCH

tailings elevator boot door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 C-Z std-hd

1шт.

5

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT, tailings elevator boot door

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 znp nylon insert lock

1шт.

6

157140C1

DOOR

tailings elevator head top

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk crg

1шт.

935736R1

NUT, WING

NUT, 5/16 wing

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

7

568671R1

PIN

tailings elevator head door hinge

1шт.

8

184560C91

DOOR

tailings elevator boot, non-perforated, includes ref. no. 67

1шт.

8

174193C1

DOOR

tailings elevator boot, perforated

1шт.

9

156131C92

BOOT

ASSY, tailings elevator

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOOT, 5/16 x 1/2 sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .065

1шт.

10

170584C11

BRACKET

SUPPORT ASSY, tailings elevator head shaft bearing

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

24658R1

BOLT, 5/16 x 7 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

11

160427C1

SHAFT

tailings elevator head

1шт.

21220R1

WASHER

29/32 x 1-1/4 x 11 ga

1шт.

668752R1

WASHER

29/32 x 1-1/4 x 16 ga

1шт.

12

157243C1

SPACER

tailings elevator head shaft RH

1шт.

13

160429C1

SPACER

tailings elevator head shaft LH

1шт.

14

160430C1

SHIELD

tailings elevator head shaft

1шт.

15

160314C91

BALL BEARING,22.23mm ID x 52.05mm OD x 16.56mm W

BEARING ASSY, tailings elevator head shaft

2шт.

16

565618R11

RETAINER

COLLAR W/SET SCREW, lkg

2шт.

17

612031R1

FLANGED BEARING

tailings elevator head shaft bearing, replaces 155265C1

4шт.

18

168696C1

SPROCKET ASSY.

SPROCKET, tailings upper conveyor chain, 7 T

1шт.

19

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, 1/4 x 7/8 woodruff-hard

1шт.

20

155308C1

KEY

1/4 x 7-5/16 sq parallel-hard

1шт.

21

160432C91

CONVEYOR

W/FLIGHTS, tailings elevator, includes ref no. 26

1шт.

22

588566R91

LINK

elevator conveyor chain roller

1шт.

23

150722C91

LINK

elevator conveyor chain att

1шт.

24

588562R91

CHAIN LINK

LINK, elevator conveyor chain offset

1шт.

25

588564R11

LINK

elevator conveyor chain connecting

1шт.

26

152236C1

PADDLE

FLIGHT, tailings elevator conveyor

38шт.

558430R1

RIVET

elevator conveyor flight

1шт.

27

162180C1

SPROCKET ASSY.

SPROCKET, tailings elevator driven, 33 T

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

28

939278R1

HUB

tailings elevator driven sprkt

1шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex jam

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 sq-hd set

1шт.

29

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, 1/4 x 7/8 woodruff-hard

1шт.

30

631905R91

SPROCKET

tailings elevator dr idler, 17 T

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 C-Z sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

21/32 x 1-1/4 x 12 ga C-Z sq hole

1шт.

31

CHAIN ASSY, tailings elevator drive, use 136 links from 10 ft roll marked 1791D and one connecting link 1310D and three offset link 1315D

1шт.

32

SHAFT ASSY, elevator jackshaft, refer to this group under grain elevator drive

1шт.

33

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

1шт.

34

169433C1

AUGER

ASSY, tailings

1шт.

35

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

ASSY, tailings auger ball

2шт.

36

455102R21

COLLAR

ASSY, bearing locking

2шт.

37

937518R91

FLANGE

W/STR LUB FITTING, tailings auger bearing

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

38

937517R1

FLANGE

tailings auger brg grooved

2шт.

39

589389R1

CYLINDER END CAP

SHIELD, tailings auger brg dust

2шт.

40

169741C1

SUPPORT, tailings trough door handle

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss hd

1шт.

41

164263C91

TROUGH

ASSY, tailings

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

42

160324C21

FLANGE

ASSY, tailings auger bearing plate RH

1шт.

43

160323C1

BAR

STRIP, tailings trough left side

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

169734C1

VALVE BLOCK

SECTION ASSY, tailings trough ext, non-perforated

1шт.

44

168537C1

EXTENSION

CLAMP ASSY, tailings auger trough ext, perforated

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

45

165292C1

SPROCKET ASSY.

SPROCKET, elevator lower, 6 T

1шт.

46

169738C1

DOOR ASSY, tailings trough bottom

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

47

169740C1

BAR, tailings trough door

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

1шт.

22039R1

LOCK NUT,5/16"-18, GB

NUT, 5/16 C-Z nylon insert jam

1шт.

48

152237C91

PADDLE

FLIGHT ASSY, tailings elevator

1шт.

49

175179C1

GATE ASSY

TAILGATE ASSY, tailings trough

1шт.

50

611044R1

AXLE PIN,6.35mm OD

PIN, tailings trough tailgate lock

2шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

1шт.

51

606245R1

SPRING

tailings trough tailgate lock

2шт.

52

153299C91

CONVEYOR

FLIGHT ASSY, tailings elevator chain, steel, includes ref. no. 53 parts accessory

1шт.

53

150722C91

LINK

attaching

1шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 rd-hd

1шт.

54

164196C1

SPROCKET ASSY.

SPROCKET, elevator drive slip clutch, 26 T

1шт.

18785R1

BOLT,Hex, 3/8"-16 x 3", G2

3/8 x 3 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

55

162177C1

HOLDER

elevator slip clutch spring

1шт.

56

586879R1

KEY

5/16 x 2 square

1шт.

57

162178C1

SPACER, elevator drive slip clutch

1шт.

58

B12170

RATCHET,Clutch Slip, 94.49mm

elevator drive slip clutch

2шт.

59

632152R2

RETAINER

elevator drive slip clutch spring

1шт.

12685R1

BOLT,Sq Nk, 3/8" x 3 1/4"

3/8 x 3-1/4 znd sq-nk crg dld

1шт.

NLS

NO LONGER SERVICED

3/8 C-Z slt hex

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

60

M973

SPRING

elevator drive slip clutch

4шт.

61

162176C1

HUB

elevator drive slip clutch

1шт.

62

168686C1

SPROCKET ASSY.

SPROCKET, tailings elevator drive, 31 T

1шт.

63

568673R1

PIPE

SPACER, tailings elevator head

1шт.

64

M80215

SPACER

tailings elevator drive idler

1шт.

65

585464R1

SPACER

tailings auger shaft

1шт.

66

U17024

PIN

tailings elevator boot door hinge

1шт.

67

179749C2

PRODUCT GRAPHIC

danger

1шт.

68

SPROCKET, tailings delivery auger drive, 9 T, refer to this group under tailings delivery auger and drive

1шт.
