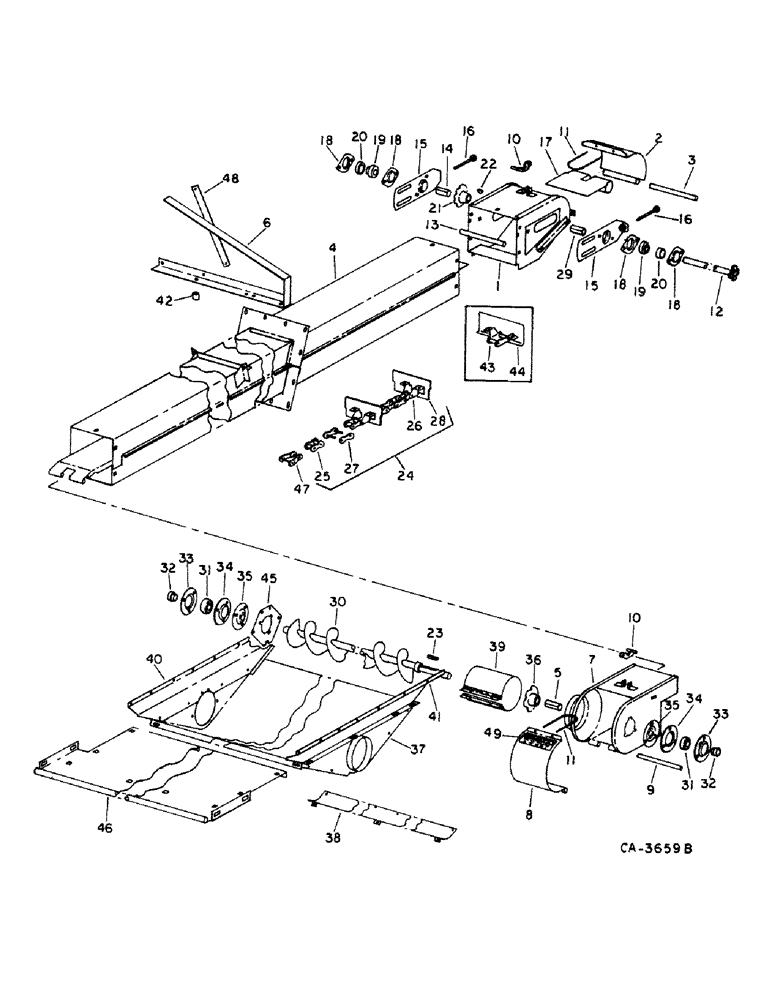

Запчасти Case IH 914 (25-1) - ELEVATORS, GRAIN ELEVATOR Elevators

174192C91

ATTACHMENT

PERFORATED SCREENS AND DOOR, service package, includes ref. nos. 8, 37, 39. and 49, parts accessory

1шт.

1

160732C92

HEAD

ASSY, grain elevator

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

160737C1

DOOR

grain elevator hd

1шт.

3

160743C1

PIN

ROD, grain elevator hd door hinge

1шт.

4

169344C1

HOUSING ASSY, grain elevator

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

106969R1

WASHER

.344 x 1-1/4 x 16 ga

1шт.

21751R1

WASHER

.406 x 1.750 x .054

1шт.

5

157207C1

SPACER

grain auger

1шт.

6

160786C1

SUPPORT, grain elevator

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

7

160744C92

BOOT

ASSY, grain elevator

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .68 x .06

1шт.

8

184559C91

FLAP

DOOR, grain elevator boot, non-perforated, includes ref. no. 49

1шт.

8

174194C1

DOOR

grain elevator boot, perforated, parts accessory

1шт.

9

160748C1

PIN

grain elevator boot door hinge

1шт.

10

155909C1

LATCH

grain elevator door

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 C-Z std-hd

1шт.

11

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT, grain elevator door

2шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 znp nylon insert lock

1шт.

12

170540C1

SHAFT

ASSY, grain elevator head

1шт.

21789R1

WASHER

1-1/32 x 1-1/4 x 16 ga C-Z

1шт.

13

160431C1

PIPE

SPACER, grain elevator hd

1шт.

14

160695C1

SPACER

grain elevator hd shaft sprocket LH

1шт.

15

170584C11

BRACKET

ASSY, grain elevator head shaft bearing

2шт.

19389R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9", Gr 2

BOLT, 5/16 x 9 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

16

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

grain elevator hd shaft

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

17

160697C1

SHIELD

grain elevator hd

1шт.

18

612031R1

FLANGED BEARING

grain elevator hd shaft brg, replaces 155265C1

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING, grain elevator hd shaft

2шт.

20

564853R11

COLLAR

W/SET SCREW, lkg

2шт.

21

168683C1

SPROCKET

grain elevator conveyor chain upper, 7 T

1шт.

22

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

23

155308C1

KEY

1/4 x 1-5/16 sq parallel-hard

1шт.

24

169374C91

CONVEYOR

W/FLIGHTS, grain elevator

1шт.

25

588566R91

LINK

grain elevator conveyor roller

1шт.

26

150722C91

LINK

grain elevator conveyor ATT

1шт.

27

588564R11

LINK

grain elevator conveyor chain connecting

1шт.

28

160709C91

RUBBER FLIGHT

FLIGHT ASSY, grain elevator conveyor

1шт.

581290R1

RIVET

conveyor chain flight

1шт.

29

157207C1

SPACER

grain elevator hd shaft sprocket RH

1шт.

30

160676C91

AUGER

ASSY, grain

1шт.

31

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

ASSY, grain auger ball

2шт.

32

455102R21

COLLAR

W/SET SCREW, locking

2шт.

33

937518R91

FLANGE

W/STR LUB FITTING, grain auger bearing

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

34

937517R1

FLANGE

grain auger brg grooved

2шт.

35

589389R1

CYLINDER END CAP

SHIELD, grain auger brg

2шт.

36

165292C1

SPROCKET ASSY.

SPROCKET, grain elevator conveyor chain lower, 6 T

1шт.

37

157212C92

TROUGH ASSY, grain auger, non-perforated

1шт.

37

161911C91

TROUGH ASSY, grain auger, perforated, parts accessory

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, 5/8-18 x 13/16 self-tap

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

1шт.

38

161914C11

COVER

ASSY, grain auger trough, not perforated

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

39

162120C91

CLAMP

ASSY, grain auger trough, non-perforated

1шт.

39

168008C1

CLAMP

ASSY, grain auger trough, perforated, parts accessory

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

40

169732C11

DEFLECTOR ASSY, grain auger trough LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

41

169733C11

DEFLECTOR ASSY, grain auger trough RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

42

482372R1

SPACER, 3/8 x 2-1/2 std pipe

2шт.

20628R1

BOLT,Hex, 3/8"-16 x 3 1/4", G2

3/8 x 3-1/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

43

150722C91

LINK

attachment

1шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 rd-hd

1шт.

44

160710C91

STEEL FLIGHT

FLIGHT ASSY, grain elevator chain, parts accessory, steel, includes ref. no. 43

1шт.

45

157168C1

SUPPORT

REINFORCEMENT, grain auger trough end LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

46

157220C1

EXTENSION, auger trough rear

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

47

588562R91

CHAIN LINK

LINK, grain elevator conveyor offset

1шт.

48

179858C1

GUSSET, elevator support

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .68 x .06

1шт.

49

179749C2

PRODUCT GRAPHIC

danger

1шт.
