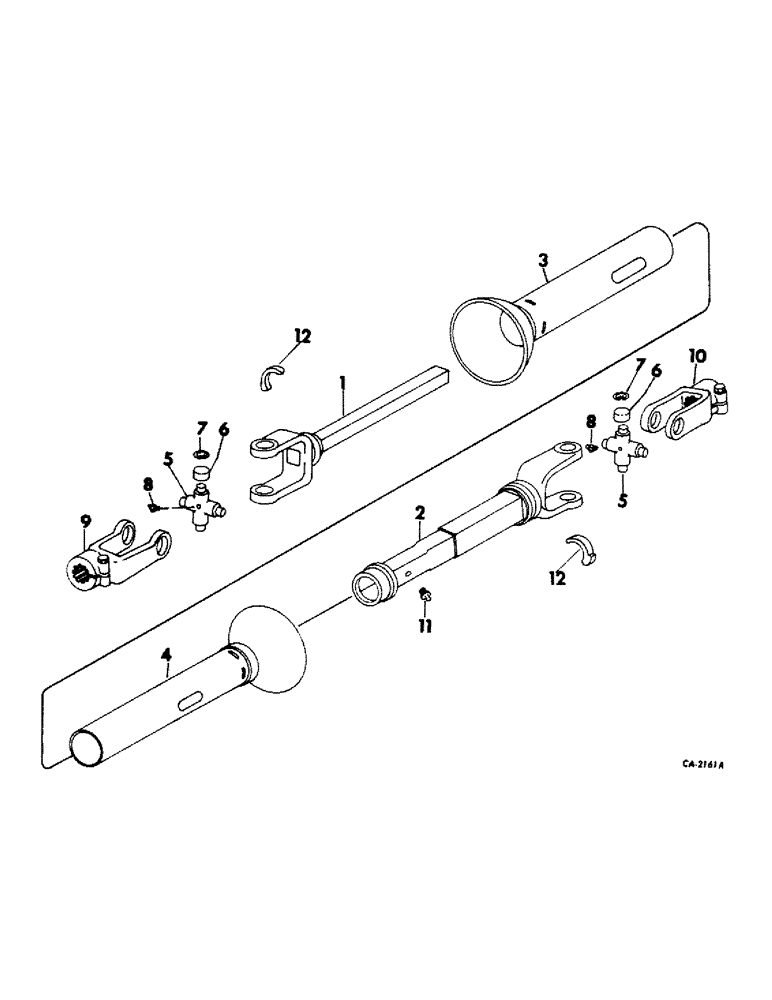

Запчасти Case IH 914 (07-5) - DRIVE TRAIN, POWER TAKE-OFF KNUCKLE, DANA WITH BLACK PLASTIC Drive Train

173847C92

KNUCKLE

w/intergal shield, PTO drive tractor to combine, includes, ref. nos. 1 thru 5

1шт.

1

174983C2

FORK

JOINT, power drive hitch front

1шт.

2

174984C2

FORK

JOINT, power drive hitch rear

1шт.

Sleeve insert is 128735A1, is 1-1/8 x 1-1/4 nylon. The dust cap is 128736A1, Required 2 pcs

1шт.

3

174982C1

SHIELD

outer front

1шт.

4

174981C1

SHIELD

inner rear

1шт.

5

174980C91

JOINT

KIT ASSY, center cross, includes ref. nos. 6 thru 8

2шт.

6

913714R11

CUP ASSY, needle

8шт.

7

495962R1

RING

snap

8шт.

8

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg

2шт.

9

174979C1

YOKE

power drive hitch front

1шт.

120371

NUT,1/2"-20, G5

1шт.

114-414

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

SCREW, 1/2 x 2-3/4 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

173848C1

YOKE

power drive hitch rear

1шт.

120371

NUT,1/2"-20, G5

1шт.

114-414

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

SCREW, 1/2 x 2-3/4 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lub

1шт.

12

542956R1

NYLON BEARING,0.312"

shield third

4шт.
