Запчасти Case IH 914 (07-4) - DRIVE TRAIN, POWER TAKE-OFF KNUCKLE, ROCKWELL WITH METAL SHIELD Drive Train

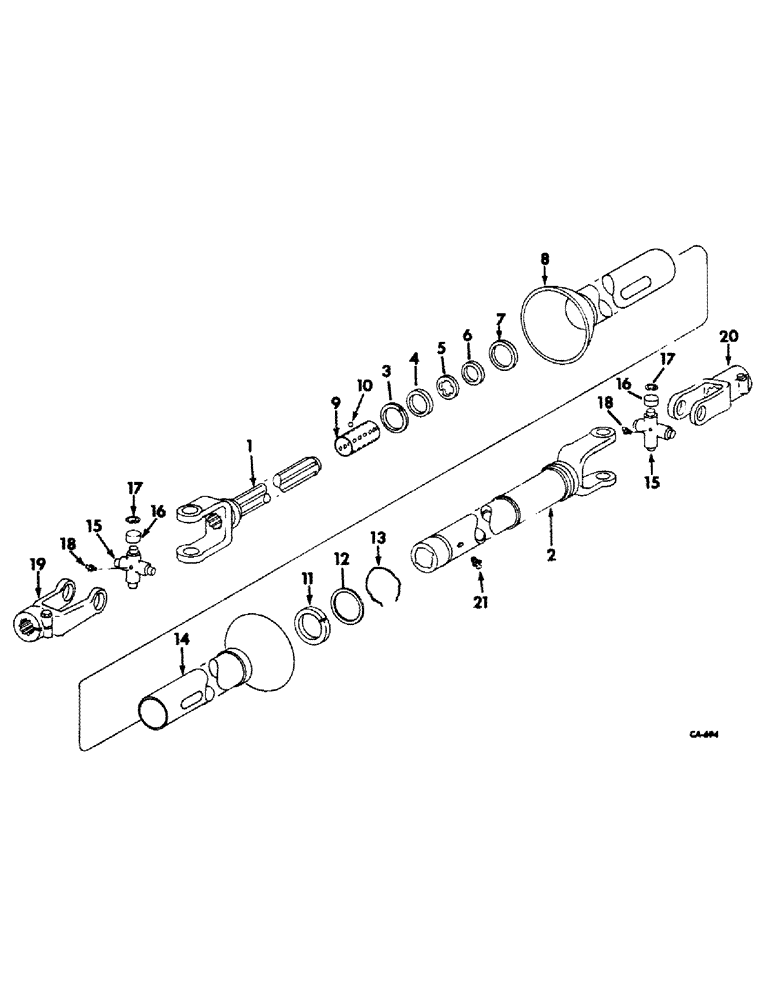

Схема запчастей Case IH 914 - (07-4) - DRIVE TRAIN, POWER TAKE-OFF KNUCKLE, ROCKWELL WITH METAL SHIELD Drive Train
5
9
12
8
16
21
14
20
18
7
13
3
2
11
10
17
6
19
18
4
15
16
1
15
17

Артикул

Название

Примечание

Количество

169944C91

JOINT

KNUCKLE, w/intergral shield, PTO drive tractor to combine, includes ref. nos. 1 thru 15, 19, 20 and 21

1шт.

1

170159C2

JOINT, power drive hitch rear

1шт.

2

170160C2

JOINT

power drive hitch front

1шт.

3

631449R1

RING, SNAP

RING, retaining

1шт.

4

631977R1

WASHER, guide

1шт.

5

673157R1

SEAL

1шт.

6

673156R1

WASHER, stop

1шт.

7

613439R1

BRACKET

BEARING, nylon support

1шт.

8

170162C2

SHIELD, outer

1шт.

9

673154R1

CAGE, ball

1шт.

10

17010R1

BALL,5/16" Dia

24шт.

11

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

NYLON

1шт.

12

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

1шт.

13

613436R1

CLAMP

RING, retaining

1шт.

14

170161C1

SHIELD, inner

1шт.

15

347960R91

U-JOINT SPIDER

KIT ASSY, center cross, includes ref. nos. 16 thru 18

2шт.

16

669563R91

NEEDLE BEARING

CUP ASSY, needle

8шт.

17

495962R1

RING

snap

8шт.

18

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg

2шт.

19

169950C1

YOKE

power drive hitch rear

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 hex-hd cap

1шт.

131101

LOCK WASHER

WASHER, LOCK, 1/2"

1шт.

20

169949C1

YOKE

power drive hitch front

1шт.

120371

NUT,1/2"-20, G5

1шт.

181710

FOOT BOARD

SCREW, 1/2 x 2-3/4 hex-hd cap

1шт.

131101

LOCK WASHER

WASHER, LOCK, 1/2"

1шт.

21

102467H

FITTING

1/4 UNF lub

1шт.

Выбрано товаров: 28
