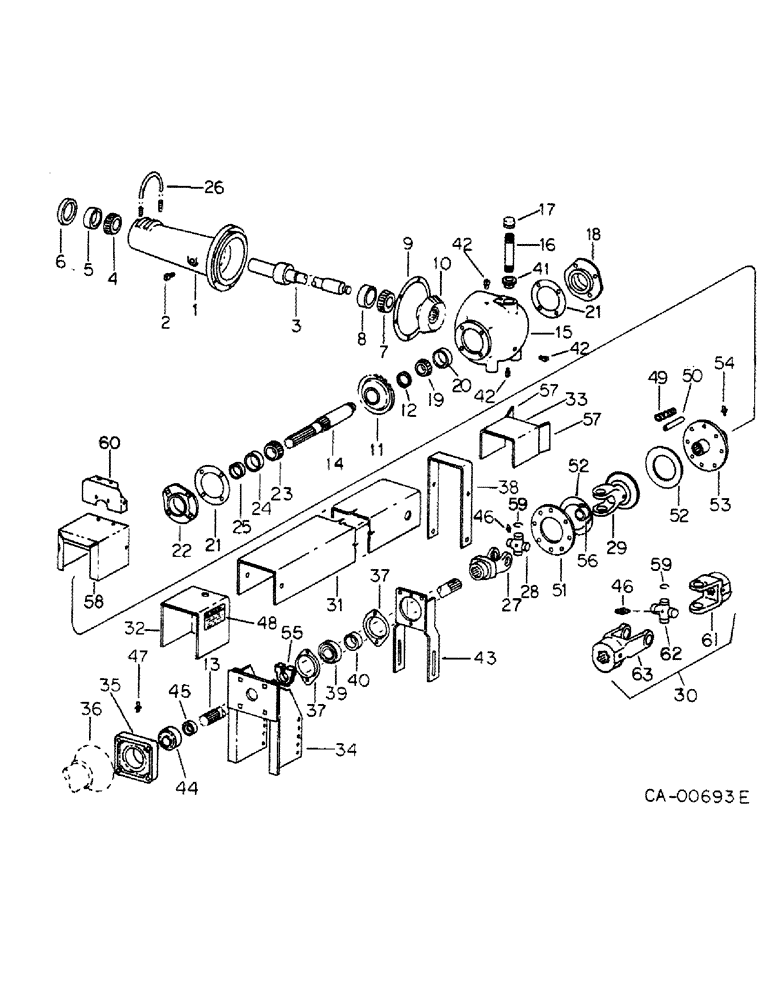

Запчасти Case IH 914 (07-1) - DRIVE TRAIN, MAIN DRIVE GEAR CASE Drive Train

169907C91

CASE ASSY, main drive, includes ref nos. 1 thru 12, 14 thru 25, 41 and 42

1шт.

1

169908C1

HOUSING, main drive output shaft

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 znd hex, hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

444619

PIPE CLAMP

PLUG, 1/4-18 C-Z hex, hd pipe

1шт.

3

169909C1

SHAFT ASSY, main drive output

1шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 C-Z slt. hex

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

21846R1

WASHER, 29/32 x 2 x 3 ga

1шт.

4

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

CONE ASSY, main drive output shaft outer

1шт.

5

478793R1

BEARING CUP

CUP, main drive output shaft outer

1шт.

6

169948C91

SEAL

main drive output shaft outer brg oil

1шт.

7

13330DB

BEARING

CONE ASSY, main drive output shaft inner

1шт.

8

13324D

BEARING CUP,2.391" ID x 3.001" OD x 0.952"

CUP, main drive output shaft inner

1шт.

9

673359R91

KIT

ASSY, gear case large shim, consists of (2) shims .020, (2) shims .007, (2) shims .005

1шт.

10

472890R2

GEAR

main driven, 21 T

1шт.

11

169915C1

GEAR, main drive, 21 T

1шт.

12

169916C1

SNAP RING

RING, main drive gear retainer

1шт.

13

169926C1

SHAFT

PTO drive

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21992R1

HEADED PIN,5/16" x 2 3/4"

PIN, 5/16 x 2-3/4 std, hd dld

1шт.

14

169918C1

SHAFT

main drive input

1шт.

15

674403R1

HOUSING

CASE, main drive gear

1шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 znd hex, hd mach

1шт.

18821R1

BOLT

5/8 x 1-1/4 znd hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

192078

NIPPLE, LUBE,Nipple, 1/2" NPT x 3"

NIPPLE, 1/2 x 3 C-Z pipe

1шт.

17

169919C1

CAP, gear case filler and vent

1шт.

18

466298R1

COVER, main drive gear case

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex, hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

19

573324R91

ROLLER BEARING,1" ID

CONE ASSY, main drive input shaft gear

1шт.

20

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP, main drive input shaft rear brg

1шт.

21

673358R91

PACKAGE

KIT ASSY, gear case small shims, consists of (2) shims .020, (2) shims .007, (2) shims .005

1шт.

22

169923C1

CAP

gear case front

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 znd hex-h cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

23

459454R91

ROLLER BEARING,1.563" ID x 1.01"

CONE ASSY, gear case front cap

1шт.

24

13324D

BEARING CUP,2.391" ID x 3.001" OD x 0.952"

CUP, gear case front

1шт.

25

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL, gear case front

1шт.

26

169924C1

BOLT,1/2" - 13 x 4.50" W x 5.50" L

U-BOLT, main drive gear case

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

27

171859C1

YOKE

splined note one, note two

1шт.

28

493849R91

KIT

center cross note one, note two

1шт.

29

546938R1

YOKE

and flange w/bushing, includes ref. nos 56, note one, note two

1шт.

30

171858C91

JOINT

KNUCKLE ASSY, PTP drive shaft, incl ref. nos. 46, 61, 62 and 63, note one

1шт.

30

173849C91

JOINT

KNUCKLE ASSY, PTO drive shaft, includes ref. nos. 61, 62, and 63, note one

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 znd nylon insert

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

SCREW, 5/16 x 3 znd hex-hd cap

1шт.

187147

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

SCREW, 5/16 x 3-1/2 znd hex-hd cap

1шт.

31

187288C91

SHIELD ASSY, PTO drive shaft, serial no. 26000 and below

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

31

180727C91

SHIELD ASSY, PTO drive shaft, note one, note two

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

32

180547C91

SHIELD, PTO drive front, includes ref. no. 48

1шт.

33

169935C2

SUPPORT ASSY, PTO drive shield rear, serial no. 26000 and below

1шт.

34

169940C1

BRACKET ASSY, PTO drive shaft front brg mounting

1шт.

20175R1

BOLT, 1/2 x 6-1/2 type 1

1шт.

18819R1

BOLT (SPREADER),Hex, 1/2"-13 x 8", G2

BOLT, 1/2 x 8 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

35

597502R91

BEARING ASSY,1.375" ID x 2.109375" OD x 2.125"

HOUSING BRG ASSY, PTO drive shaft front, incl ref. nos. 44, 45 and 47

1шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

36

KNUCKLE, w/intergal shield, refer to this group under power take-off

1шт.

37

599382R1

FLANGED BEARING

drive shaft center brg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/j znd sq-nk

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

38

169946C1

SUPPORT, drive shaft shield rear

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

1шт.

20175R1

BOLT, 1/2 x 6-1/2 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

39

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

ASSY, PTO shaft center

2шт.

40

517645R11

COLLAR

w/set screw lkg

2шт.

41

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

BUSHING, 1 x 1/2 reducer pipe

1шт.

42

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 C-Z sq-hd pipe

4шт.

43

169937C1

SUPPORT ASSY, PTO drive shaft center bearing

2шт.

20175R1

BOLT, 1/2 x 6-1/2 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

44

470597R91

BEARING, BALL,1.25" ID x 72 mm OD x 2.0156"

BEARING

1шт.

45

517645R11

COLLAR

ASSY, locking w/set screw

1шт.

46

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg

1шт.

47

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

1шт.

48

61907C1

DECAL

PRODUCT GRAPHIC, caution instruction

1шт.

49

C13263

SPRING

clutch, note one, note two

8шт.

19278R1

BOLT, 1/2 x 4-3/4 type 1

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

50

811724C1

SPACER

clutch spring, note one, note two

1шт.

51

466296R1

RETAINER

PLATE, clutch, note one, note two

1шт.

52

474599R2

FACING

DISC, friction, note one, note two

2шт.

53

197584C1

PLATE

ASSY, clutch, note one, note two

1шт.

54

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS straight, note one, note two

1шт.

55

654435R1

COLLAR

CLAMP, PTO drive shaft, note one, note two

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

56

546778R1

BUSHING

yoke, note one, note two

1шт.

57

187361C1

SUPPORT, shield tab, note one, note two

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt- truss-hd

1шт.

58

184812C1

SHIELD ASSY, clutch, note one, note two

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

59

540057R1

RING

retaining

4шт.

60

184814C1

SUPPORT, clutch shield

1шт.

61

171860C1

YOKE

for 171858C91 knuckle assy, note one

1шт.

61

173851C1

YOKE, for 173849C91 knuckle assy, note one

1шт.

62

493849R91

KIT

center cross, for 171858C91 knuckle assy, includes ref. nos. 46 and 59, note one

1шт.

62

913774R91

KIT

center cross, for 173849C91 knuckle assy, note one

1шт.

63

171859C1

YOKE

for 171858C91 knuckle assy, note one

1шт.

63

173850C1

YOKE, for 17384C91 knuckle assy, note one

1шт.
