Запчасти Case IH 914 (02-5) - MISCELLANEOUS, SERVICE PACKAGES Accessories & Attachments / Miscellaneous

173039C92

KIT

1шт.

KIT ASSY, product graphic service, consists of, caution, grain tank, caution, power drive, caution, straw spreader, combine instruction, concave adjustment, concave control handle, danger instruction, danger, straw chopper, fan speed control, concave clearance, switch box control, windrow special, safety and oper inst, be careful, wheel bolt nut torque, danger keep off machine, operating caution, PTO drive speed, important grain elevator safety, danger, fan speed indicator, hitching instructions

1шт.

547494R92

DECAL

KIT ASSY, product graphic IH trade mark

1шт.

547496R92

DECAL

KIT ASSY, product graphic trade mark

1шт.

547497R92

DECAL

KIT ASSY, product graphic model designation

1шт.

547495R92

DECAL KIT

KIT ASSY, product graphic trade mark

1шт.

184544C1

PRODUCT GRAPHIC

caution combine instruction

2шт.

179749C2

PRODUCT GRAPHIC

danger instruction

4шт.

184624C1

PRODUCT GRAPHIC

knife and reel

1шт.

61907C1

DECAL

PRODUCT GRAPHIC, operating caution

1шт.

174958C3

PRODUCT GRAPHIC

safety

1шт.

56630C1

PRODUCT GRAPHIC

be careful, English

2шт.

2754442R1

PRODUCT GRAPHIC

danger do not ride

2шт.

170714C1

DECAL

PRODUCT GRAPHIC, safety instructions

1шт.

188197C2

PRODUCT GRAPHIC

caution grain tank

1шт.

64553C1

DECAL

PRODUCT GRAPHIC, caution power drive

1шт.

174732C1

REFLECTOR

amber

1шт.

175311C1

REFLECTOR

red

2шт.

1

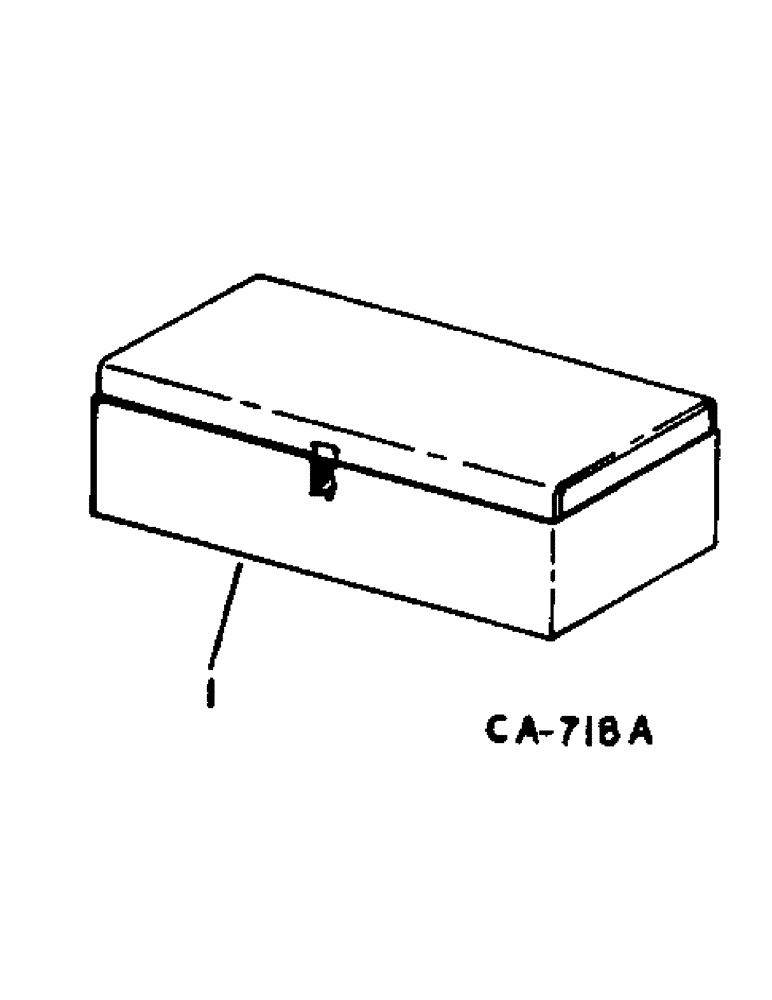

400455R1

BOX, TOOL

BOX ASSY, tool

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex, hd mach, tool box

1шт.

19289R1

BOLT, 1/2 x 3/4 C-Z hex, hd mach, tool box

1шт.

120377

NUT,3/8" - 16, Gr 5

Tool box 3/8"-16, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Tool box 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Tool box 3/8"

1шт.

120384

WASHER,1/2"

LOCK, , Tool box 1/2"

1шт.
