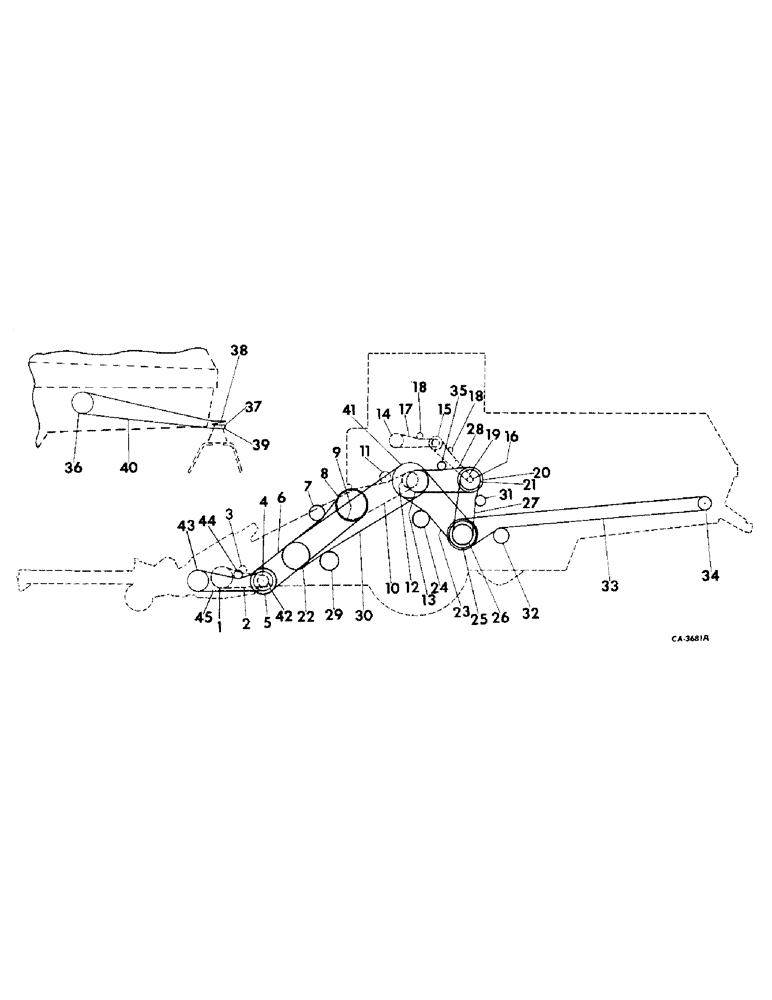

Запчасти Case IH 914 (02-1) - MISCELLANEOUS, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, LEFT SIDE Accessories & Attachments / Miscellaneous

1

177966C1

SPROCKET ASSY.

SPROCKET W/BUSHINGS, auger drive, 47 T, refer to group 33 under header jackshaft and auger drive

1шт.

2

CHAIN ASSY, auger drive, refer to group 33 under header jackshaft and auger drive

1шт.

3

571441R91

SPROCKET ASSY.,15T

SPROCKET, idler, 15 T, refer to group 33 under header jackshaft and auger drive

1шт.

4

177965C1

SPROCKET ASSY.

SPROCKET, auger drive, 18 T, refer to group 33 under header jackshaft and auger drive

1шт.

5

176568C1

PULLEY

jackshaft driven, 13.5 in. OD, refer to group 33 under header jackshaft and auger drive

1шт.

6

176576C1

BELT,0.879" W x 195.99" L

V-BELT , Feeder jackshaft drive, Refer to group 33 under header jackshaft and auger drive 0.879" W x 195.99" L

1шт.

7

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, feeder jackshaft drive tightener, 8 in. OD, refer to group 33 under header jackshaft and auger drive

1шт.

8

176564C1

PULLEY

feeder jackshaft drive, 16.7 in. OD, refer to group 33 under header jackshaft and auger drive

1шт.

9

175970C1

SPROCKET ASSY.

SPROCKET, feeder driven, 49 T, refer to group 33 under feeder drive and electric clutch

1шт.

10

CHAIN ASSY, feeder drive, refer to group 33 under feeder drive and electric clutch

1шт.

11

172079C91

SPROCKET ASSY.

SPROCKET, feeder chain tightener, 19 T, refer to group 33 under feeder drive and electric clutch

1шт.

12

172665C1

SPROCKET ASSY.

SPROCKET, feeder drive, 26 T, refer to group 33 under feeder drive and electric clutch

1шт.

13

626769R3

PULLEY, unloader auger driven, 10.50 in. OD, refer to group 26 under grain tank unloader auger drive

1шт.

14

160107C91

SPROCKET ASSY.

SPROCKET ASSY, grain tank front auger driven, 40 T, refer to group 26 under grain tank, supports, auger and drive

1шт.

15

160547C91

SPROCKET ASSY, grain tank bottom auger drive, 45 T and 26 T, refer to group 26 under grain tank, supports, auger and drive

1шт.

16

169802C2

SPROCKET ASSY.

SPROCKET ASSY, grain tank bottom rear auger drive, 19 T, refer to group 26 under grain tank, supports, auger and drive

1шт.

17

CHAIN ASSY, grain tank front auger, refer to group 26 under grain tank, supports, auger and drive

1шт.

18

936878R1

BLOCK

grain tank front and rear auger drive chain tightener, refer to group 26 under grain tank, supports, auger and drive

2шт.

19

CHAIN ASSY, grain tank rear auger drive, refer to group 26 under grain tank, supports, auger and drive

1шт.

20

169806C1

PULLEY, unloader auger drive, 10.50 in. OD, refer to group 26 under grain tank unloader auger drive

1шт.

21

155718C11

PULLEY

ASSY, unloader upper jackshaft driven, 13 in. OD, refer to group 26 under grain tank unloader auger drive

1шт.

22

169853C2

PULLEY, cylinder beater drive, 14 in. OD, refer to group 21 under cylinder beater drive

1шт.

23

169708C1

V-BELT,1.26" W x 133.88" L

Fan Drive Cross Shaft, Refer to Group 24 Under Fan Drive 1.26" W x 133.88" L

1шт.

24

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

fan cross shaft drive belt tightener, 8.75 in. OD, refer to group 24 under fan drive

1шт.

25

179864C1

PULLEY, fan cross shaft driven and straw chopper drive, 14.16 and 16.75 in. OD, refer to group 24 under fan drive

1шт.

26

179859C1

PULLEY

unloader upper jackshaft drive, 10.38 in. OD, refer to group 26 under grain tank unloader auger drive

1шт.

27

169827C1

V-BELT,0.88" W x 97.49" L

Unloader Jackshaft Drive, Refer to Group 26 Under Grain Tank Unloader Auger Drive 0.88" W x 97.49" L

1шт.

28

569692R1

V-BELT,0.88" W

Unloader auger drive, Refer to group 26 under grain tank unloader auger drive 0.88" W

1шт.

29

173115C91

PULLEY ASSY.

PULLEY, cylinder beater drive belt tightener, 10 in. OD, refer to group 21 under cylinder beater drive

1шт.

30

166598C2

V-BELT,0.63" W x 199.87" L, 3 Ribs

Cylinder Beater Drive, Refer to Group 21 Under Cylinder Beater Drive 0.63" W x 199.87" L, 3 Ribs

1шт.

31

170146C1

PULLEY

jackshaft drive belt tightener, 5.75 in. OD, refer to group 26 under grain tank unloader auger drive

1шт.

32

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

straw chopper dr belt tightener, 8.75 in. OD, refer to group 20 under straw chopper drive

1шт.

33

174637C1

BELT,0.879" W x 305.97" L

V-BELT , Straw chopper drive, Refer to group 20 under straw chopper drive 0.879" W x 305.97" L

1шт.

34

170495C2

PULLEY

ASSY, straw chopper driven, 7 in. OD, refer to group 20 under straw chopper drive

1шт.

35

564745R91

PULLEY

ASSY, unloader auger drive belt tightener, 6.25 in. OD, refer to group 26 under grain tank unloader auger drive

1шт.

36

584967R11

PULLEY

ASSY, straw spreader drive, 9.81 in. OD, refer to group 20 under straw spreader

1шт.

37

48252K

PULLEY ASSY.

PULLEY, straw spreader drive belt tightener, 4-3/4 in. OD, refer to group 20 under straw spreader

1шт.

38

21712K

PULLEY ASSY.

PULLEY, straw spreader driven, 5-3/4 in. OD, refer to group 20 under straw spreader

1шт.

39

17876K

PULLEY ASSY.

PULLEY ASSY, straw spreader drive belt idler, 5-1/8 in. OD, refer to group 20 under straw spreader

1шт.

40

196371C1

BELT,0.630" W x 222.59" L

V-BELT , Straw spreader drive, Refer to group 20 under straw spreader 0.630" W x 222.59" L

1шт.

41

169854C1

PULLEY, cylinder beater driven, 18-11/16 in. OD, refer to group 21 under cylinder beater drive

1шт.

42

184815C1

PULLEY ASSY.

PULLEY ASSY, knife drive, 10-1/2 in. OD, refer to group 33 under knife and knife drive

1шт.

43

197611C2

X

PULLEY, rotary drive, 10-1/2 in. OD

1шт.

43

182074C1

PULLEY

wobble drive, 10-1/2 in. OD, refer to group 33 under knife and knife drive

1шт.

44

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

W/BEARING, knife drive idler, 8-3/4 in. OD, refer to group 33 under knife and knife drive

1шт.

45

178019C1

BELT,0.879" W x 102.74" L

V-BELT , Knife drive, OC, Refer to group 33 under knife and knife drive 0.879" W x 102.74" L

1шт.
