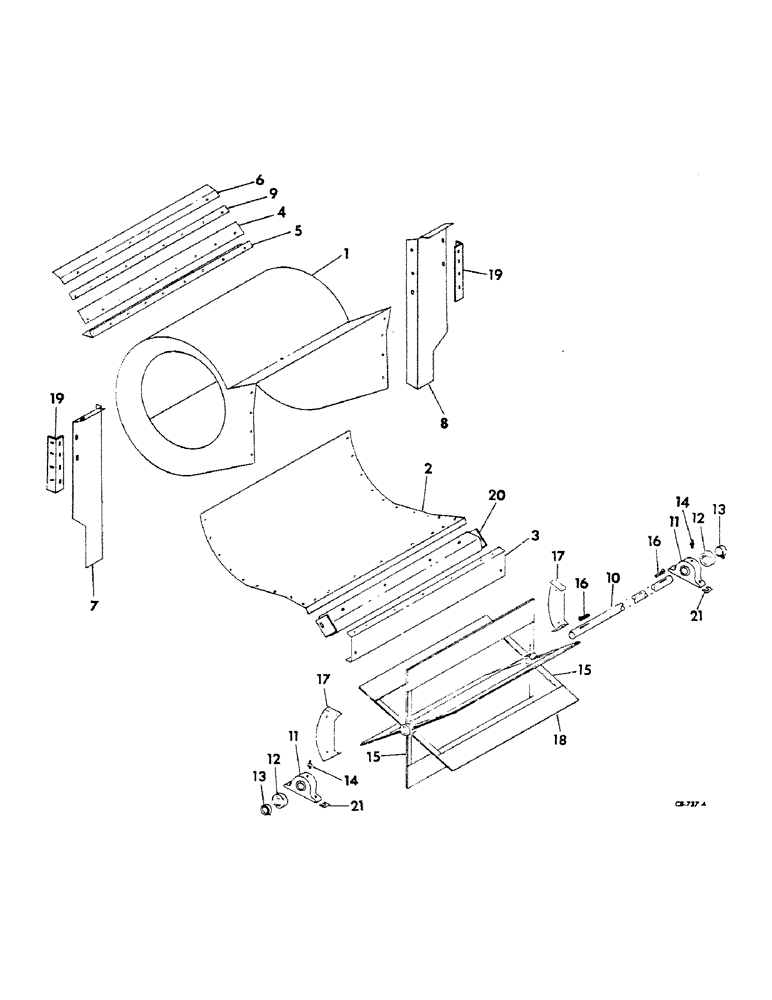

Запчасти Case IH 914 (24-2) - CLEANING FAN AND DRIVE, FAN AND FAN HOUSING (15) - CLEANING

1

169691C1

HOUSING ASSY, fan

1шт.

2

169695C2

SHEET, fan housing bottom

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

22шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

10шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

12шт.

3

169696C2

EXTENSION

grain auger trough

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

7шт.

120376

NUT,5/16"-18, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

5шт.

4

169697C1

SEAL, fan housing top

1шт.

5

169698C1

SUPPORT, fan housing top seal

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

10шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C=Z slt-truss-hd

10шт.

6

169699C1

SEAL, grain pan face

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

4шт.

7

169700C1

SHEET, fan housing left filler, serial no. 725 and below

1шт.

7

173832C1

SHEET, fan housing left filler, serial no. 726 and above

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

5шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

5шт.

8

169701C1

SHEET, fan housing right filler, serial no. 725 and below

1шт.

8

173833C1

SHEET, fan housing right filler, serial no. 726 and above

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

5шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

5шт.

9

169702C1

STIFFENER, fan seal

1шт.

10

169703C1

SHAFT, fan

1шт.

11

173562C91

BEARING W/PILLOW BLOCK FAN SHAFT

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 znd hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

23042R1

WASHER

17/32 x 1 x 22 ga C-Z

4шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

4шт.

12

156030C91

BEARING

ASSY, fan shaft

2шт.

13

455104R11

COLLAR

W/SET SCREW LKG

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup pt set

2шт.

14

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

15

161336C91

SPIDER ASSY, fan

2шт.

16

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib hd

2шт.

17

169706C1

BRACE

fan blade

12шт.

18

169707C1

BLADE

fan

6шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

19

173831C1

ANGLE, fan housing filler sheet, serial no. 726 and above

2шт.

20

173834C1

SUPPORT ASSY, fan rear, serial no. 726 and above

1шт.

21

935915R1

SHIM,33.02mm OD x 0.38mm Thk

fan bearing

4шт.
