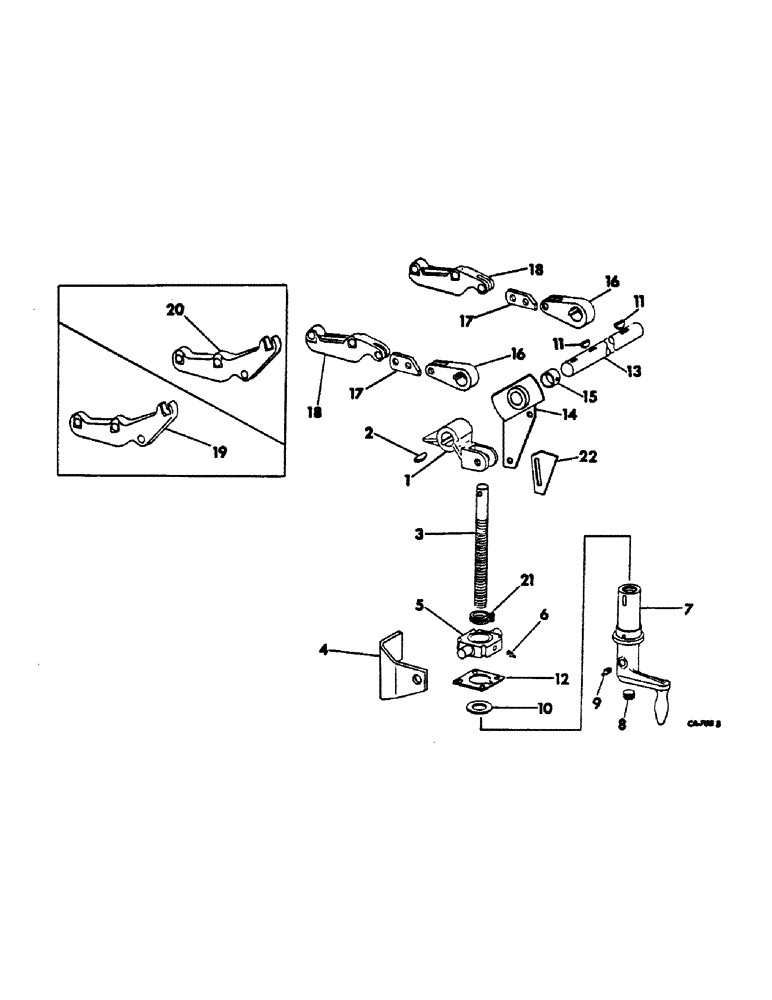

Запчасти Case IH 914 (21-19) - THRESHING CYLINDER AND CONCAVE, CONCAVE CONTROL (14) - THRESHING

1

169867C1

ARM, concave adj

1шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex. jam

1шт.

106839

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16 x 1 sq-hd dog pt set

1шт.

2

124554

O-RING

5/16 x 1 woodruff

1шт.

3

169868C1

ROD, concave adjusting

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

1шт.

4

169869C1

SUPPORT, concave adj

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

169870C1

PIVOT, concave control crank

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

7

157749C2

CRANK, concave control

1шт.

520177R1

PIN

qa cot

1шт.

8

143992

PLUG,Slotted, 1/4" NPT

1/4-28-18 CZ slt-hdls pipe

1шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

1шт.

10

21718R1

WASHER

1-17/32 x 2-1/4 x 11 ga C-Z

1шт.

11

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 woodruff

2шт.

12

157748C1

BAR, concave control crank pivot cover

1шт.

18657R1

BOLT,Hex, 1/4"-20 x 1-1/2", G2

1/4 x 1-1/2 C-Z hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

4шт.

13

157789C2

SHAFT

concave control arm pivot

1шт.

14

170421C1

ARM ASSY, concave control leveling, includes ref. no. 15

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

15

454172R1

BUSHING

concave control leveling arm hub

1шт.

16

157569C2

ARM

concave control front

2шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex jam

2шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 C-Z sq-hd cup-pt set

2шт.

17

157871C2

BAR

concave control front arm support

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

103498

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 rod end

4шт.

18

158004C2

LEVER

concave front support, grain

2шт.

19

157931C1

LEVER, concave frt support left, windrow special

1шт.

20

157932C1

LEVER, concave frt support right, windrow special

1шт.

21

363165R1

CLAMP

concave control crank rod

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

174816C1

STOP, concave

1шт.
