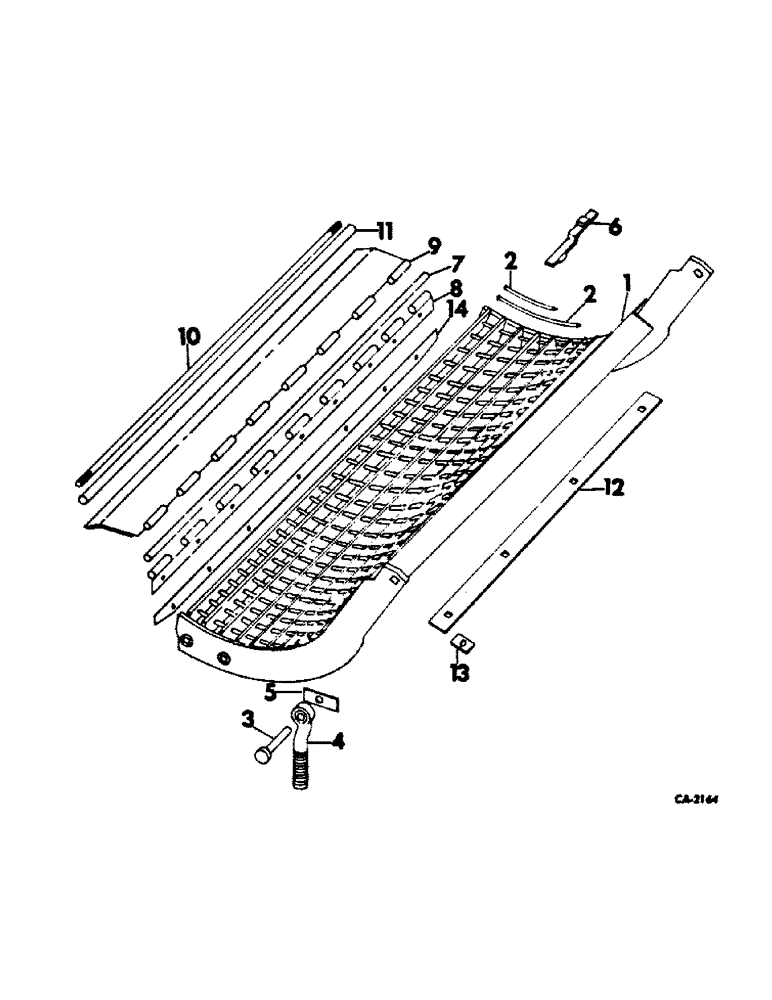

Запчасти Case IH 914 (21-18) - THRESHING CYLINDER AND CONCAVE, CONCAVE AND EXTENSION (14) - THRESHING

1

633581R93

CONCAVE

ASSY, low wire, includes ref. nos. 2 and 3

1шт.

2

564023R1

ELECTRICAL WIRE

ROD, concave plain

59шт.

2

565571R1

ELECTRICAL WIRE

ROD, concave half

58шт.

3

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/4 znd no. 3 plow type 4

4шт.

19081R1

BOLT,5/8"-11 x 2", G2, Full Thd

5/8 x 23 znd no. 3 plow

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

2шт.

21434R1

NUT,5/8"-11, G8

5/8 znd hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

366866C1

LOCK WASHER,5/8"

5/8"

2шт.

4

157641C1

BOLT, concave rear adj

2шт.

280954

NUT,3/4"-10, G5

4шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

4шт.

5

565572R1

SEALING STRIP

concave rear adj bolt slt

2шт.

6

634626R91

SUPPORT

GAGE ASSY, concave and cyl check

1шт.

7

589528R1

ROD, concave frt ext hinge, windrow special

1шт.

8

629686R1

HINGE

concave frt ext, windrow special

1шт.

181696

1/2-20 x 1 C-Z hex-hd cap

7шт.

120384

WASHER,1/2"

LOCK, 1/2"

7шт.

9

634253R1

EXTENSION, concave frt, windrow special

1шт.

10

151187C1

ROD, concave ext support, windrow special

1шт.

482253R1

NUT, 1/2 C-Z flange lock

2шт.

11

160929C1

PIPE, concave ext support, windrow special

1шт.

12

654924R1

BAR

STRAP, concave filler, special

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

3587H

WASHER, 13/32 x 9/16 x 16 ga

12шт.

13

585209R1

WASHER, concave filler strap bolt, special

9шт.

14

632069R1

RETAINER, concave rod front

1шт.
