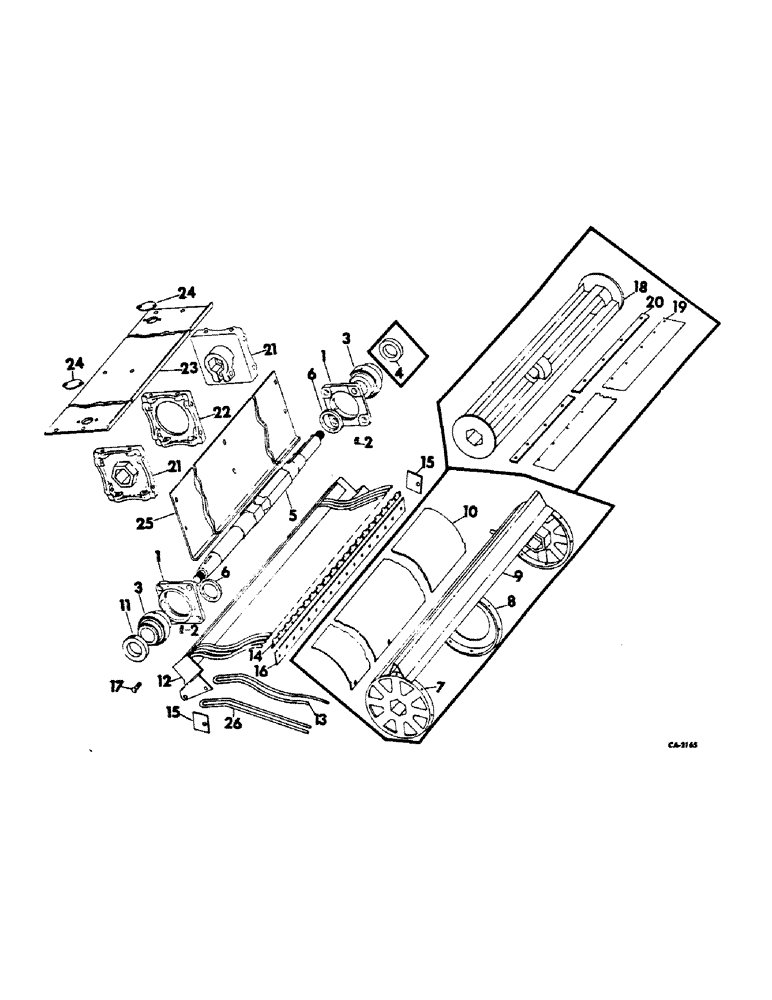

Запчасти Case IH 914 (21-16) - THRESHING CYLINDER AND CONCAVE, CYLINDER BEATER AND GRATE (14) - THRESHING

1

160073C11

HOUSING ASSY, cyl beater brg, includes ref. no. 3, serial no. 1437 and below

2шт.

1

172317C11

HOUSING

W/BRG, cyl beater, includes ref. no. 3, serial no. 1440 and above

2шт.

2

16964R91

FITTING

1/4-28 x 90 deg angle lub

2шт.

3

160080C91

BALL BEARING,2.188" ID x 100 mm OD x 2.1875"

BEARING ASSY, cyl beater ball, serial no. 1439 and below

2шт.

3

172406C91

BEARING ASSY,55.56mm ID x 100mm OD x 25mm W

cyl beater ball, serial no. 1440 and above (Replaces 172406C1)

2шт.

4

160082C91

SEAL

SEAL, cyl beater brg, serial no. 1439 and below

2шт.

5

160196C31

SHAFT

ASSY, cylinder beater

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-1/4 C-Z hex. lock

2шт.

577129R1

WASHER, 1-1/32 x 1-11/16 x 3/16

2шт.

21906R1

WASHER, 1-1/32 x 2 x 22 ga C-Z

5шт.

U14294

WASHER

1-15/16 x 2-7/8 x 16 ga

4шт.

6

160236C1

BUSHING

SPACER, cyl beater shaft inner

2шт.

7

160074C1

HUB, cyl beater outer, serial no. 1439 and below

2шт.

8

166987C1

HUB, cly beater center, serial no. 1439 and below

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

469668R1

WASHER

13/32 x 1 x 16 ga C-Z

24шт.

9

157999C1

STRIP, cylinder beater, serial no. 1439 and below

4шт.

10

169861C1

COVER, beater strip, serial no. 1439 and below

4шт.

11

612023R11

COLLAR ASSY.

COLLAR ASSY, cylinder beater shaft brg LH

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 x hex-sco-hd cup-pt set

2шт.

12

175846C91

GRATE ASSY, cylinder beater finger

1шт.

13

170418C2

FINGER

cylinder beater grate, curved finger

27шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

27шт.

120377

NUT,3/8" - 16, Gr 5

27шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

27шт.

14

582715R1

CLAMP, cyl beater grate finger

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

15

568276R1

SEAL, cyl beater grate adj slot

2шт.

16

170534C2

STRAP, finger clamp

1шт.

17

152257C2

BOLT, cyl beater finger grate mounting

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

18

161934C91

BEATER ASSY, cylinder, flexible blade beater optional

1шт.

19

161937C1

FLAP, cylinder beater, flexible blade beater optional

4шт.

20

161938C1

BAR, cylinder beater flat, flexible blade beater optional

4шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

32шт.

NLS

NO LONGER SERVICED

NUT, 5/16 C-Z hex.

32шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

32шт.

21

174769C1

HUB

cyl beater end, serial no. 1440 and above

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

22

174770C1

HUB, cly beater center, serial no. 1140 and above

1шт.

23

174773C1

BLADE

cyl beater first, serial no. 1440 and above

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 znd hex-hd flange lock

6шт.

24

634728R1

COVER

hub bolt access hole, serial no. 1440 and above

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 C-Z hex-hd tap

4шт.

25

174774C1

BLADE

cyl beater, serial no. 1440 and above

3шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 znd hex-hd flange lock

18шт.

26

174767C1

FINGER

cyl beater grate, straight fingers

27шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

27шт.

120377

NUT,3/8" - 16, Gr 5

27шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

27шт.
