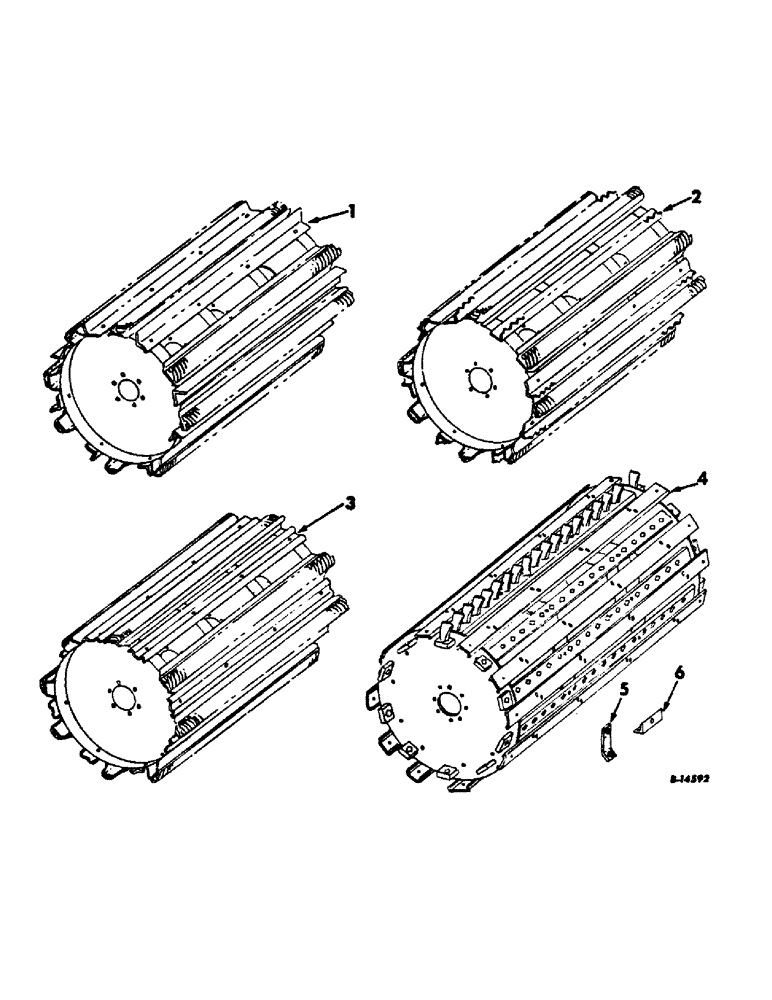

Запчасти Case IH 914 (21-10) - THRESHING CYLINDER AND CONCAVE, SPECIAL CYLINDER BARS (14) - THRESHING

1

633619R92

BAR ASSY, smooth cylinder

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

2

633618R2

BAR, notched cylinder

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

3

633622R2

BAR, cylinder steel filler

8шт.

120377

NUT,3/8" - 16, Gr 5

24шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

32шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

32шт.

4

164686C1

CHANNEL, cylinder filler LH, for spike tooth cylinder, serial no. 1439 and below

5шт.

4

175316C1

CHANNEL, cyl filler LH, for spike tooth cylinder, serial no. 1440 and above

5шт.

4

164687C1

CHANNEL, cylinder filler RH, for spike tooth cylinder, serial no. 1439 and below

5шт.

4

175317C1

CHANNEL, cyl filler RH, for spike tooth cylinder, serial no. 1440 and above

5шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 C-Z hex-hd

50шт.

366864C1

LOCK WASHER,1/2"

1/2"

50шт.

5

162006C11

RETAINER ASSY, filler bar, for spike tooth cylinder

40шт.

6

162007C11

ANGLE ASSY, cylinder filler channel support, for spike tooth cylinder

20шт.

151629R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

SCREW, 3/8 x 1 C-Z hex-hd cap

40шт.

366862C1

LOCK WASHER,3/8"

3/8"

40шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

80шт.
