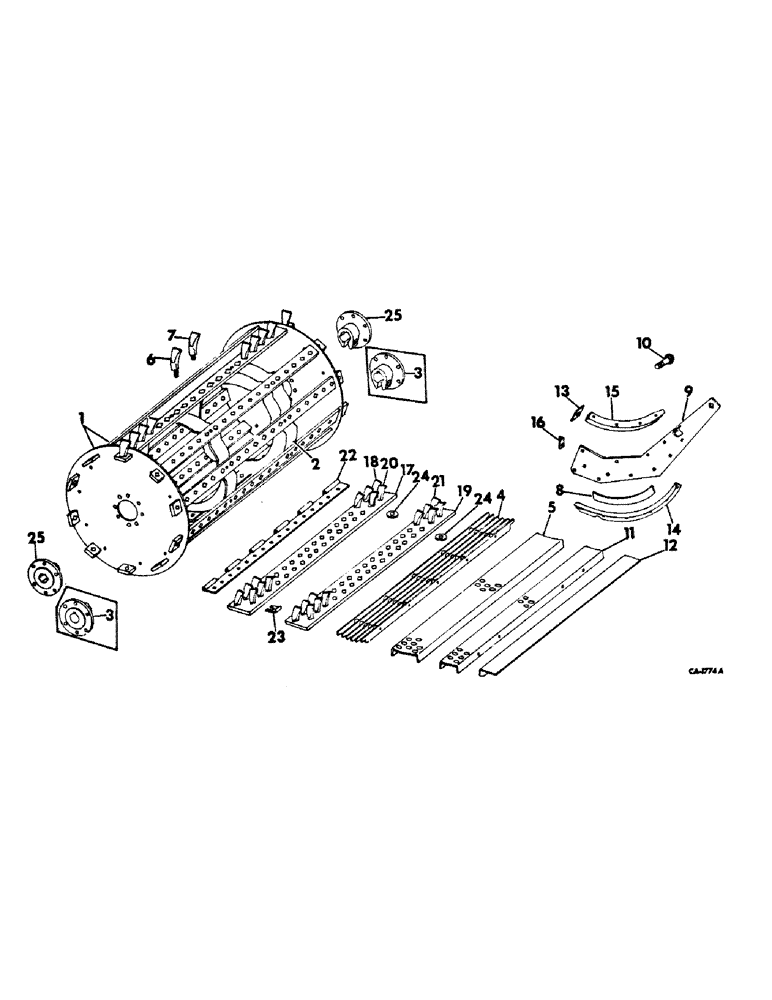

Запчасти Case IH 914 (21-08) - THRESHING CYLINDER AND CONCAVE, SPIKE TOOTH CYLINDER (14) - THRESHING

1

160069C91

CYLINDER ASSY LESS SHAFT, includes ref. nos. 2, 3, 6 and 7, serial no. 1439 and below

1шт.

1

172308C91

CYLINDER ASSY, skike tooth, includes ref. nos. 2, 3, 6 and 7, serial no. 1440 and above

1шт.

2

567891R1

HEAD, cylinder center

3шт.

104118

RIVET, 3/8 x 1-5/8 b-hd

30шт.

3

160066C1

HUB, cylinder, serial no. 1439 and below

2шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

104115

RIVET,But Hd, 3/8" x 1 1/4"

3/8 x 1-1/4 b-hd

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

582758R91

GRATE ASSY, concave bar

2шт.

5

588845R91

GRATE, concave

2шт.

6

155992C2

TOOTH

cylinder middle

30шт.

124583

BRAKE SHOE

NUT, 9/16 C-Z hex

30шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

30шт.

7

155993C2

TOOTH

cylinder

200шт.

124583

BRAKE SHOE

NUT, 9/16 C-Z hex

200шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

200шт.

8

587764R1

SHIM

concave adj

8шт.

9

567901R11

SUPPORT ASSY, concave LH

1шт.

9

567902R11

SUPPORT ASSY, concave RH

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z no. 3 plow

20шт.

120377

NUT,3/8" - 16, Gr 5

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

10

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/4 no. 3 plow type 4

4шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 znp sq-nk crg

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

4шт.

11

588847R91

GRATE, concave rear

1шт.

12

582762R1

EXTENSION, concave rear

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

13

567908R1

BAR

CLIP, concave lkg

2шт.

14

568137R1

RETAINER, concave lower LH

1шт.

14

568138R1

RETAINER, concave lower RH

1шт.

15

568135R1

SUPPORT

RETAINER, concave upper LH

1шт.

15

568136R1

SUPPORT

RETAINER, concave upper RH

1шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex jam

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16 x 7/8 C-Z hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

16

568139R1

ANGLE

DEFLECTOR, concave LH

4шт.

16

568140R1

ANGLE

DEFLECTOR, concave RH

1шт.

17

156000C91

CONCAVE, front

1шт.

18

155993C2

TOOTH

front concave, short

20шт.

102638

9/16-12 hex

20шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

20шт.

19

156000C91

CONCAVE, rear

1шт.

20

155992C2

TOOTH

concave, long

23шт.

NLS

NO LONGER SERVICED

9/16-12 hex

23шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

23шт.

21

155993C2

TOOTH

rear concave

43шт.

102638

9/16-12 hex

43шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

43шт.

22

155989C1

HINGE, front concave extension

1шт.

23

155984C1

SPACER, front concave

3шт.

24

936476R1

SQ HOLE WASHER

concave tooth

66шт.
