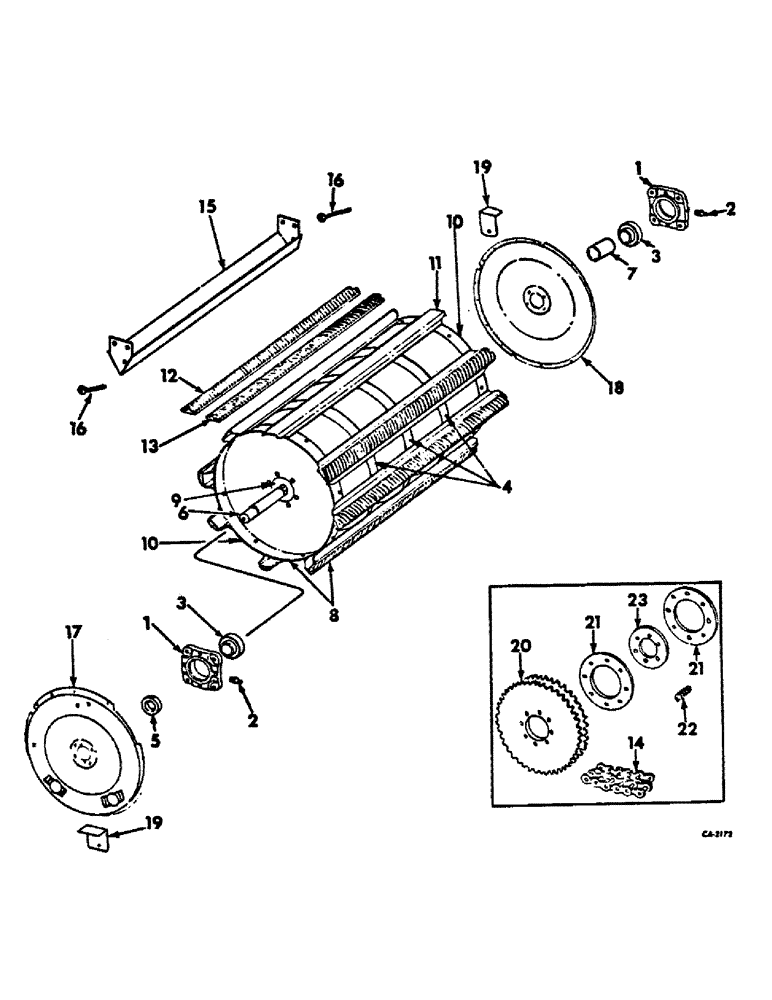

Запчасти Case IH 914 (21-06) - THRESHING CYLINDER AND CONCAVE, CYLINDER WITH HEX CYLINDER SHAFT, SERIAL NUMBER 1440 AND ABOVE (14) - THRESHING

1

172316C11

HOUSING

ASSY, cylinder shaft brg, includes ref. no. 3

2шт.

2

16964R1

FITTING

1/4-28 PTF 90 deg angle lub

2шт.

3

172408C91

BALL BEARING,49.21mm ID x 90mm OD x 23mm W

BEARING, cylinder shaft ball

2шт.

4

172309C1

HEAD ASSY, cylinder

3шт.

5

618032R11

COLLAR

ASSY, cyl shaft left brg lkg

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup pt set

1шт.

6

172314C11

SHAFT ASSY, cylinder

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-14 C-Z hex lock

1шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga C-Z

2шт.

24552R1

WASHER

1-1/32 x 2 x 22 ga C-Z

3шт.

20705R1

WASHER

1-25/32 x 2-1/2 x 16 ga

10шт.

21787R1

WASHER

2-1/16 x 2-15/16 x 16 ga C-Z

6шт.

7

629712R1

SPACER

cylinder shaft

1шт.

8

175268C91

CYLINDER ASSY, rasp bar, includes ref. nos. 4, 9 & 10

1шт.

9

172312C1

HUB, cylinder shaft

2шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

172311C91

HEAD ASSY, cylinder w/hub, includes ref. no. 9

2шт.

NLS

NO LONGER SERVICED

3/8 x 1 b-hd

16шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 znp sq-nk crg

2шт.

11

174929C1

SUPPORT, cylinder bar

8шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach, for balance as required

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach, for balance as required

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach, for balance as required

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

3шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 b-hd

160шт.

12

654252R91

BAR

ASSY, cylinder LH set of consists of 2 LH bars

1шт.

12

935690R91

BAR ASSY, cylinder LH set of consists of 2 LH bars hardened

1шт.

181655

BOLT,Hex, 7/16" - 20 x 9/16", Gr 5

SCREW, 7/16 x 9/16 C-Z hex-hd cap

18шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

18шт.

13

654253R91

BAR

ASSY, cylinder RH set of consists of 2 RH bars

1шт.

13

935691R91

BAR ASSY, cylinder RH set of consists of 2 RH bars hardened

1шт.

181655

BOLT,Hex, 7/16" - 20 x 9/16", Gr 5

SCREW, 7/16 x 9/16 C-Z hex-hd cap

18шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

18шт.

14

CHAIN ASSY, cyl drive extension, use 5 links from 10-ft roll marked 1355D, 3 connecting links 569206R91, 1 two pitch combination offset link 570988R91 and 2 offset roller links 1316D

1шт.

15

157511C92

CROSS MEMBER ASSY, cylinder stripper

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sqq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

16

634125R2

BOLT,3/8" - 16 x 4.62"

cylinder stripper cross member adjusting

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

17

172450C1

COVER ASSY, cylinder left end

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

4шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 C-Z hex-jam

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z int-tooth lock

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

18

172451C1

COVER ASSY, cylinder right end

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

19

633518R1

DOOR

cylinder inspection

4шт.

20

158692C1

SPROCKET, cylinder drive 65T

1шт.

21

158690C2

PLATE, cyl drive slip clutch outer

2шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8 x 3-1/2 znd hex-hd cap

8шт.

274993

SHIELD

3/8 C-Z stove lock

8шт.

619856R1

WASHER

11/32 x 1 x 16 ga C-Z

8шт.

22

M74156

SPRING

cyl drive slip clutch

8шт.

23

158691C1

PLATE, cyl drive slip clutch inner

1шт.
