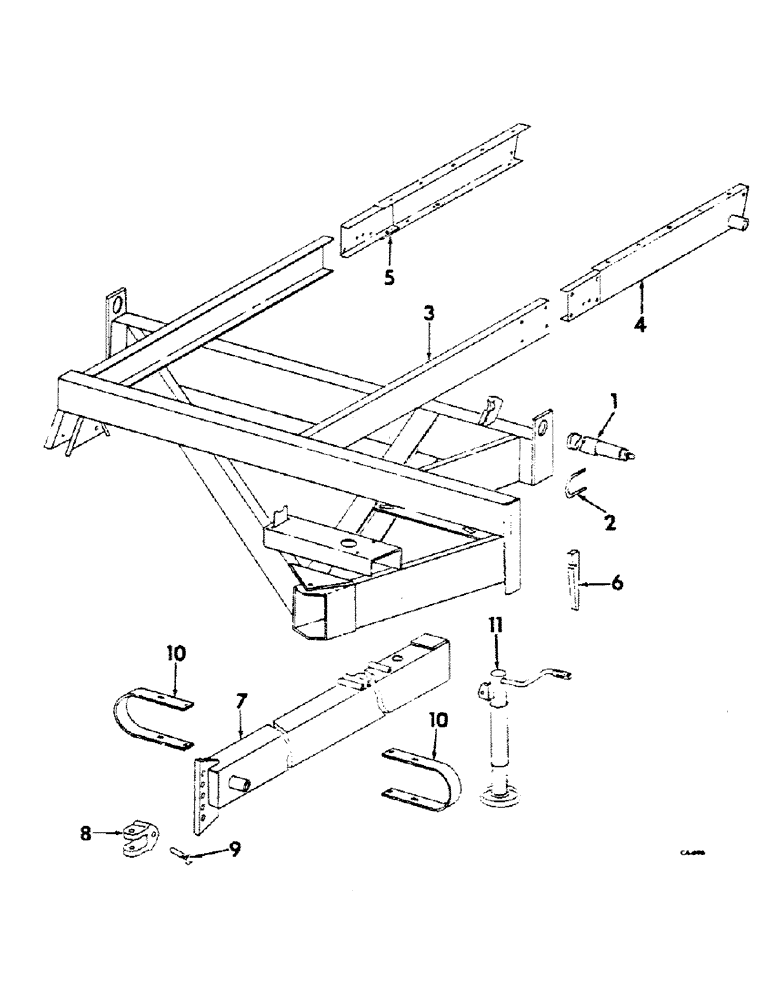

Запчасти Case IH 914 (09-02) - FRAME, MAIN FRAME, AXLE, TONGUE HITCH AND HOIST (12) - FRAME

1

169583C1

SPINDLE, main axle

2шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14NS slt hex.

2шт.

137263

STRIP

3/16" x 2"

2шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1.030 x 2.24 x 1/4

2шт.

2

169584C1

BOLT

spindle support

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

169555C1

FRAME ASSY

1шт.

4

169576C1

CHANNEL ASSY, main sill rear left

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

169577C1

CHANNEL ASSY, main sill rear right

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

169582C1

WEDGE, tongue locating

1шт.

517843R1

COTTER PIN

PIN, 3/16 Q-A cot.

1шт.

7

169585C1

TOW BAR

TONGUE ASSY, hitch

1шт.

8

169594C1

CLEVIS

hitch

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

24581R1

PIN

1 x 3-1/2 std-hd

1шт.

9

169595C11

PIN ASSY, tongue pivot

1шт.

615610R1

WASHER

1-1/32 x 2 x 7 ga

1шт.

10

155525C1

CHANNEL, wheel stop

2шт.

15386R1

BOLT, 1/2 x 8-1/2 sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

11

174830C1

JACK

HOIST ASSY, lifting jack

1шт.
