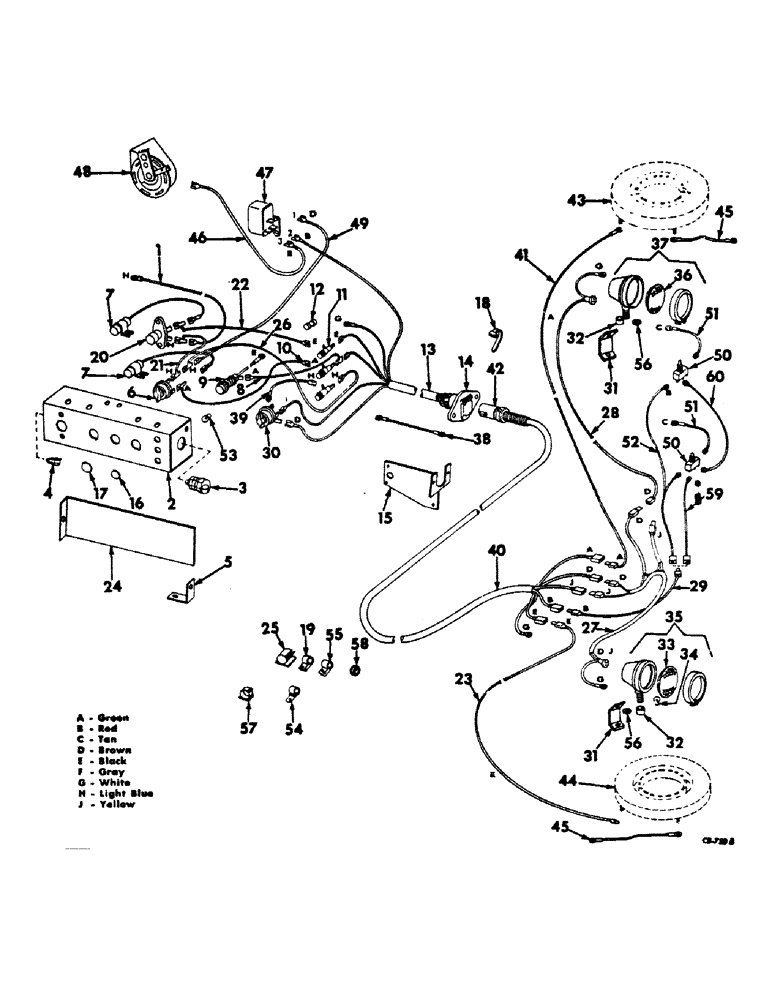

Запчасти Case IH 914 (08-02) - ELECTRICAL (06) - ELECTRICAL

1

164045C91

Cable Assy, Ignition Switch to Feeder

1шт.

2

169843C1

Box Assy. Switch

1шт.

2

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

Nut 5/16 C-Z Flange Lock

1шт.

2

632227R1

SCREW

Screw, 5/16 x 3/4 C-Z SLT Truss HD

1шт.

3

169851C1

GROMMET

Bushing, Switch Box Rear

1шт.

4

169852C1

Bushing, Switch Box Front

1шт.

5

164056C1

Support, Switch Box

1шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

Nut 5/16 C-Z Flange Lock

1шт.

5

632227R1

SCREW

Screw, 5/16 x 3/4 C-Z SLT Truss Lock

1шт.

6

395771R92

Switch Assy, Unloader Control

1шт.

7

164030C91

Condensor, Electric Clutch

1шт.

7

120375

NUT,Hex, 1/4" - 20, Gr 5

Nut, 1/4 C-Z Hex

1шт.

7

20710R1

SCREW

Screw, 1/4 x 1/2 C-Z Hex

1шт.

7

120380

LOCK WASHER

Washer 1/4 C-Z Med Lock

1шт.

8

164050C91

Cable, Unloader Switch to Light

1шт.

9

392441R91

LIGHT

Light Assy, Warning

1шт.

10

164051C91

Cable, Unloader Switch to Fuse

1шт.

11

376852R91

HOUSING

Housing Assy, Fuse

1шт.

12

148369

FUSE,6 Amp, Type 3AG

Fuse 6 Amp

1шт.

12

117142

FUSE,10 Amp, Type 3AG

Fuse 10 Amp

1шт.

13

169845C91

Cable Assy, Fuse to Socket

1шт.

14

103654R91

SOCKET

Socket 6 Pole

1шт.

14

120375

NUT,Hex, 1/4" - 20, Gr 5

Nut, 1/4 C-Z Hex

1шт.

14

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

Screw, 1/4 x 3/4 C-Z SLT Pan HD

1шт.

14

120380

LOCK WASHER

Washer, 1/4 C-Z Med Lock

1шт.

15

164053C91

Support Assy, Socket

1шт.

15

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

Bolt, 1/4 x 1/2 C-Z Hex

1шт.

15

120375

NUT,Hex, 1/4" - 20, Gr 5

Nut, 1/4 C-Z Hex

1шт.

15

120380

LOCK WASHER

Washer, 1/4 C-Z Med Lock

1шт.

16

142016

PLUG

Plug .500 Dia Button Switch Lock

1шт.

17

454163

HOLE PLUG BUTTON,25/32"

Plug .781 Dia Button Switch Lock

1шт.

18

702093C1

CABLE TIE

Tie, Self Locking Cable

1шт.

19

587501R2

CLAMP

Clamp, Control Wire

1шт.

19

120375

NUT,Hex, 1/4" - 20, Gr 5

Nut, 1/4 C-Z Hex

1шт.

19

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

Screw, 1/4 x 1/2 C-Z Pan HD Mach

1шт.

19

120380

LOCK WASHER

Washer, 1/4 C-Z Med lock

1шт.

20

165466R91

SWITCH

Cable Feeder to Unloader Clutch

1шт.

20

120375

NUT,Hex, 1/4" - 20, Gr 5

Nut, 1/4 C-Z Hex

1шт.

20

20710R1

SCREW

Screw, 1/4 x 1/2 C-Z Pan HD Mach

1шт.

20

120380

LOCK WASHER

Washer, 1/4 C-Z Med Lock

1шт.

21

164032C91

Cable, Feeder to Unloader Clutch

1шт.

22

164044C91

Cable, Feeder Switch Fuse

1шт.

23

169848C91

Cable Assy, Feeder Clutch to Frame

1шт.

24

169849C1

Door, Switch Box

1шт.

24

24231R1

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1/2"

Screw, NO 8 x 1/2 SLT Pan HA Mach

1шт.

25

1698505C1

Clip, Cable Adhesive Back

1шт.

26

164422C91

CABLE

Cable Assy, Unloader to Light Fuse

1шт.

27

169993C91

Cable Assy, Frame to Tail Light

1шт.

28

169994C91

Cable Assy, Grain Tank Light

1шт.

29

169990C1

Cable Assy, Straw Chopper

1шт.

30

169995C91

SWITCH

Switch Assy, Light

1шт.

31

561915R1

BRACKET

Bracket, Light Mounting

1шт.

31

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

Bolt, 3/8 x 1 ZND Hex HD Mach

1шт.

31

120377

NUT,3/8" - 16, Gr 5

Nut, 3/8 x 1 C-Z Med Lock

1шт.

31

120382

LOCK WASHER,Helical Spring, 3/8"

Washer, 3/8 C-Z Med Lock

1шт.

32

49069D

SPACER

Spacer, Light Mounting

1шт.

33

371461R91

LENS

Unit Assu, Sealed Beam Tail Light

1шт.

34

455490

BULB,C-6, #1003, 12V, .94W

Bulb, Light

1шт.

35

387729R91

LIGHT

Light Assy, Tail

1шт.

35

120378

NUT,Hex, 1/2" - 13, Gr 5

Nut, 1/2 C-Z Hex

1шт.

35

120384

WASHER,1/2"

Washer, 1/2 C-Z Med Lock

1шт.

36

371443R91

LAMP BASE

Unit Assy, Sealed Beam

1шт.

37

391005R91

HEADLIGHT

Light Assy, Grain Tank

1шт.

37

120378

NUT,Hex, 1/2" - 13, Gr 5

Nut, 1/2 C-Z Hex

1шт.

37

120384

WASHER,1/2"

Washer, 1/2 C-Z Med Lock

1шт.

38

165004C91

Cable Assy, Grain Tank Extension

1шт.

39

169996C91

Cable Assy, Fuse to Light Switch

1шт.

40

169846C91

Cable Assy, Plug to Frame

1шт.

41

169847C91

Cable Assy, Frame to Unloader

1шт.

42

171698C1

PLUG

Plug, 6 Pole

1шт.

43

NSS

NOT SOLD SEPARAT

Field Assy, Unloader Clutch

1шт.

44

NSS

NOT SOLD SEPARAT

Field Assy, Feeder Drive Clutch

1шт.

45

173842C91

Cable Assy, Clutch to Ground

1шт.

46

169991C1

CABLE

Cable Assy, Relay to Horn

1шт.

47

241120R91

RELAY

Relay Assy, Horn

1шт.

48

166166R91

HORN

Horn Assy, Warning

1шт.

49

164423C91

Cable Assy, Unloader Switch to Relay

1шт.

50

574649R91

SWITCH

Switch Assy, Warning Horn

1шт.

51

167580C91

Cable Assy, Micro Switch to Ground

1шт.

52

162474C91

Cable Assy, Micro Switch to Horn

1шт.

53

9412348

BULB,C2B, #257, 14V

Bulb, Warning Light Flasher

1шт.

54

362127R1

CLIP

Clip, Cable

1шт.

54

400505R1

CLAMP

Clip, Plug to Frame Cable

1шт.

55

589980R2

CLIP

Clamo, Control Wire

1шт.

56

936476R1

SQ HOLE WASHER

Washer, Lamp Spacer

1шт.
