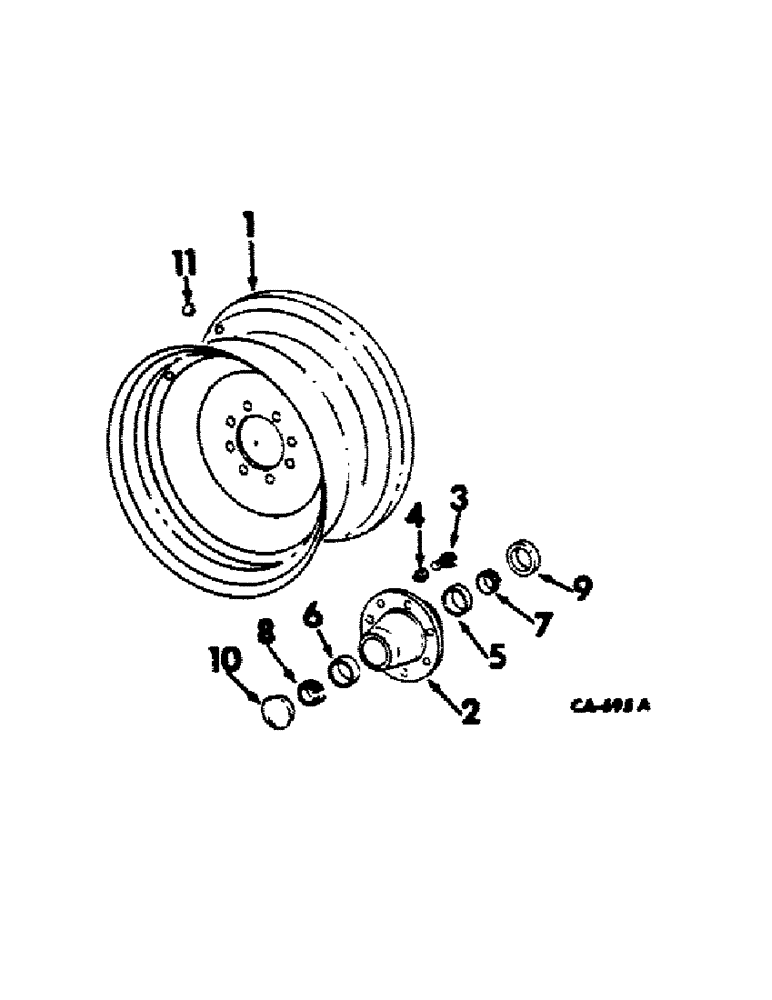

Запчасти Case IH 914 (15-02) - WHEELS AND TRACTION, MAIN WHEEL AND HUB Wheels & Traction

1

169531C1

WHEEL

DW-16-26 disc, for use w/18.4-26 tire

2шт.

2

169596C91

HUB ASSY, main wheel, includes ref. nos. 3, 4, 5 & 6

2шт.

3

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

main wheel hub

8шт.

4

554480R1

WHEEL NUT

5/8-18NF

8шт.

5

105497H

BEARING CUP,96.85mm OD x 15.77mm W

BEARING, main wheel hub inner cup

2шт.

6

663558R1

BEARING CUP

BEARING, main wheel hub outer cup

2шт.

7

659458R91

ROLLER BEARING

BEARING, main wheel hub inner cone

2шт.

8

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING, main wheel hub outer cone

2шт.

9

358922C91

OIL SEAL

main wheel hub inner brg oil

2шт.

10

560950R1

HUB CAP

CAP, main wheel hub

2шт.

11

175243C1

PLUG

rim hole, (per rim)

1шт.
