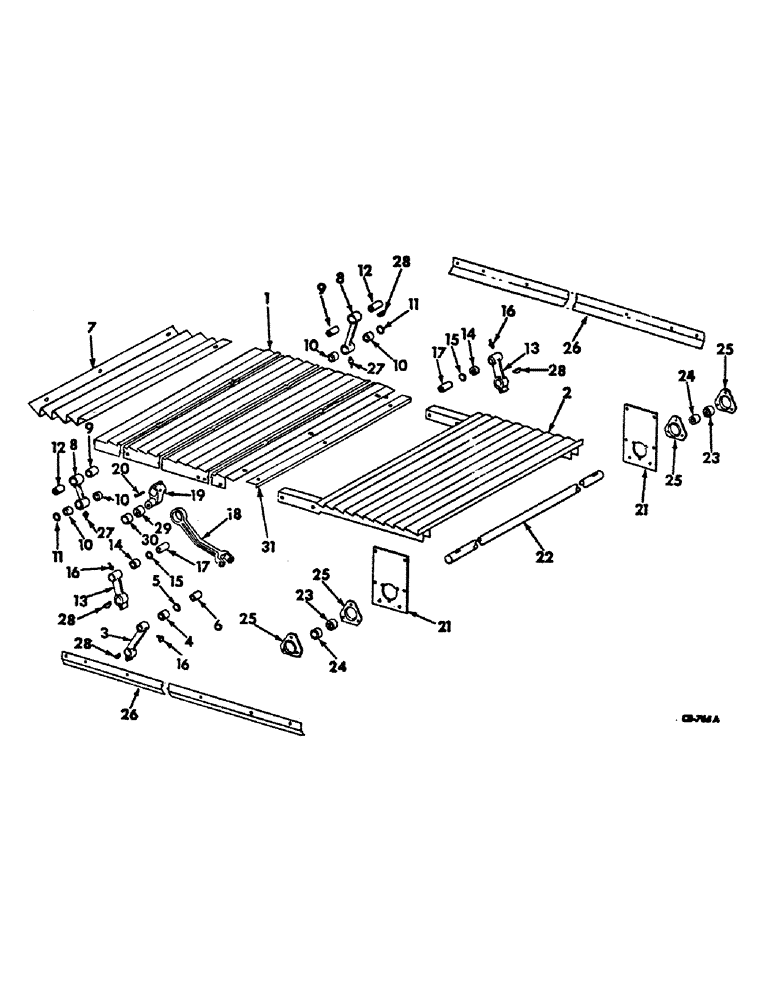

Запчасти Case IH 914 (22-5) - STRAW RACK, STRAW RACK RETURN PAN Straw Walkers

1

171128C1

PAN ASSY, straw rack return

1шт.

2

171126C1

PAN ASSY, straw rack rear return, serial no. 897 and below

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

11шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

169749C1

NUT, 5/16 speed

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

160048C11

LEVER

ARM ASSY, straw rack return pan crank, includes ref. nos. 4 and 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

276574R91

NEEDLE BEARING

ASSY, straw rack return pan crank arm

2шт.

5

459035R91

SEAL

SEAL, straw rack return pan crank arm oil

2шт.

6

160047C1

BUSHING

SLEEVE, straw rack return pan crank arm

1шт.

7

170510C1

BOTTOM, return pan frt ext

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

6шт.

8

160040C11

ARM

ASSY, strawrack return pan frt hanger, includes ref. nos. 9, 10 and 11

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

2шт.

9

160041C1

COMPOSITE RING

BUSHING, straw rack return pan front hanger arm

2шт.

10

276574R91

NEEDLE BEARING

ASSY, needle, serial no. 725 and below

4шт.

10

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

straw rack, serial no. 726 and above

4шт.

11

459035R91

SEAL

SEAL ASSY, straw rack return pan frt hanger arm oil, for use w/needle bearing, serial no. 725 and below

4шт.

12

160047C1

BUSHING

SLEEVE, straw rack return pan front hanger arm

2шт.

13

169049C11

ARM ASSY, straw rack return pan rear hanger, includes ref nos. 14 and 15

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 C-Z hex-hd cap

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

2шт.

14

276574R91

NEEDLE BEARING

ASSY, needle, serial no. 725 and below

4шт.

14

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

straw rack, serial no. 726 and above

4шт.

15

459035R91

SEAL

SEAL ASSY, straw rack return pan rear hanger arm oil, for use w/needle bearing, serial no. 725 and below

4шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

3шт.

17

160047C1

BUSHING

SLEEVE, straw rack return pan rear hanger arm

2шт.

18

160050C1

ARM

straw rack return pan dr pitman

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2 x 3-1/4 C-Z hex-h cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

19

157011C91

CRANK ASSY, straw rack return pan

1шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex. jam

2шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

21765R1

SCREW, 5/16 x 5/8 C-Z sq-hd cup-pt set

1шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16 x 1 C-Z sq-hd cup-pt set

1шт.

20

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

21

157034C1

STRIP, straw rack return pan brg support

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

22

160046C1

SHAFT, straw rack return pan

1шт.

23

160055C91

BALL BEARING,1.127" ID x 2.441" OD x 1.013"

BEARING ASSY, straw rack return pan crankshaft

2шт.

24

572224R11

COLLAR

W/SET SCREW, lkg

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

2шт.

25

571425R1

FLANGED BEARING

straw rack return pan crankshaft brg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

26

170373C1

DEFLECTOR, straw rack return pan

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

24шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

24шт.

27

16964R91

FITTING

1/4-28 90 deg angle lub

2шт.

28

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 woodruff

4шт.

29

455960R91

BALL BEARING

BEARING ASSY, straw rack return pan drive pitman

1шт.

30

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-sock-hd cup pt set

1шт.

31

174546C1

ANGLE, straw rack return pan rear, serial no. 898 and above

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-tr-hd

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.
