Запчасти Case IH 914 (20-18) - SEPARATOR, STRAW CHOPPER DRIVE, SERIAL NUMBER 898 AND ABOVE Separation

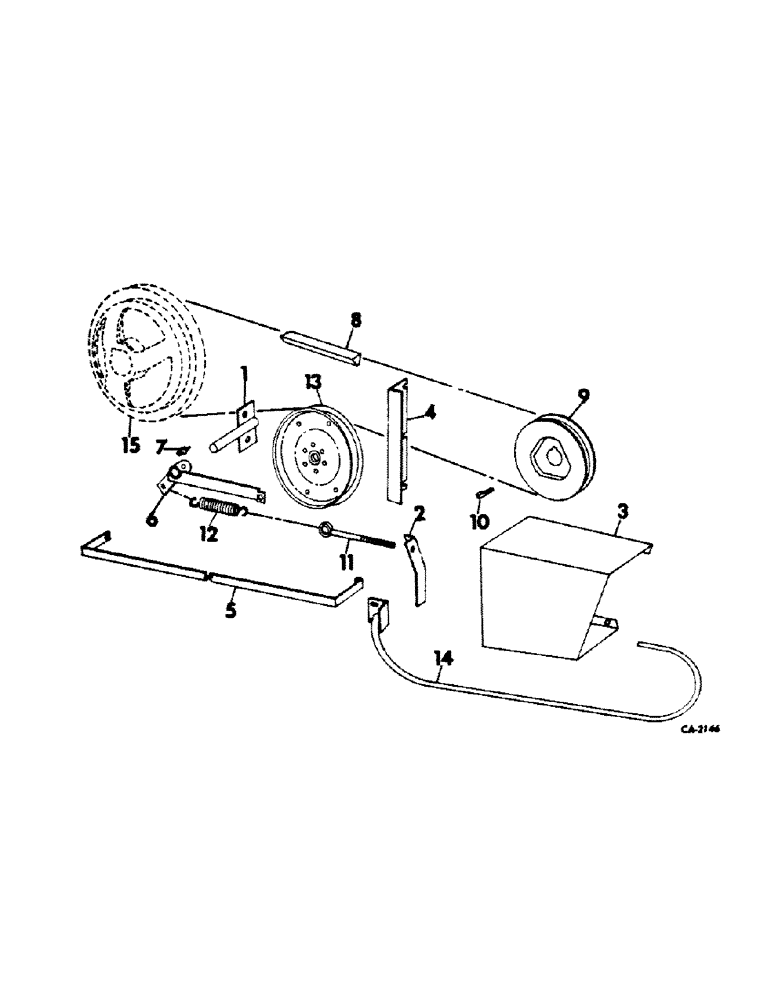

Схема запчастей Case IH 914 - (20-18) - SEPARATOR, STRAW CHOPPER DRIVE, SERIAL NUMBER 898 AND ABOVE Separation
4
15
11
14
12
6
13
2
9
10
5
1
8
3
7

Артикул

Название

Примечание

Количество

1

169885C1

ANCHOR ASSY, straw chopper drive belt tightener

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

4шт.

2

169888C1

ANGLE, draw bolt support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-tr-hd

2шт.

3

174633C1

SHIELD, rear drive

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

4

173593C1

GUIDE, straw chopper drive belt

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

3шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

3/8 x 1 C-Z slt-tr-hd

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

3шт.

5

173594C1

BAR, straw chopper drive belt shield

1шт.

6

175283C1

ARM

ASSY, chopper drive tightener

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

8

174637C1

BELT,0.879" W x 305.97" L

V-BELT , Straw chopper drive 0.879" W x 305.97" L

1шт.

9

170491C1

PULLEY ASSY, driven

1шт.

10

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

3/8 x 2-3/4 sq-tapered

1шт.

11

629417R1

BOLT,3/8" - 16 x 7"

straw chopper drive belt idler arm spring

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

12

384296R2

VALVE SPRING

SPRING, straw chopper drive belt idler arm

1шт.

13

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

drive belt tightener

2шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 znd hex-hd mach

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

6шт.

14

174634C1

SHIELD

ASSY, straw chopper hood

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

15

PULLEY, fan cross shaft driven and straw chopper drive, refer to cleaning fan drive group 24 for listing

1шт.

Выбрано товаров: 34
