Запчасти Case IH 914 (20-16) - SEPARATOR, STRAW CHOPPER CUTTING PARTS, SERIAL NUMBER 898 AND ABOVE Separation

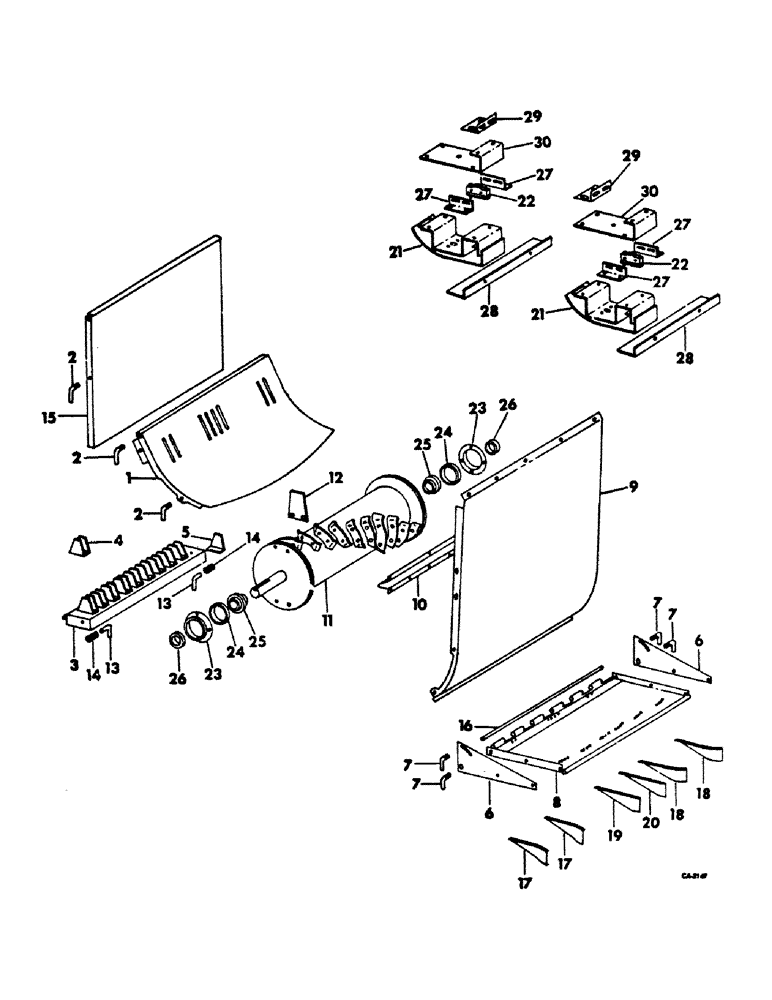

Схема запчастей Case IH 914 - (20-16) - SEPARATOR, STRAW CHOPPER CUTTING PARTS, SERIAL NUMBER 898 AND ABOVE Separation
27
2
20
7
18
6
7
10
7
26
27
29
19
30
25
5
9
26
23
14
1
23
22
4
27
21
14
11
24
24
9
21
22
12
17
18
17
8
29
28
2
28
2
25
15
27
3
30
13
16
13
7

Артикул

Название

Примечание

Количество

1

174675C1

DEFLECTOR

ASSY, lower front

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

2

174685R1

BOLT, lower front deflector adj

6шт.

174688C1

NUT

3/8 C-Z whiz lock

6шт.

3

174678C91

BAR

ASSY, concave, includes ref. nos. 4 and 5

1шт.

4

174680C1

BLADE

concave

12шт.

46-38

RIVET,Csk, 3/16" x 1/2"

3/16 x 1/2 countersunk

24шт.

5

174681C1

BLADE

concave end

1шт.

46-38

RIVET,Csk, 3/16" x 1/2"

3/16 x 1/2 countersunk

2шт.

6

172514C1

SUPPORT

rear deflector

2шт.

7

174971C1

BOLT,Adj, 5/16" - 18 x 1.60", 2"

rear deflector support adj

4шт.

161946C1

NUT

5/16 C-Z whiz lock

4шт.

564266R1

NUT

5/16 tab

2шт.

8

174082C2

EXTENSION ASSY, rear deflector

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.

9

174668C1

DEFLECTOR, separator hood rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

606728R1

NUT

5/16-18 Tinnerman

6шт.

632226

SCREW, 5/16 x 1/2 C-Z whiz lock

8шт.

10

174669C1

DEFLECTOR, separator hood rear air

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

14шт.

11

174640C91

ROTOR ASSY, straw chopper, includes ref. no. 12

1шт.

12

174641C1

BLADE

rotor

28шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z flange lock

56шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

56шт.

13

174689C1

PIN

stationary knife adj

2шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

23408R1

WASHER

15/32 x 3/4 x 16 ga C-Z

2шт.

14

352105R1

SPRING

stationary knife adj pin

2шт.

15

174690C1

DEFLECTOR ASSY, front upper

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z whiz lock

2шт.

16

159027C1

ROD

rear deflector support hinge

1шт.

17

174671C1

DEFLECTOR

straw chopper left

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

2шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znd slt-tr-hd

2шт.

18

174672C1

DEFLECTOR

straw chopper right

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

2шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znd slt-tr-hd

2шт.

19

174673C1

DEFLECTOR

straw chopper left center

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-tr-hd

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znd slt-tr-hd

1шт.

20

174674C1

DEFLECTOR

straw chopper right center

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-tr-hd

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znd slt-tr-hd

1шт.

21

166220C92

BRACKET

ASSY, warning horn switch

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

8шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 X 1/2 C-Z whiz lock

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

22

574649R91

SWITCH

warning horn micro

2шт.

134530

NUT,Hex, #6 - 32

4шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 slt-pan-hd

4шт.

492-11006

LOCK WASHER,#6

Lock, #6

4шт.

23

936130R1

FLANGE

rotor shaft bearing

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

24

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

rotor shaft bearing

2шт.

25

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSY, rotor shaft

2шт.

26

455112R11

COLLAR

ASSY, rotor shaft brg lkg

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd set

2шт.

27

166225C2

SUPPORT

BRACKET, warning horn switch

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

8шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z whiz lock

8шт.

28

173861C2

RETAINER, straw chopper wire

2шт.

564791R1

SPRING NUT

1/4 speed

6шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

6шт.

29

168905C1

SUPPORT, warning horn switch

2шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

161704C1

SUPPORT, warning horn switch

2шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

8шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

2шт.

Выбрано товаров: 85
