Запчасти Case IH 914 (20-15) - SEPARATOR, SERVICE LADDER Separation

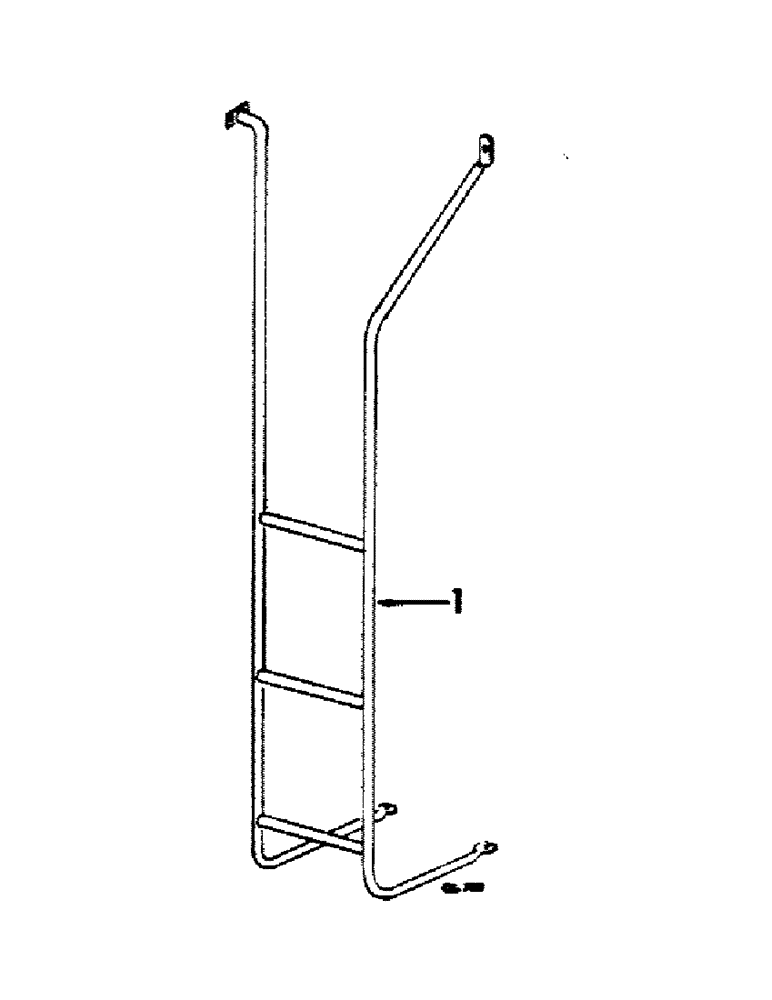

Схема запчастей Case IH 914 - (20-15) - SEPARATOR, SERVICE LADDER Separation
1

Артикул

Название

Примечание

Количество

1

169638C1

LADDER ASSY

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach

2шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

475954R1

NUT

3/8 C-Z flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt-tr-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Выбрано товаров: 10
