Запчасти Case IH 914 (20-14) - SEPARATOR, STRAW CHOPPER DRIVE, SERIAL NUMBER 897 AND BELOW Separation

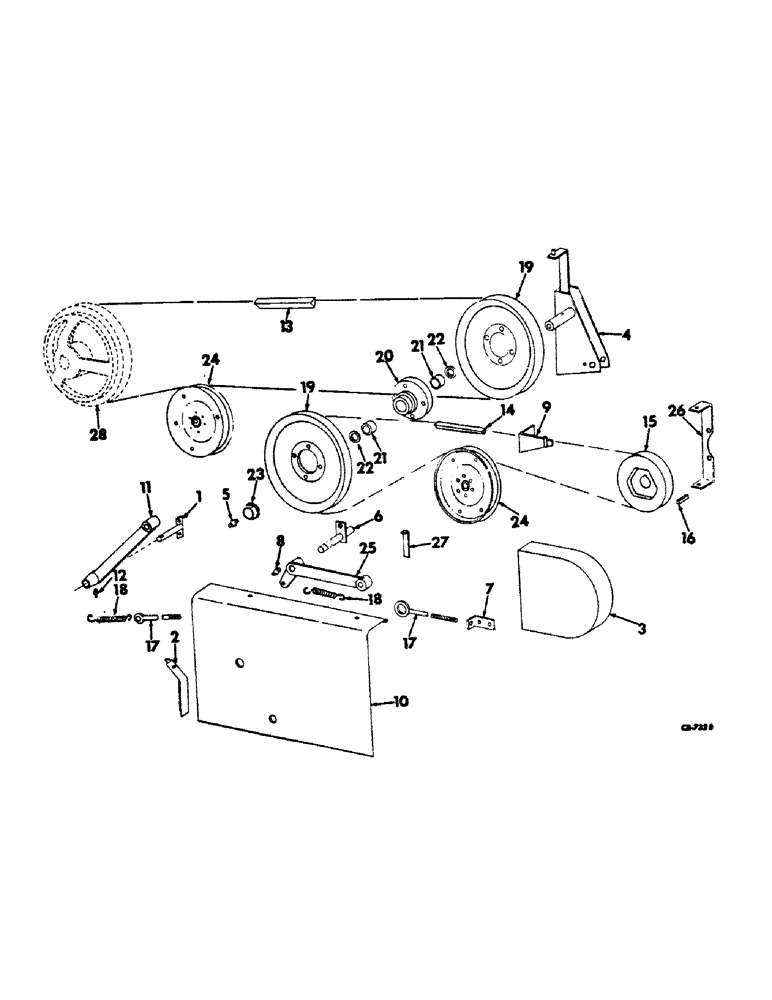

Схема запчастей Case IH 914 - (20-14) - SEPARATOR, STRAW CHOPPER DRIVE, SERIAL NUMBER 897 AND BELOW Separation
24
18
6
9
22
11
14
19
17
22
25
21
21
13
2
19
10
8
1
23
4
27
5
12
3
24
17
7
26
20
15
28
16

Артикул

Название

Примечание

Количество

1

169885C1

ANCHOR ASSY, straw chopper drive belt frt tightener

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

4шт.

2

169888C1

ANGLE, draw bolt support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

3

169889C1

SHIELD ASSY, chopper drive rear

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

169893C1

BRACKET ASSY, chopper idler pulley

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

112107

PIN, 3/8 x 3/4 sq-end straight

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPSF 1/8"-27 x .66 lg

1шт.

6

169897C1

SHAFT ASSY, chopper drive rear pivot

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

517843R1

COTTER PIN

PIN, quick attachable cot

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt truss hd

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

4шт.

7

169900C1

BRACKET, tightener bolt

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss hd

2шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28UNF str lub

1шт.

9

169902C1

SUPPORT ASSY, chopper drive rear shield

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss hd

2шт.

10

169905C1

SHIELD, chopper idler pulley

1шт.

11

169901C1

ARM

chopper drive frt tightener

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28UNF str lub

1шт.

13

633727R1

V-BELT,0.88" W

Straw chopper drive front 0.88" W

1шт.

14

170145C1

BELT,0.879" W x 164.75" L

V-BELT , Straw chopper rear drive 0.879" W x 164.75" L

1шт.

15

170495C1

PULLEY

straw chopper driven 7 in. OD

1шт.

16

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

3/8 x 2-3/4 gib hd

1шт.

17

629417R1

BOLT,3/8" - 16 x 7"

straw chopper drive belt idler arm spring

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

18

384296R2

VALVE SPRING

SPRING, straw chopper drive belt idler arm

2шт.

19

564567R11

PULLEY ASSY, straw chopper drive and idler, 11-5/8 in. OD

2шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

SCREW, 5/16 x 1-1/4 znd hex-hd cap

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

154919C1

HUB, chopper drive idler pulley

1шт.

20885R1

WASHER

1-5/32 x 2 16 ga

4шт.

21

154920C91

NEEDLE BEARING

ASSY, idler pulley hub

2шт.

22

460550R91

OIL RESERVOIR

SEAL, idler pulley hub oil

2шт.

23

1449K

COLLAR, idler pulley shaft

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

19888R1

SCREW, 7/16 x 1 C-Z sq-hd cup pt

1шт.

24

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

drive belt tightener, 8-3/4 in. OD

2шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 znd hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

6шт.

25

169901C1

ARM

chopper drive tightener rear

1шт.

26

169892C1

BRACKET, chopper drive rear shield

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

161417C1

SHIM, pivot support straw chopper

1шт.

28

PULLEY, fan cross shaft driven and straw chopper drive, refer to cleaning fan drive group 24 for listing

1шт.
