Запчасти Case IH 914 (20-08) - SEPARATOR, SEPARATOR SHIELD FRONT Separation

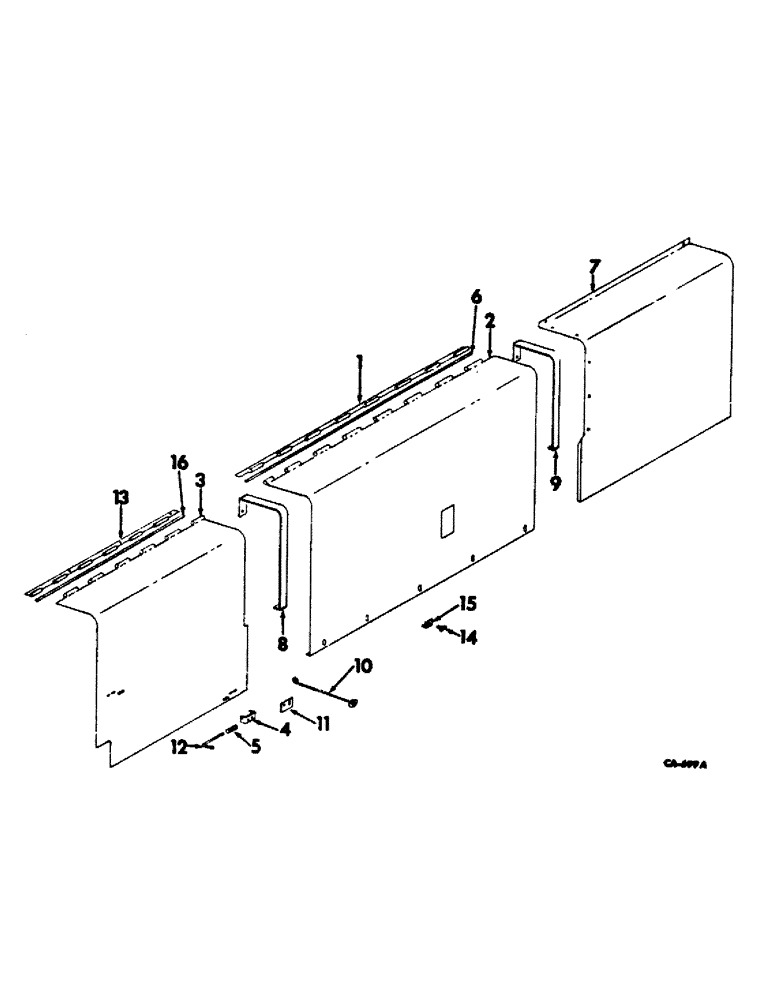

Схема запчастей Case IH 914 - (20-08) - SEPARATOR, SEPARATOR SHIELD FRONT Separation
6
14
2
15
4
5
12
8
16
3
10
7
13
1
11
9

Артикул

Название

Примечание

Количество

1

169647C1

HINGE, separator front door

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

4шт.

2

169649C2

DOOR, separator top front

1шт.

3

169651C2

DOOR, tailings elevator access

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

5шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

5шт.

4

169655C1

BRACKET, locking pin

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

5

606245R1

SPRING

locking pin

2шт.

6

169674C1

ROD

separator front door hinge

1шт.

7

169656C1

COVER ASSY, left front hopper trim

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

17шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

17шт.

8

169661C2

ANGLE ASSY, access door left

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

6шт.

9

169665C2

ANGLE ASSY, access door right

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

10

169667C11

ROD ASSY, tailings inspection door

1шт.

11

169668C1

RETAINER, inspection door rod

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

173921C1

PIN, door lock

2шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

13

169648C1

HINGE, tailings access door

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

14

159840C1

SCREW,Wing, 5/16" - 18 x 5/8"

BOLT, 5/16 x 5/8 C-Z wing

5шт.

15

631818R1

ANGLE, separator top front shield

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

16

25505K

ROD, tailings access door hinge

1шт.

Выбрано товаров: 37
