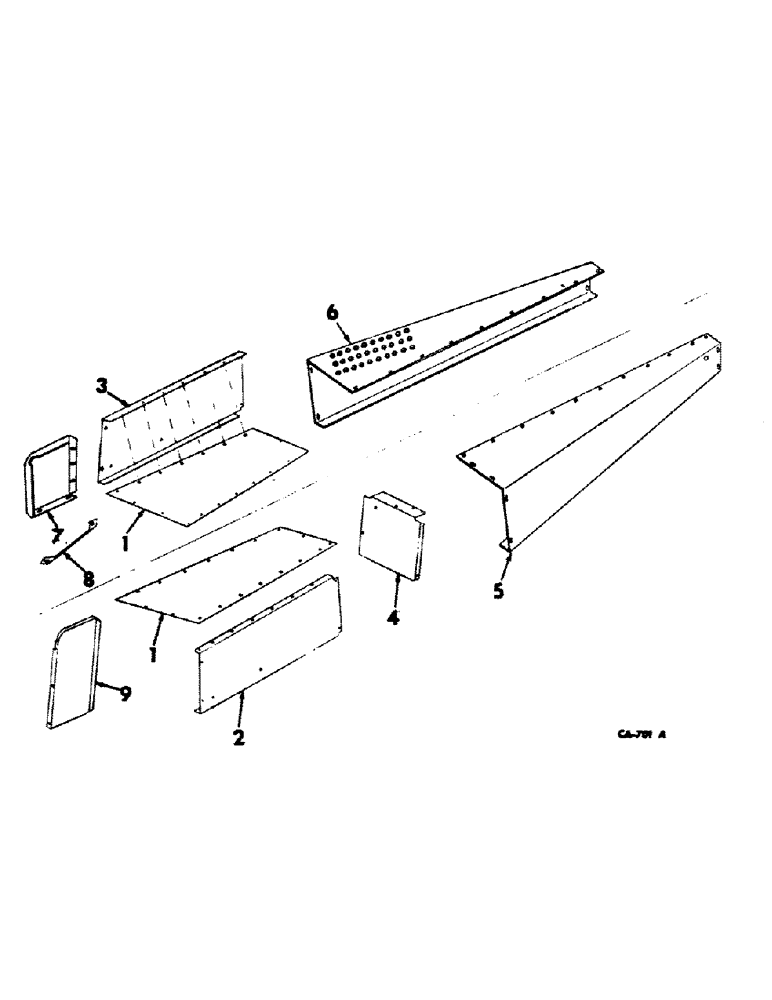

Запчасти Case IH 914 (20-07) - SEPARATOR, SEPARATOR SHIELDS LEFT AND RIGHT Separation
№
Артикул
Название
Примечание
Количество
1
169641C1
STIFFENER, separator hood front
2шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 znd sq-nk crg
14шт.
120376
NUT,5/16"-18, G5
14шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
24шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
24шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
14шт.
2
169642C1
TRIM, separator side rear left
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
2шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
2шт.
3
169643C1
TRIM, separator side rear right
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
4шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
4шт.
4
169644C1
SUPPORT, separator left rear trim
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 znd sq-nk crg
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
5
172496C1
SUPPORT, separator hood left stiffener
1шт.
18783R1
BOLT,Hex, 3/8"-16 x 2 1/2", G2
3/8 x 2-1/2 znd hex-hd mach
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
6шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
6шт.
20803R1
WASHER
13/32 x 1 x 11 ga C-Z
2шт.
6
172497C1
SUPPORT, separator hood right stiffener
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flnage lock
6шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd
6шт.
7
161750C1
END, distributor auger cover right
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
7шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
7шт.
8
169972C2
SUPPORT, right front shield
1шт.
9
169659C1
END, distributor auger cover left
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
7шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
7шт.
Выбрано товаров: 32
