Запчасти Case IH 914 (20-05) - SEPARATOR, SEPARATOR HOOD Separation

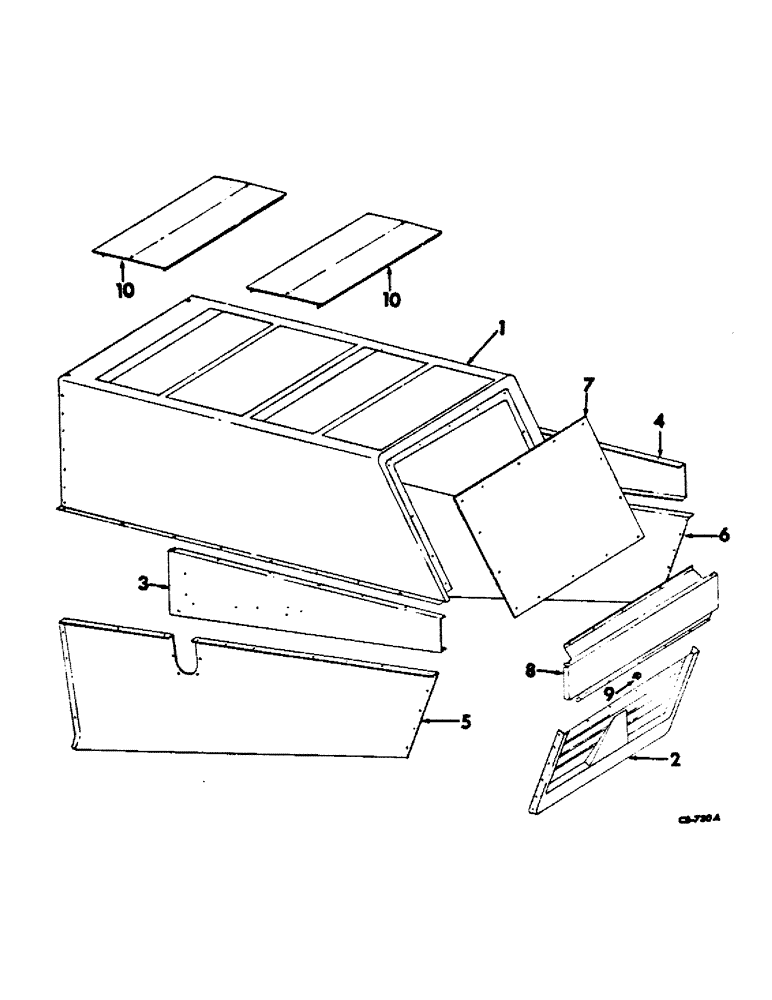

Схема запчастей Case IH 914 - (20-05) - SEPARATOR, SEPARATOR HOOD Separation
8
1
3
10
10
6
2
4
7
9
5

Артикул

Название

Примечание

Количество

1

169981C1

HOOD ASSY, separator

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

10шт.

120376

NUT,5/16"-18, G5

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

5шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

2

160476C21

HOOD ASSY, separator lower rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

19шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

16шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 X 3/4 C-Z slt-truss-hd

5шт.

3

160473C1

SUPPORT, separator hood left

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

7шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

4

160474C1

SUPPORT, separator hood right

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

7шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

5

160976C91

SECTION ASSY, separator hood low. LH, not for straw chopper serial no. 897 and below

1шт.

5

169985C1

SECTION ASSY, separator hood lower LH, for straw chopper serial no. 897 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

9шт.

5

172090C2

SECTION ASSY, separator hood lower LH, not for straw chopper serial no. 898 and above

1шт.

5

174663C1

SECTION ASSY, separator hood lower LH, for straw chopper serial no. 898 and above

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-tr-hd

10шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

10шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

8шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt-tr-hd

4шт.

6

160977C91

SECTION ASSY, separation hood lower RH, not for straw chopper serial no. 897 and and below

1шт.

6

169986C1

SECTION ASSY, separation lower RH, for straw chopper serial no. 897 and and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

9шт.

6

172091C2

SECTION ASSY, separation hood lower RH, not for straw chopper serial no. 898 and above

1шт.

6

174664C1

SECTION ASSY, separation hood lower RH, for straw chopper serial no. 898 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

10шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

8шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt-tr-hd

4шт.

7

160998C1

SHEET, separator hood rear, not for straw chopper serial no. 897 and below, for all combines serial no. 898 and above

1шт.

7

161624C1

SHEET, separator hood rear, for straw chopper serial no. 897 and and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

15шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

15шт.

8

172087C1

SUPPORT, separator hood center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

10шт.

9

166705C1

NUT

5/16-18 Tinnerman speed grip

3шт.

9

166132R1

NUT, 3/8-16 tinnerman speed

1шт.

10

170439C1

DOOR, separator hood

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

4шт.

Выбрано товаров: 54
