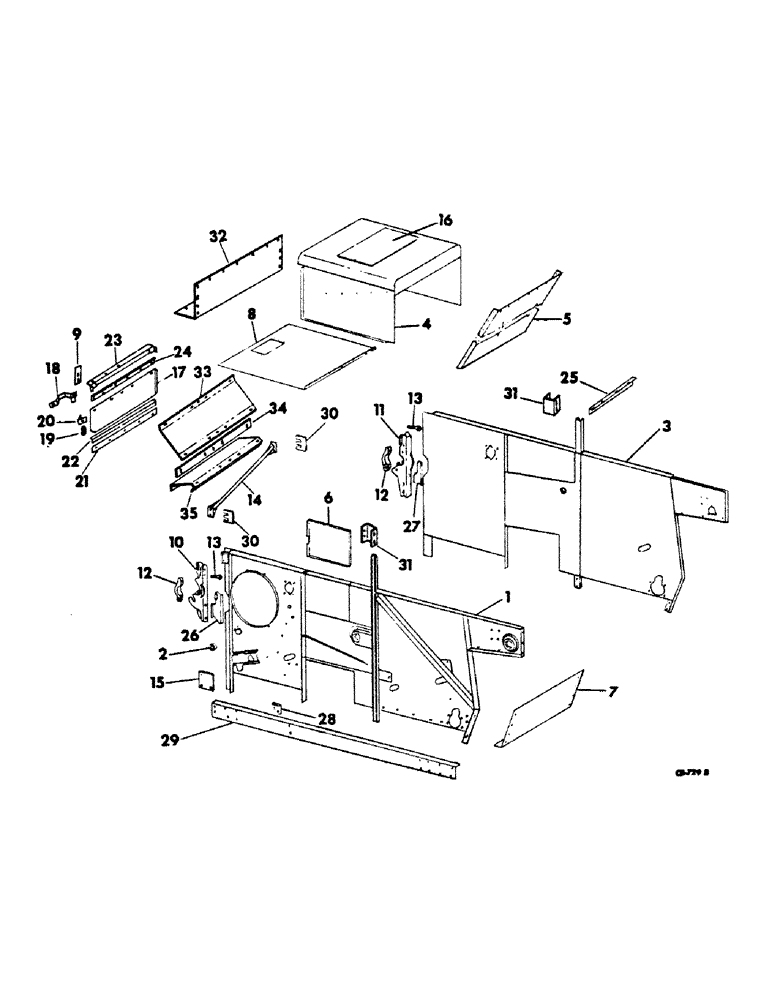

Запчасти Case IH 914 (20-02) - SEPARATOR, SEPARATOR AND RELATED PARTS Separation

1

169611C1

SIDE ASSY, separator left, includes ref. nos. 2 and 15, serial no. 1439 and below

1шт.

1

175210C91

SIDE ASSY, separator left, includes ref. nos. 2 and 15, serial no. 1440 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

3шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 C-Z hex-hd type 4

5шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

4шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 C-Z hex-hd type 4

4шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5/8 x 1-3/4 C-Z hex-hd type 4

2шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2 C-Z hex-hd type 4

1шт.

120376

NUT,5/16"-18, G5

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

13шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

21333R1

NUT,3/8"-16, G8

3/8 C-Z hex.

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex.

4шт.

21434C1

NUT, 5/8 C-Z hex.

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

13шт.

429-1112

NUT,3/4"-16, G5

3/4 C-Z hex

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

366862C1

LOCK WASHER,3/8"

3/8"

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

366864C1

LOCK WASHER,1/2"

1/2"

4шт.

366866C1

LOCK WASHER,5/8"

5/8"

3шт.

2

157560C1

BUSHING

concave leveling arm

1шт.

3

169630C1

SIDE ASSY, separator right, serial no. 1439 and below

1шт.

3

175211C1

SIDE ASSY, separator right, serial no. 1440 and above

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 C-Z hex-hd type 4

5шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

4шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 hex-hd type 4

6шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5/8 x 1-3/4 hex-hd type 4

2шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2 C-Z hex-hd type 4

1шт.

120376

NUT,5/16"-18, G5

7шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

7шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

21333R1

NUT,3/8"-16, G8

3/8 C-Z hex.

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex.

6шт.

21434C1

NUT, 5/8 C-Z hex.

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

366862C1

LOCK WASHER,3/8"

3/8"

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

366864C1

LOCK WASHER,1/2"

1/2"

6шт.

366866C1

LOCK WASHER,5/8"

5/8"

3шт.

4

169598C1

SEPARATOR ASSY, rear

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

12шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

11шт.

120376

NUT,5/16"-18, G5

23шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

23шт.

5

175848C1

SHEET, filler, serial no 1440 thru 1596

1шт.

5

169607C1

SHEET, filler, serial no. 897 and below and serial no. 1597 & above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

20шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

20шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

169608C1

DOOR, straw rack inspection

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

169609C1

PLATE, separator rear

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

6шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 znd hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

8

160276C1

TOP, front, serial no. 897 & below and serial no. 1597 and above

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 znd sq-nk crg

14шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

9

172242C1

BAR, cylinder door handle

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

10

160001C2

CLAMP, feeder pivot left rear, grain

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 C-Z sq-nk crg

2шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 C-Z sq-nk crg

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

2шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2 x 1-3/4 hex-hd cap

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

2шт.

21375R1

WASHER

17/32 x 1-1/4 x 7 ga C-Z

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

11

160002C2

CLAMP, feeder pivot right rear, grain

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 C-Z sq-nk crg

2шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 C-Z sq-nk crg

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

4шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 znd hex-hd cap

4шт.

301055R1

SCREW, 5/8 x 3-1/2 C-Z hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

2шт.

21375R1

WASHER

17/32 x 1-1/4 x 7 ga C-Z

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

12

160000C1

CLAMP, feeder pivot front, grain, serial no. 1439 & below

2шт.

12

175246C1

CLAMP, feeder pivot front, grain, serial no. 1440 & above

1шт.

21401R1

HEADED PIN,3/4" x 2 3/4"

PIN, 3/4 x 2-3/4 C-Z rod end

2шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

13

165648C2

BOLT,3/4" - 10 x 4 1/2"

EYEBOLT, feeder pivot front clamp, grain, serial no. 1439 & below

2шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

20401R1

PIN, 3/4 x 2-3/4 C-Z rod end

2шт.

25548R1

WASHER

25/32 x 1-1/2 x 1/4 PHC hard

2шт.

13

175247C1

BOLT, feeder pivot clamp eye, grain, serial no. 1440 & above

1шт.

21929R1

NUT,1"-8, G8

1 C-Z hex type 8

2шт.

232361R1

WASHER, 1-1/32 x 1-3/4 x 1/8 hard

2шт.

22095R1

PIN

3/4 x 3 C-Z rod end

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

14

162478C92

PIPE ASSY, separator front cross tie

2шт.

21434R1

NUT,5/8"-11, G8

5/8 C-Z hex type 8

4шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex type 8

4шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 C-Z hex-hd type 8

4шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8 x 2 C-Z hex-hd type 8

4шт.

366864C1

LOCK WASHER,1/2"

1/2"

4шт.

366866C1

LOCK WASHER,5/8"

5/8"

4шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

15

166610C1

PLATE, stone retarder, window special

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

170439C1

DOOR, separator top front

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

17

170234C1

DOOR, cylinder front section, grain

1шт.

18

172241C1

HANDLE ASSY, cyl door upper latch, grain

2шт.

18768R1

BOLT,Hex, 5/16"-18 x 2 1/4", G2

5/16 x 2-1/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

19

42979D

SPRING, cylinder door upper latch, grain

2шт.

20

157515C1

LATCH, cylinder door lower, grain

2шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-1/2 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 C-Z hex jam

1шт.

21

166912C1

STRIP

SEAL, cyl front door, grain

1шт.

22

160645C1

ANGLE, cyl door seal backing, grain

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

11шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z pan hd mach

11шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

11шт.

23

170240C1

SUPPORT ASSY, cylinder door, grain

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-tr-hd

8шт.

24

170236C1

SUPPORT, cylinder door upper, grain

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-tr-hd

6шт.

25

166964C1

ANGLE, shaker shaft support, grain

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 and hex-hd mach

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

26

167407C1

STRIP, feeder side seal left, grain

1шт.

27

167408C1

STRIP, feeder side seal right, grain

1шт.

28

574525R1

DOOR, cyl beater finger grate adj inspection

1шт.

29

169610C1

CHANNEL, front post cross

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

30

170024C1

SHIM, separator front cross brace, use as required

4шт.

31

173821C1

FILLER, separator top, serial no. 898 thru 1596

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

32

173819C1

TOP, separator front, serial no. 898 thru 1596

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

14шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

33

174818C1

DEFLECTOR, cyl door, serial no. 898 and above

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-tr-hd

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

5шт.

34

174820C1

PLATE, cyl door deflector, serial no. 898 and above

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 C-Z slt-tr-hd

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

5шт.

35

174822C1

SUPPORT, cyl door deflector lower, serial no. 898 and above

1шт.
