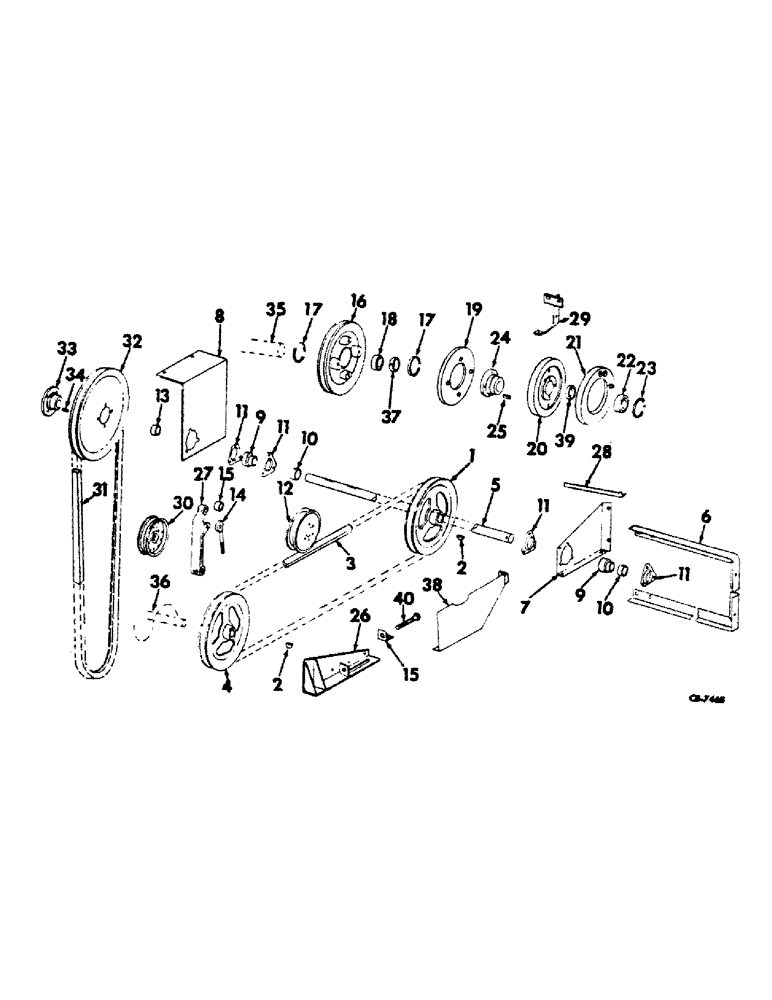

Запчасти Case IH 914 (26-11) - GRAIN TANK, GRAIN TANK UNLOADER AUGER DRIVE Grain Tank

1

169806C1

PULLEY, unloader auger drive, 10-1/2 in OD

1шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex. jam

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 1 C-Z sq-hd cup pt set

1шт.

2

117977

WOODRUFF KEY

KEY, 5/16 x 1 Woodruff

2шт.

3

569692R1

V-BELT,0.88" W

Unloader auger drive 0.88" W

1шт.

4

626769R2

PULLEY, unloader auger driven, 10-1/2 in OD

1шт.

5

169807C1

SHAFT

JACKSHAFT, unloader drive upper

1шт.

6

169808C1

ANGLE, unloader upper jackshaft support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

169809C1

BRACKET, unloader upper jackshaft left brg

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

169811C1

BRACKET, unloader upper shaft brg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

9

617684R91

BEARING

ASSY, unloader upper jackshaft

2шт.

10

617685R11

COLLAR

W/SET SCREW LKG

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd set

2шт.

11

571425R1

FLANGED BEARING

unloader upper jackshaft brg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

12

564745R91

PULLEY

unloader auger drive belt tightener, 6-1/4 in OD

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 znd sq-nk crg

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

162510C1

SPACER,1 3/8" Tube x 7/8"

unloader upper jackshaft pulley hub 7/8 in long

1шт.

13

150180C1

SPACER, unloader upper jackshaft pulley hub 1-1/2 in long

1шт.

14

169882C1

BOLT

unloader tightener eye

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

21995R1

PIN, 1/2 x 1-5/8 znd std-hd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

15

457369R1

BOLT, unloader drive belt tightener

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Unloader drive belt tightener 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

16

169884C1

PULLEY, unloader upper jackshaft dr, 10-3/8 in OD

1шт.

17

512889R1

RING

unloader upper jackshaft drive pulley brg snap

2шт.

18

628904R91

BEARING ASSY,1.3755" ID x 72 mm OD x 2.015625"

BEARING, unloader upper jackshaft drive pulley

1шт.

19

164062C91

DISC ASSY, unloader electric clutch

1шт.

20

173858C1

ROTOR ASSY, unloader electric clutch

1шт.

21

173857C92

COIL

FIELD ASSY, unloader electric clutch

1шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

no. 8-32 x 1/2 slt-pan-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120392

WASHER,1/4", SAE

.344 x .69 x .06

1шт.

22

165493C92

BALL BEARING,2.3622" ID x 8.7402" OD x 0.7087"

ASSY, unloader electric clutch field ball

1шт.

23

261632C1

RING

unloader electric clutch field brg snap

1шт.

24

169881C1

HUB, unloader clutch rotor

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/1L x 1 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21951R1

PIN,5/16" x 2 1/4"

5/16 x 2-1/4 C-Z std hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

25

Q73

KEY,3/8" Sq x 1 3/4", Par

3/8 x 1-3/4 square

1шт.

26

169815C1

BRACKET ASSY, unloader drive belt tightener pulley

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-tr-hd

4шт.

27

169818C1

ARM, unloader upper jackshaft belt tightener

1шт.

28

169820C1

ANGLE, unloader upper jackshaft outer brg support

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

29

169821C2

RETAINER, unloader clutch

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

30

170146C1

PULLEY

jackshaft drive belt tightener, 5-3/4 in OD

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

31

169827C1

V-BELT,0.88" W x 97.49" L

Unloader Jackshaft Drive 0.88" W x 97.49" L

1шт.

32

155718C11

PULLEY

ASSY, unloader upper jackshaft driven, 13 in OD

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

33

164193C2

HUB, unloader upper jackshaft pulley

1шт.

34

Q1482

KEY,5/16" Sq x 1", Par

5/16 x 1 sq-parallel

1шт.

35

SHAFT, fan drive cross, refer to fan drive unit for listing

1шт.

36

AUGER ASSY, unloader lower, refer to grain tank unloader auger for listing

1шт.

37

517645R11

COLLAR

ASSY, locking w/set screw

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd set

1шт.

38

171865C1

SHIELD ASSY, unloader drive pulley

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

475954R1

NUT

3/8 C-Z flange lock

1шт.

39

166870C1

SPACER, unloader electric clutch

1шт.

40

173811C1

ANGLE, unloader drive belt tightener draw bolt, serial no. 898 and above

1шт.
