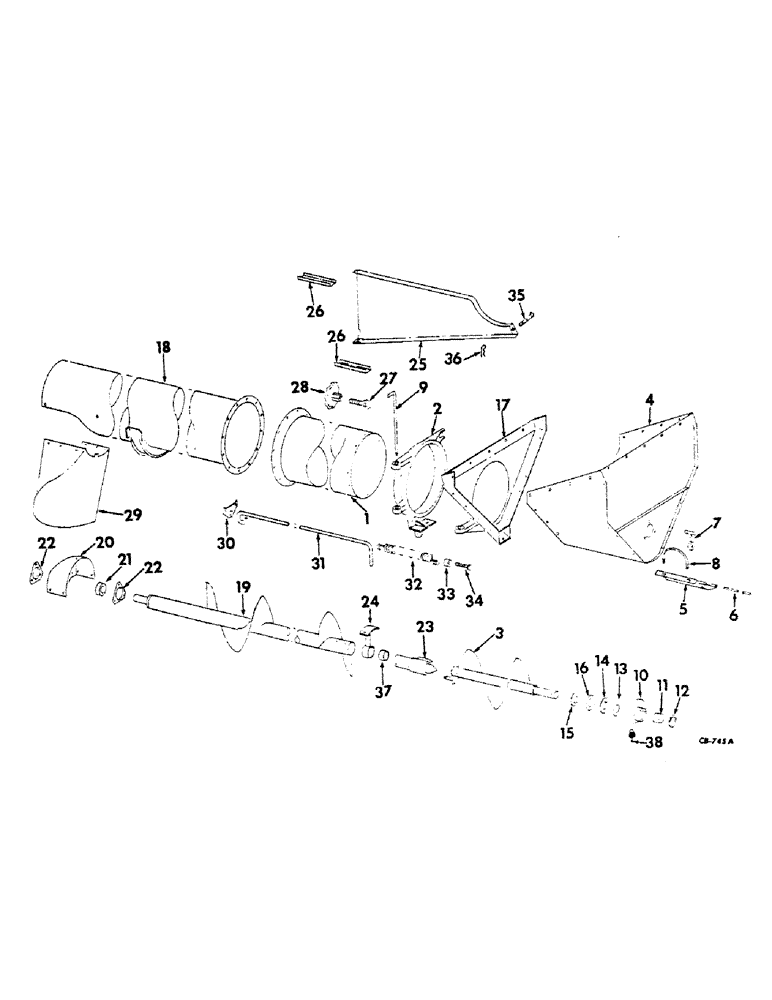

Запчасти Case IH 914 (26-09) - GRAIN TANK, GRAIN TANK UNLOADER AUGER AND TUBE Grain Tank

1

169768C91

TUBE ASSY, unloader lower auger

1шт.

2

169770C1

HINGE, unloader lower auger tube

1шт.

3

169771C1

AUGER

ASSY, unloader lower

1шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

1шт.

4

169775C1

TROUGH ASSY, unloader lower auger

1шт.

20816R1

BOLT, 3/8 x 1/2 C-Z sq-nk crg

22шт.

120377

NUT,3/8" - 16, Gr 5

22шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

22шт.

5

169780C1

DOOR ASSY, unloader auger trough

1шт.

6

54070D

ROD

PIN, unloader lower auger door hinge

1шт.

7

155909C1

LATCH

unloader lower auger door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 std. hd.

1шт.

8

155900C1

BOLT,1/4" - 20 x 4.24" W x 1.12" L

unloader lower auger door latch

1шт.

19592R1

HARDWARE,1/4"-20, GB

NUT, 1/4-20 ESNA stop

2шт.

9

587686R1

ROD, unloader lower auger tube hinge

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

10

160114C91

HUB

ASSY, unloader lower auger brg, includes ref nos 11 and 12

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

11

466509R91

BEARING ASSY

ASSY, unloader lower aug hub

1шт.

12

697494R91

OIL SEAL

SEAL, unloader lower auger brg oil

1шт.

13

368372R91

THRUST BEARING

unloader lower auger thrust

1шт.

14

864982R1

THRUST WASHER,1.012" ID x 1.552" OD x 0.93"

unloader lower auger thrust

2шт.

15

U14764

WASHER

unloader lower auger brg cup

1шт.

16

21127R1

WASHER

unloader lower auger felt

1шт.

17

169783C1

HINGE, unloader tube inner

1шт.

475954R1

NUT

3/8 C-Z flange lock

16шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt-truss-hd

16шт.

18

169784C1

TUBE ASSY, unloader upper auger

1шт.

475954R1

NUT

3/8 C-Z flange lock

12шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt-tr-hd

12шт.

19

169787C1

AUGER ASSY, loader upper

1шт.

20

584267R1

SUPPORT

BRACKET, unloader auger upper brg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-tr-hd

3шт.

21

155264C91

BALL BEARING,25.43mm ID x 52.09mm OD x 16mm W

unloader auger upper ball

1шт.

22

571424R1

FLANGE

unloader auger upper brg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

23

629482R91

STUD

ASSY, unloader upper auger drive

1шт.

18758R1

BOLT, 3/8 x 3 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21750R1

WASHER

1-29/32 x 2-1/2 x 16 ga C-Z

2шт.

24

629478R92

BRACKET

SUPPORT ASSY, unloader upper auger lower brg, includes ref no 38

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

25

169789R1

SUPPORT ASSY, unloader tube transport chain tightener

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

177923R1

PIN, 1/8 x 3/4 C-Z cotter

1шт.

Q1331

HEADED PIN,3/8" x 2"

PIN, 3/8 x 2 std-hd dld

1шт.

22073R1

PIN, 1/2 x 7/8 C-Z std-hd 1/2" x 7/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

16038R1

WASHER

17/32 x 1 x 11 ga

1шт.

21903R1

WASHER

17/32 x 3/4 x 16 ga C-Z

2шт.

26

169792C1

ANGLE, unloader tube transport support upper

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

27

159355C1

BOLT,1/2" - 13 x 3"

unloader tube locking eye

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 C-Z std-hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

17837R1

WASHER, 17/32 x 1-1/4 x 16 ga C-Z

1шт.

28

169794C1

NUT

unloader tube locking bolt hand

1шт.

29

169795C1

SPOUT, unloader tube

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-tr-hd

6шт.

30

169796C1

BRACKET, unloader tube rod

1шт.

31

169797C1

ROD, unloader tube

1шт.

32

PO181

SPRING, unloader swing

1шт.

33

PO2315

PLUG

unloader swing spring

1шт.

34

570640R1

BOLT (SPREADER),Adj, Hex, 1/2" - 13 x 4", Full Thd

BOLT, unloader swing spring

1шт.

35

171842C1

PIN, unloader tube transport

1шт.

36

586591R1

COTTER PIN

PIN, quick attachable

1шт.

37

629481R1

BEARING

BUSHING, unloader upper auger lower

1шт.

38

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.
