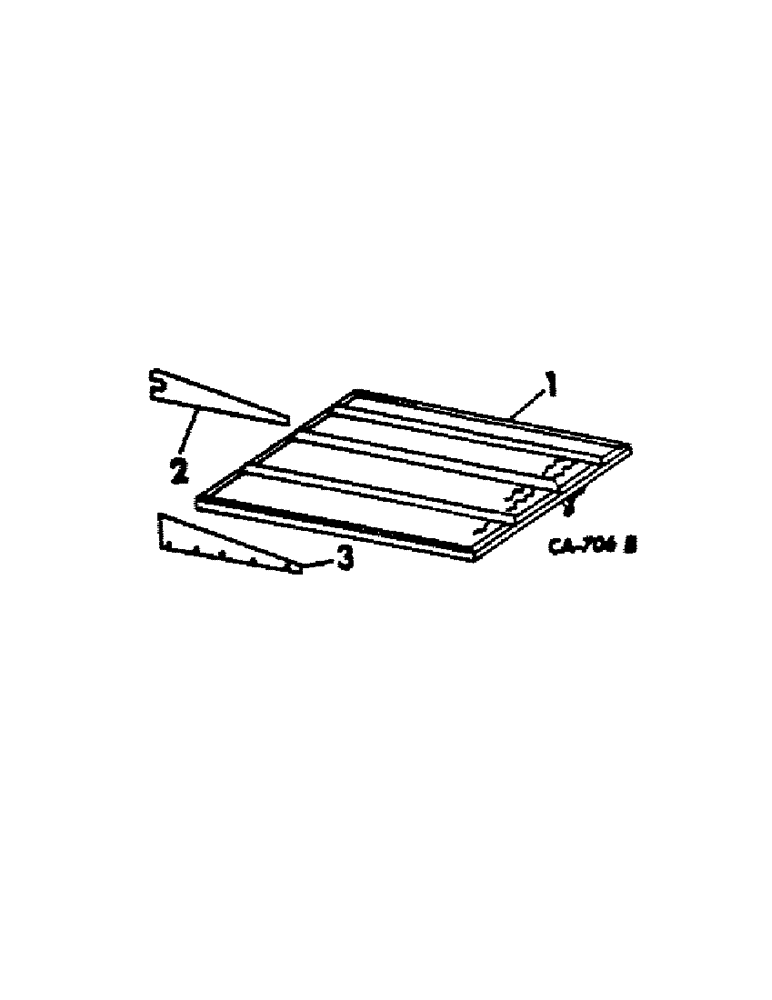

Запчасти Case IH 914 (23-11) - GRAIN PAN SHOE AND SHOE SIEVE, CHAFFER SIEVE AND DIVIDER Grain Pan, Shoe & Shoe Sieve

1

169877C1

SIEVE

ASSY, chaffer 1-1/8 adj, serial no. 1439 and below

1шт.

1

172839C1

SIEVE

ASSY, chaffer 1-1/8 adj, serial no. 1440 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

2

170603C1

DIVIDER, chaffer sieve, optional, serial no. 1439 and below

3шт.

3

175190C1

DIVIDER

chaffer, optional, serial no. 1440 and above

3шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 znd slt-pan-hd mach

21шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

21шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

21шт.
