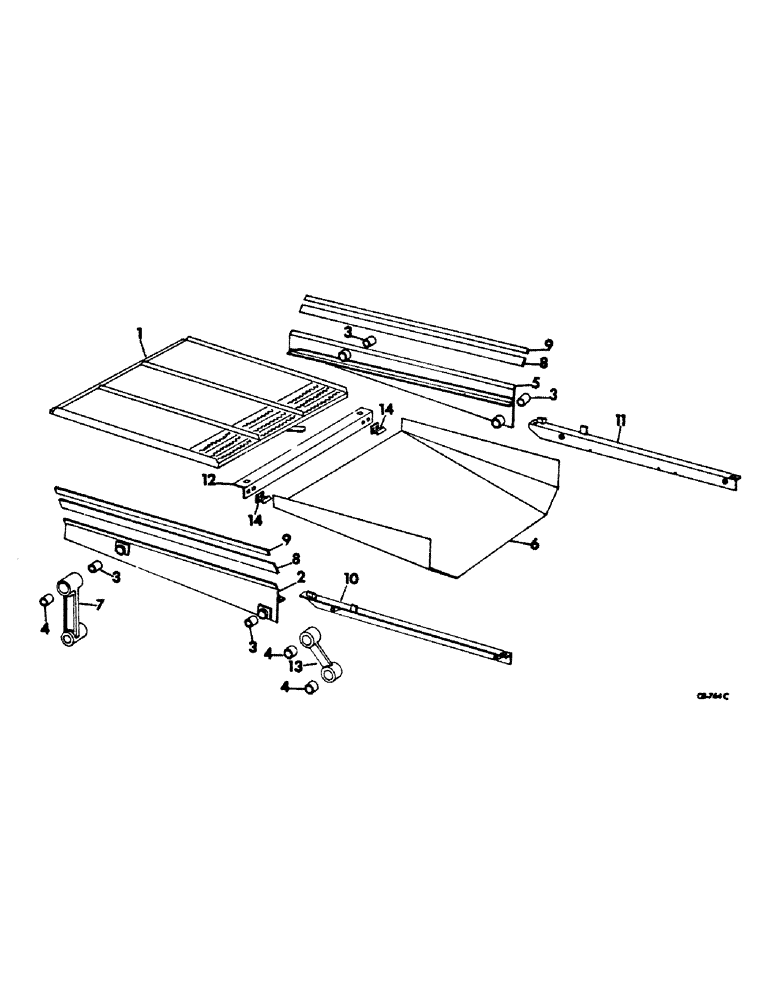

Запчасти Case IH 914 (23-10) - GRAIN PAN SHOE AND SHOE SIEVE, SHOE AND SHOE SIEVE Grain Pan, Shoe & Shoe Sieve

1

169682C91

SIEVE ASSY, shoe, serial no. 1439 and below

1шт.

1

172870C1

SIEVE

ASSY, shoe, serial no. 1440 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

169683C91

SUPPORT ASSY, shoe left side, includes ref nos. 3, 8 & 9, serial no. 1439 and below

1шт.

3

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, shoe side, serial no. 1439 and below

4шт.

4

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, shoe hanger arm, 2 used serial no. 1439 & below, 4 used serial no. 1440 & above

1шт.

5

169684C91

SUPPORT ASSY, shoe right side, includes ref nos. 3, 8 & 9, serial no. 1439 and below

1шт.

6

169689C2

BOTTOM ASSY, shoe, serial no. 1439 and below

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

175157C1

BOTTOM ASSY, shoe, serial no. 1440 and above

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 C-Z hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

7

170515C11

ARM W/BUSHING, shoe hanger front, includes ref no 4, serial no. 1439 and below

2шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 znd sq-nk crg

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

2шт.

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8 C-Z slt hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

160084C1

SCREW, 5/8 x 4-1/4 C-Z hex-hd cap dld type 4

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

8

172962C1

SEAL

shoe side, serial no. 1439 and below

2шт.

8

175181C1

SEAL

shoe side, serial no. 1440 and above

2шт.

9

172963C1

BAR, shoe side seal, serial lno. 1439 and below

2шт.

174448C1

RIVET, 5/32 x 1/2 pop, serial no. 1439 and below

11шт.

9

175182C1

BAR

shoe sieve seal, serial no. 1440 and above

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-tr-hd

16шт.

937016

NUT, 1/4 C-Z flange whiz lock

16шт.

10

175143C1

SUPPORT

ASSY, shoe left side, serial no. 1440 and above

1шт.

11

175144C1

SUPPORT

ASSY, shoe right side, serial no. 1440 and above

1шт.

12

175149C1

ANGLE

shoe front, serial no. 1440 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

175160C91

LEVER

ARM W/BUSHING, shoe hanger front, includes ref. no. 4, serial no. 1440 and above

2шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

SCREW, 5/8 x 4-1/2 C-Z hex-hd cap

2шт.

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT, 5/8 x 3-1/4 znd sq-nk crg

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

169256C1

DISC

WASHER, shoe hanger arm bushing 5/8 x 1-1/4 x 18 ga C-Z

10шт.

14

172868C1

CLIP

front shoe support, serial no. 1440 and above

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
